1
Engine displacement
500
2
Year
2003
3
Trim
500 CLASSIC TOURING
4
Parts Catalog
HOOD
5
Parts Diagram
Parts Catalog
NOSEPAN
by
BRAKE
HOOD
20
21
22
23
24
25
26
27
28
29
30
20
20
21
21
21
22
22
23
24
25
26
27
28
29
30
1
MOUNT WELD H/L
1011944067
Not Available
2
BOLT
7515107
9999999
Not Available
3
SPEED NUT
7670057
$2,09 Unit Price incl. VAT
4
H/L ASM;3-BULB
2431008
9999999
Not Available
5
37W BULB
4030048
$47,24 Unit Price incl. VAT
6
HEADLIGHT BULB
2870448
$36,74 Unit Price incl. VAT
7
LENS RH CLR.REFLECTOR
5431856
9999999
Not Available
7
LENS LH CLR.REFLECTOR
5431855
9999999
Not Available
8
ASM-MIRROR LH
2632353
9999999
Not Available
8
ASM-MIRROR RH
2632354
9999999
Not Available
8
WASHER FLAT
7556088
$9,44 Unit Price incl. VAT
8
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT
9
CLIP ROSEBUD GRAY
7080886
9999999
Not Available
10
SCREW
7511953
9999999
Not Available
11
ASM-HOOD HYB SVC BASIC CHMP
2632228370
Not Available
12
U TYPE CLIP
7670040
$7,34 Unit Price incl. VAT
13
BOLT TEE ADJUSTER 2.25
7517746
$36,74 Unit Price incl. VAT
14
SPRING H/L.ADJ.
7041308
$6,29 Unit Price incl. VAT
15
FOAM-HEADLIGHT SEAL W/PSA
5811687
9999999
Not Available
16
KNOB HEADLIGHT ADJUST LOCKINGB
7080887
$10,49 Unit Price incl. VAT
17
UPPER RIGHT HINGE
1012751
9999999
Not Available
17
HINGE; LEFT; UPPER
1012750
9999999
Not Available
18
PLATE-BOLT
5242948
9999999
Not Available
19
BOLT
7515184
9999999
Not Available
20
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
21
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
22
HINGE PLATE; LOWER
5244395
9999999
Not Available
23
BRACE HOOD UPPER
5242945
9999999
Not Available
24
BRACE HOOD LOWER
5242946
9999999
Not Available
25
RIVET
7661637
$2,09 Unit Price incl. VAT
26
SPRING-EXT.
7041732
$13,64 Unit Price incl. VAT
27
SPRING-ATTACHMENT RING(10)
7041760
$11,54 Unit Price incl. VAT
28
CLAMP RETAINER
7080372
$7,34 Unit Price incl. VAT
29
SCREW .75
7517441
$4,19 Unit Price incl. VAT
30
SCREEN FRONT HYB
5432931
$73,49 Unit Price incl. VAT

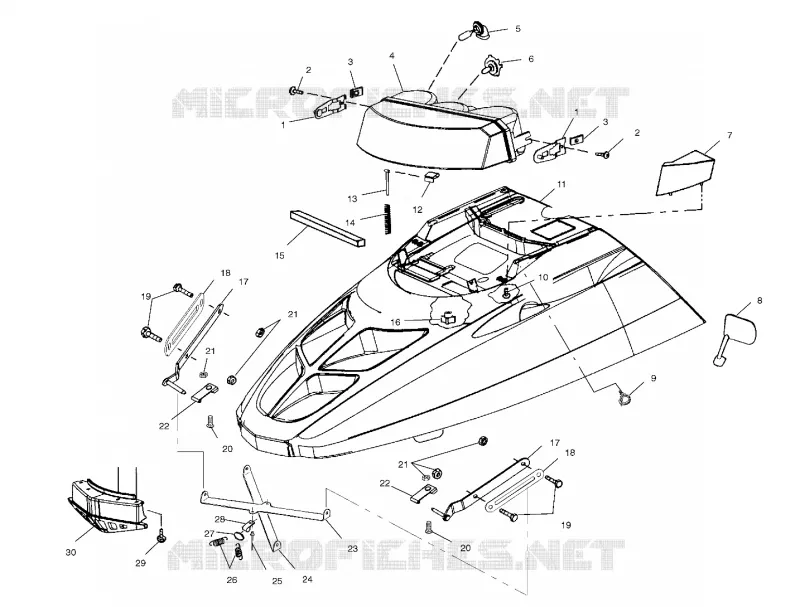

Find the detailed HOOD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
