Engine displacement
500
2
Year
2004
3
Trim
A04BG50AA SCRAMBLER 500 4X4 - A04BG50AA/FA
4
Parts Catalog
REAR HOUSING
5
Parts Diagram
Parts Catalog
REAR WHEEL
by
AIR BOX
REAR HOUSING
1
1
2
2
3
3
4
4
5
5
6
7
7
8
9
10
11
11
12
12
13
13
14
14
15
16
17
18
19
20
21
22
23
24
25
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
9
10
11
12
12
13
14
15
1
RETAINING RING
7710472
$10,49 Unit Price incl. VAT
2
EXTRUSION RETAINER NUT
5510313
9999999
Not Available
3
NUT-1.297-18 THD-Y
7547196
9999999
Not Available
4
SEAL FOAM
5411555
9999999
Not Available
5
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
6
DISC BRK 7.00 OD .188 THK
5243678
9999999
Not Available
7
STUD 3/8-24 X 1.12
7515513
9999999
Not Available
8
HUB ASMBRK.DISCLOCKING
1520259
9999999
Not Available
9
SNAP RING
7710405
9999999
Not Available
10
SPACER AXLE
5010462
9999999
Not Available
11
O RING
5410889
9999999
Not Available
12
LIP SEAL
3610070
$31,49 Unit Price incl. VAT
13
TAPERED BEARING CONE
3554518
$68,24 Unit Price incl. VAT
14
TAPERED BEARING CUP
3554517
$27,29 Unit Price incl. VAT
15
HOUSING AXLE REAR
5132098
9999999
Not Available
16
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
17
LINK-CONNECTOR PRESS 520 ORD2
3225028
3221192
$62,99 Unit Price incl. VAT
18
AXLE REAR CDS
5133181
9999999
Not Available
19
GUARD 38T SPKT BLK.ALUM.
5211585067
Not Available
20
NUT
7547108
$9,44 Unit Price incl. VAT
21
CHAIN-520 ORD2ORING76 PITCH
3221151076
Not Available
22
BOLT
7512404
$7,34 Unit Price incl. VAT
23
SPROCKET ASSEMBLY; HUB; LOCKING
1520258
$204,74 Unit Price incl. VAT
24
SPROCKET; 36T
3222109
9999999
Not Available
25
SPACER-SPROCKET GUARD
5630586
9999999
Not Available

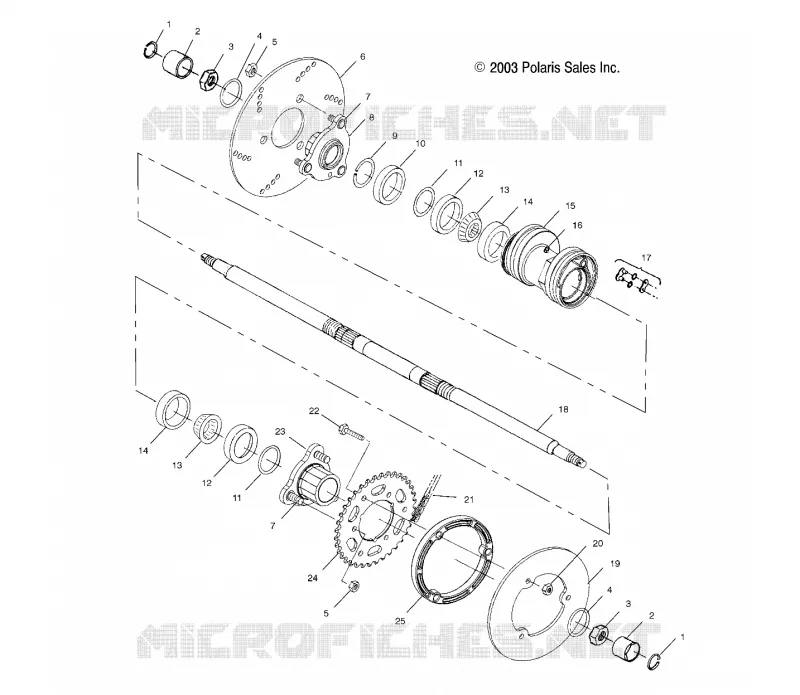

Find the detailed REAR HOUSING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
