1
Engine displacement
autre
2
Year
1992
3
Trim
SWE TRAIL DELUXE - S920262
4
Parts Catalog
CARBURETOR TRAIL (4921272127043A)
5
Parts Diagram
Parts Catalog
BLOWER HOUSING/RECOIL STARTER TRAIL (4921272127042A)
by
HITCH ASSEMBLY Swedish Snowmobiles (4922482248006A)
CARBURETOR TRAIL (4921272127043A)
1
1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
1
1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
1
1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
1
CARB ASM. Substituted by 3130395 (Incl. 2-29)(TRAIL)
3130364
Not Available
2
TOP ASSEMBLY; MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
SPRING THROTTLE
3130318
9999999
Not Available
5
THROTTLE PLATE
3130027
$19,94 Unit Price incl. VAT
6
E RING
3130003
3130508
$12,59 Unit Price incl. VAT
7
JET NEEDLE
3130329
9999999
Not Available
8
THROTTLE VALVE; 3.0
3130372
$104,99 Unit Price incl. VAT
9
NEEDLE JET
3130421
Not Available
10
GUIDE HOLDER
3130199
$52,49 Unit Price incl. VAT
11
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
12
PLUNGER ASSEMBLY
3130328
$68,24 Unit Price incl. VAT
13
SCREW THROTTLE STOP
3130009
9999999
Not Available
14
SPRING
3130010
$18,89 Unit Price incl. VAT
15
AIR SCREW
3130011
$36,74 Unit Price incl. VAT
16
SPRING AIR ADJUST
3130012
9999999
Not Available
17
JET PILOT #35(10)
3130066
9999999
Not Available
18
VALVE NEEDLE
3130016
3131146
$99,74 Unit Price incl. VAT
19
NEEDLE VALVE PACKING
3130017
$7,34 Unit Price incl. VAT
20
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
21
PIN; FLOAT
3130235
3130361
$18,89 Unit Price incl. VAT
22
FLOAT CHAMBER GASKET
3130020
$31,49 Unit Price incl. VAT
23
FLOAT ASSEMBLY
3130430
$73,49 Unit Price incl. VAT
24
CAP
3130237
$8,39 Unit Price incl. VAT
25
O-RING
3130239
9999999
Not Available
26
FITTING SEDIMENT
5020476
9999999
Not Available
27
HEX HEAD MAIN JET
3130126
9999999
Not Available
28
ASM. SCREW & WASHER(10)
3130025
$6,29 Unit Price incl. VAT
29
WASHER
3130014
$3,14 Unit Price incl. VAT

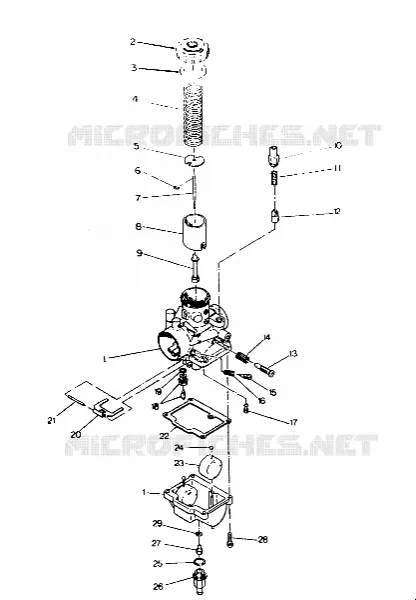

Find the detailed CARBURETOR TRAIL (4921272127043A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
