FRONT STRUT ASSEMBLY 4X4 350L W938139 (4924052405014A)
5
Parts Diagram
Parts Catalog
CV JOINT 4X4 350L W938139 (4924052405013A)
by
FRONT WHEEL ASSEMBLY 4X4 350L / W938139 (4924052405015A)
FRONT STRUT ASSEMBLY 4X4 350L W938139 (4924052405014A)
1
2
3
4
5
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
3
4
5
5
5
6
7
8
9
10
11
11
12
12
13
14
15
15
15
15
16
17
17
17
17
18
19
20
21
22
23
24
25
26
27
28
1
2
3
4
5
5
5
6
7
8
9
10
11
11
12
12
13
14
15
15
15
15
16
17
17
17
17
18
19
20
21
22
23
24
25
26
27
28
1
SCREW&WASHER ASM.(10)
3083736
9999999
Not Available
1
BUMPER RUBBER
5410429
9999999
Not Available
2
STATOR #1
3084211
Not Available
2
SHOCK FR.STRUT
7041211
9999999
Not Available
3
SCREW&WASHER
3083774
9999999
Not Available
3
WASHER
5211115
$7,34 Unit Price incl. VAT
4
CLAMP
7080347
7080573
$13,64 Unit Price incl. VAT
4
WASHER
3083357
9999999
Not Available
5
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
5
SCREW
3082366
Not Available
6
PLATE ASM.
3084218
9999999
Not Available
6
NUT FLEX-LOC
7542303
9999999
Not Available
6
PLATE COIL
3084209
Not Available
7
CAP SCREW
7512365
$2,09 Unit Price incl. VAT
7
CLAMP
3081296
9999999
Not Available
8
ASM. SCREW&WASHER(10)
3081260
9999999
Not Available
8
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
9
COUPLER
3083909
9999999
Not Available
9
RETAINER WIRE STRUT CAST
5810439
9999999
Not Available
10
HARNESS WIRE
3084219
Not Available
10
CALIPER ASMRH BRAKE
1910075
9999999
Not Available
11
GROMMET
3084212
Not Available
11
TAPER ROLL CONE BEARING
3554506
$54,59 Unit Price incl. VAT
12
COIL EXCITING
3083422
9999999
Not Available
12
TAPER ROLL CUP BEARING
3554507
$54,59 Unit Price incl. VAT
13
HUBSTRUT SEAL SLEEVE
5222193
$120,74 Unit Price incl. VAT
13
ASM. SCREW & WASHER
3083423
9999999
Not Available
14
FLYWHEEL W/RING GEAR
3084207
9999999
Not Available
14
MAGNETIC COIL
4170003
9999999
Not Available
15
HUB STRUT ASM LH (Incl. 6 18 20 23 24)
1843033
Not Available
15
HUB STRUT ASM RH (Incl. 6 18 20 23 24)
1843034
Not Available
15
RESISTOR PLUG CAP
4020129
4083595
$52,49 Unit Price incl. VAT
16
COIL IGNITION
3083923
9999999
Not Available
16
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
17
SUPPORT RH HUB STRUT [No Longer Available]
5130703
Not Available
17
SUPPORT LH HUB STRUT [No Longer Available]
5130702
Not Available
17
CDI UNIT
3084213
9999999
Not Available
18
SPRING COIL FR.SHOCK
7041238067
Not Available
18
SWITCH-MAGNETIC
3083211
4011335
$115,49 Unit Price incl. VAT
19
RETAINER SPRING TOP
5220602
9999999
Not Available
20
PIVOT BALL;BOTTOM
5430807
5432871
$19,94 Unit Price incl. VAT
21
THREADED SPACER
5130668
$52,49 Unit Price incl. VAT
22
BOLT
7515339
$9,44 Unit Price incl. VAT
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
HUB STRUT SEAL
3610028
$57,74 Unit Price incl. VAT
25
PIVOT BALL; TOP
5430806
5432872
$19,94 Unit Price incl. VAT
26
SPACER RUBBER
5810291
$7,34 Unit Price incl. VAT
27
WASHER
7555749
$2,09 Unit Price incl. VAT
28
FLEX LOC NUT
7542507
9999999
Not Available

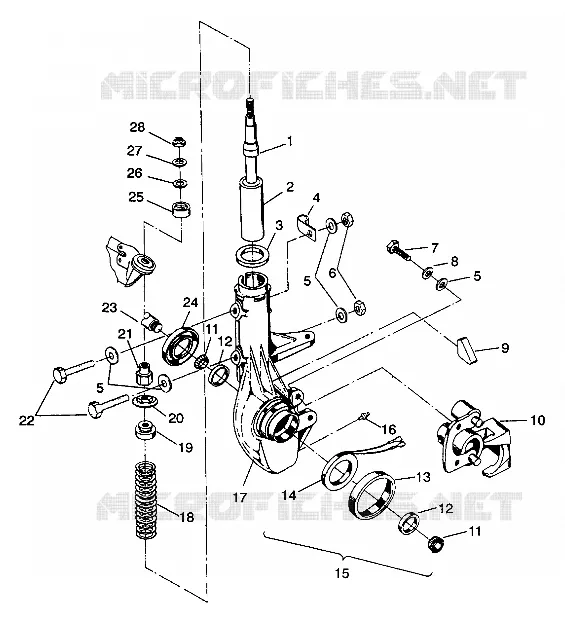

Find the detailed FRONT STRUT ASSEMBLY 4X4 350L W938139 (4924052405014A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
