REAR BRAKE XPRESS 300 W969530 AND XPRESS 400 W969540 (4935923592C010) for POLARIS XPRESS 400 - W969540 from 1996

REAR BRAKE XPRESS 300 W969530 AND XPRESS 400 W969540 (4935923592C010)

1

ARM BRAKE CALIPER

5211692

9999999

Not Available

2

BLEEDER SCREW

7080352

$5,76 Unit Price incl. VAT

3

PIN DOWEL

7661820

9999999

Not Available

4

CALIPER R.BRAKE MACH

5131272

9990005

Not Available

5

REAR SEVERE DUTY BRAKE PAD KIT

2200899

9999999

Not Available

6

PISTON SEAL KIT

2200463

$167,99 Unit Price incl. VAT

7

RING MOLDED

5410766

$20,99 Unit Price incl. VAT

8

RING; SQUARE;(1DIAM.)

5410767

2200463

$167,99 Unit Price incl. VAT

9

SUBSTITUTED BY 2200463

5020667

$167,99 Unit Price incl. VAT

10

SPRINGANTI-RATTLE

5240993

9999999

Not Available

11

O RING-.364X.504X.07

5410542

5411432

$9,44 Unit Price incl. VAT

12

SPRING BRAKE COMP.

7041219

9999999

Not Available

13

PIN BRAKE CALIPER

5020666

9999999

Not Available

14

BRAKE GASKET

5830009

9999999

Not Available

15

RAMP MOVEABLE BRAKE

5630458

9990000

Not Available

16

RAMP; STAT.BRAKE

5630457

9990000

Not Available

17

SCREW

7512173

9999999

Not Available

18

BRAKE SEAL

3610026

9999999

Not Available

19

ARM BRAKE CALIPER

5240624

9999999

Not Available

20

WASHER; SPRING

7555828

9999999

Not Available

21

NUT

7542129

9999999

Not Available

22

BOLT

7515145

9999999

Not Available

23

PIN-COTTER(10)

7661205

$1,56 Unit Price incl. VAT

24

WASHER

7555827

$7,34 Unit Price incl. VAT

25

ROD BRAKE

5241621

9999999

Not Available

25

ROD BRAKE

5241521

9999999

Not Available

26

BRAKE FOOT BLK

1040514067

Not Available

26

FOOTBRAKE BLK.

1910144067

Not Available

27

SPRING

7042029

$10,49 Unit Price incl. VAT

28

PEDAL PIVOT BUSHING

5431107

$16,79 Unit Price incl. VAT

29

WASHER

7555919

$7,34 Unit Price incl. VAT

30

COTTER PIN

7661401

$1,56 Unit Price incl. VAT

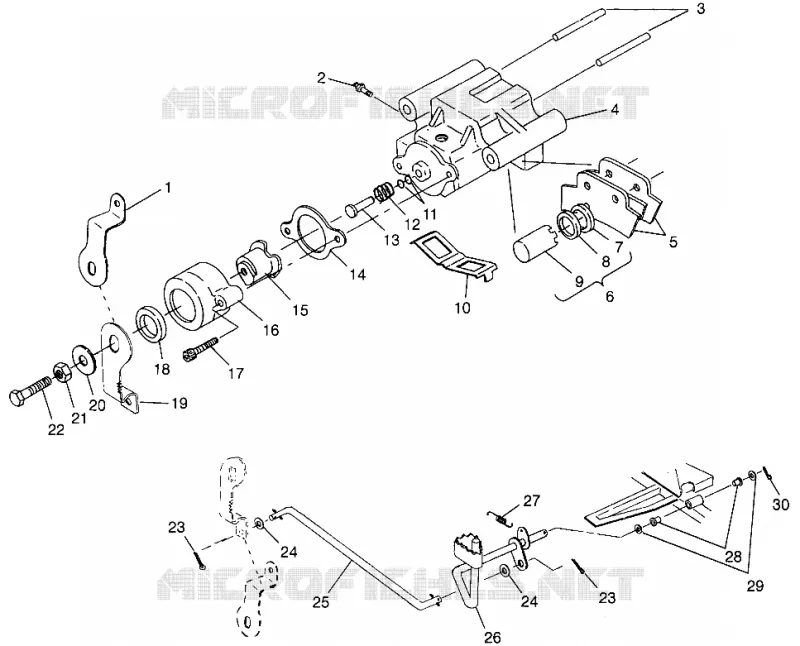

Find the detailed REAR BRAKE XPRESS 300 W969530 AND XPRESS 400 W969540 (4935923592C010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
