REAR SUSPENSION for POLARIS 650 INDY XCR 136 from 2022

REAR SUSPENSION

1

HEX FLANGE SCREW; 10 MM X 1.5 MM 35 MM

7518957

$6,29 Unit Price incl. VAT

2

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

3

WASHER 10.5 X 24 X 1.2446

7556545

$6,29 Unit Price incl. VAT

4

HEX FLANGE SCREW; 10 MM X 1.5 MM X 40

7519216

$9,44 Unit Price incl. VAT

5

WASHER

7556153

$3,66 Unit Price incl. VAT

6

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$11,54 Unit Price incl. VAT

7

SCR-TXBH-M10X1.5X45 8.8ZOD P30

7520323

$10,49 Unit Price incl. VAT

8

SPRING WASHER; .406 X 1.25 X .125

7556490

$9,44 Unit Price incl. VAT

9

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

9

WHEEL SPOKE ASSEMBLY; 7.25

1590459

$82,94 Unit Price incl. VAT

9

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

10

SPACER; IDLER

5432535

$20,99 Unit Price incl. VAT

11

SHAFT-IDLER M10X1.5THDX336 LG

5136745

$62,99 Unit Price incl. VAT

12

BUSHING

7555918

$3,14 Unit Price incl. VAT

13

SPACER IDLER CENTER

5333283

$27,29 Unit Price incl. VAT

14

BRACE-COUPLING XCR

5143854

$89,24 Unit Price incl. VAT

15

BUMPER-PIVOT ALUM

5142728

$54,59 Unit Price incl. VAT

16

HEX FLANGE SCREW 10MM X 1.25MM X 250MM

7519327

$36,74 Unit Price incl. VAT

17

CROSS SHAFT; MACHINED

5139172

$47,24 Unit Price incl. VAT

18

PIVOT ARM WELD; REAR; BLACK

1543905329

Not Available

19

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

20

CROSS SHAFT; RMK

5137418

$62,99 Unit Price incl. VAT

21

WELD-H-BRACKET ECOAT

1544014329

Not Available

22

SHAFT-H-BRKT CC AL

5140492

$68,24 Unit Price incl. VAT

23

WSHR-M10.5X25X2.4 ZPC

7556559

$6,29 Unit Price incl. VAT

24

SHAFT-LIMITER METRIC HD

5143149

$62,99 Unit Price incl. VAT

25

CLIP-TRACK FLAT 012-0107 (10

5251273

$18,89 Unit Price incl. VAT

25

TRACK 136 IN X 1.352 IN

5413655

$1 140,29 Unit Price incl. VAT

25

LONG GUIDE TRACK CLIP

5251274

$13,64 Unit Price incl. VAT

25

TRACK-15X136 1.25 ICE RIPPER

5417024

$1 125,59 Unit Price incl. VAT

25

TRACK-15X136 1.6 COBRA

5417776

$1 101,44 Unit Price incl. VAT

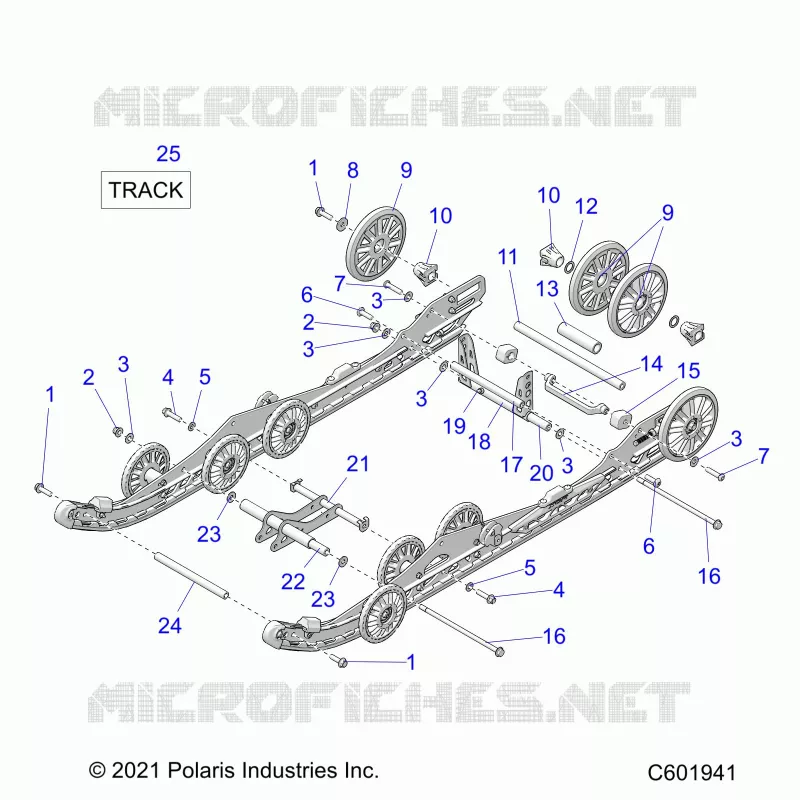

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
