Engine displacement
500
2
Year
1996
3
Trim
SPORTSMAN 500 - W969244
4
Parts Catalog

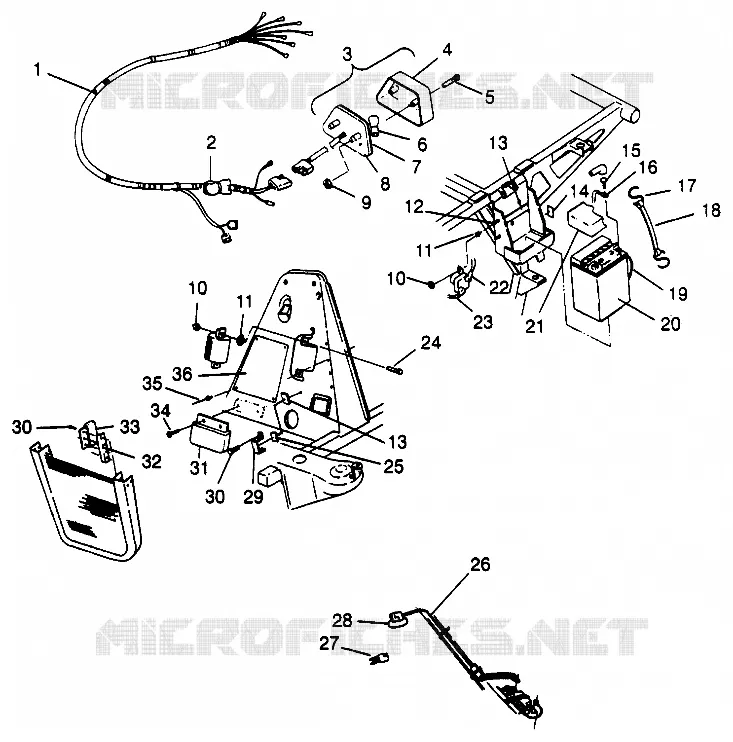

ELECTRICAL/TAILLIGHT SPORTSMAN 500 W969244 (4936093609C009)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH SPORTSMAN 500 W969244 (4936093609C003)
by
FRONT HOUSING SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609C010)
ELECTRICAL/TAILLIGHT SPORTSMAN 500 W969244 (4936093609C009)
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
36
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
36
1
HARNESS-MAIN WIRE
2460544
9999999
Not Available
2
KIT CKT.BRKR 20 AMP
2200593
$125,99 Unit Price incl. VAT
3
TAILLIGHT ASSEMBLY
2432034
9999999
Not Available
4
TAIL LIGHT LENS
4032046
$62,99 Unit Price incl. VAT
5
SCREW
4032029
$9,44 Unit Price incl. VAT
6
BULB (10)
4030043
$12,59 Unit Price incl. VAT
7
GASKET
4032045
$7,34 Unit Price incl. VAT
8
BACKING TAILLIGHT
4032064
9999999
Not Available
9
PUSH-ON NUT
7670054
$2,09 Unit Price incl. VAT
10
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
11
WASHER
7571602
$9,44 Unit Price incl. VAT
12
SCREW
7512027
$2,09 Unit Price incl. VAT
13
BATTERY PAD
5810290
5810290-CO
$13,64 Unit Price incl. VAT
14
DECAL BATTERY [No Longer Available]
7072606
Not Available
15
KIT-BATTERY BOLT (SHORT)
2200361
9999999
Not Available
16
CABLE BATT/ENG. BLK.
4010095
9999999
Not Available
17
BATTERY STRAP HOOK
7010032
9999999
Not Available
18
STRAP BATTERY HOLDDOWN
5410424
5418182
$9,44 Unit Price incl. VAT
19
VENT TUBE
5432077
9999999
Not Available
20
BATTERY; 195 COLD CRANK AMPS
4140006
$136,49 Unit Price incl. VAT
21
BATTERY COVER
5431769
$29,39 Unit Price incl. VAT
22
CABLE BATT/SOLENOID RED
4010094
9999999
Not Available
23
CABLE; SOL/STARTER
4010093
$89,24 Unit Price incl. VAT
24
BOLT
7512007
$7,34 Unit Price incl. VAT
25
TAPE FOAM
8360033
Not Available
26
CLAMP;BLK;5/16 PLASTIC
7080524
9999999
Not Available
27
PIGTAIL POWER
2460442
9999999
Not Available
28
POWER ASM12V
2410022
9999999
Not Available
29
BRACKET-CDI
5241416
9999999
Not Available
30
SCREW(10)
7512018
$6,29 Unit Price incl. VAT
31
LIMITER;RPM;LR83;HUB GROUND
4060135
9999999
Not Available
32
HEATSINK RECT.
5131036
9999999
Not Available
33
RECTIFIER LR-37
4060133
9999999
Not Available
34
SCREW
7512024
$9,44 Unit Price incl. VAT
35
RIVET (10)
7621336
$3,14 Unit Price incl. VAT
36
BOARD; TERMINAL
4040064
9999999
Not Available
