1
Engine displacement
300
2
Year
1996
3
Trim
XPLORER 300 - W969130
4
Parts Catalog
OIL PUMP XPLORER 300 W969130 (4935903590D004)
5
Parts Diagram
Parts Catalog
RECOIL STARTER XPLORER 300 W969130 (4935903590D003)
by
CABIN XPLORER 300 W969130 (4935903590A005)
OIL PUMP XPLORER 300 W969130 (4935903590D004)
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
17
17
18
19
20
20
20
20
20
20
20
20
20
21
1
1
2
3
4
5
5
6
7
7
8
8
9
9
9
1
BOLT
3084829
9999999
Not Available
2
GASKET; ALUMINUM
3083138
7555998
$2,09 Unit Price incl. VAT
3
VALVE CHECK
3084828
9999999
Not Available
4
CLAMP HOSE
3240173
9999999
Not Available
5
PIPE #1VINYL
3084826
9999999
Not Available
6
SCREW-AIR VENT
3083125
9999999
Not Available
7
PACKING(10)
3083126
9999999
Not Available
8
PUMP OIL Substituted by 3085848 (Incl. 3-7 10-16)
3084824
Not Available
9
CAP
3083758
9999999
Not Available
10
SPRING-RETURN
3083123
9999999
Not Available
11
COLLAR CAMSHAFT
3083757
9999999
Not Available
12
LEVER CONTROL
3084827
Not Available
13
WASHER-SPRING(10)
3083121
1205792
$614,24 Unit Price incl. VAT
14
NUT(10)
3083120
9999999
Not Available
15
ASM. SCREW & WASHER (10)
3083783
9999999
Not Available
16
SPACER
3083428
9999999
Not Available
17
GEAR SMALL
3083429
9999999
Not Available
17
GEAR SMALL
3084825
9999999
Not Available
18
O-RING
3083129
9999999
Not Available
19
BUSHING
3083353
9999999
Not Available
20
SPACER 3.6MM
3083673
5141621
$8,39 Unit Price incl. VAT
20
SPACER 2.3 MM
3083672
5141620
$6,29 Unit Price incl. VAT
20
SPACER 1.15MM
3083671
5141619
$6,29 Unit Price incl. VAT
21
O-RING
3083127
9999999
Not Available

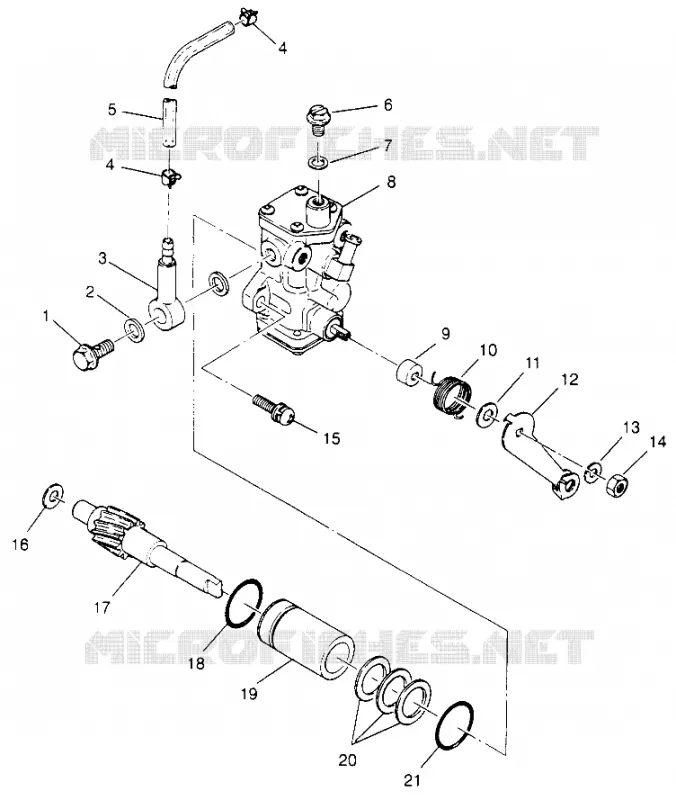

Find the detailed OIL PUMP XPLORER 300 W969130 (4935903590D004) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
