RANGER 4X4 700 EFI/XP ALL OPTIONS - R08RH68
4
Parts Catalog
BRAKES, PEDAL AND MASTER CYLINDER MOUNTING
5
Parts Diagram
Parts Catalog
BRAKES, LINES AND MASTER CYLINDER
by
PARKING BRAKE BRAKE ASM.
BRAKES, PEDAL AND MASTER CYLINDER MOUNTING
1
2
3
4
4
5
6
7
8
9
1
BOLT
7515319
$9,44 Unit Price incl. VAT
2
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
3
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
4
PEDAL PIVOT BUSHING
5433189
$7,34 Unit Price incl. VAT
5
BRAKE PEDAL BUSHING TUBE
5334030
9999999
Not Available
6
CLIP PIN; 14 MM
7661140
$2,09 Unit Price incl. VAT
7
WELD-BRAKE PEDAL;BLK
1016064
9999999
Not Available
8
CLEVIS PIN; 1/4 X 3/4
7661843
$4,19 Unit Price incl. VAT
9
SCREW
7515417
9999999
Not Available

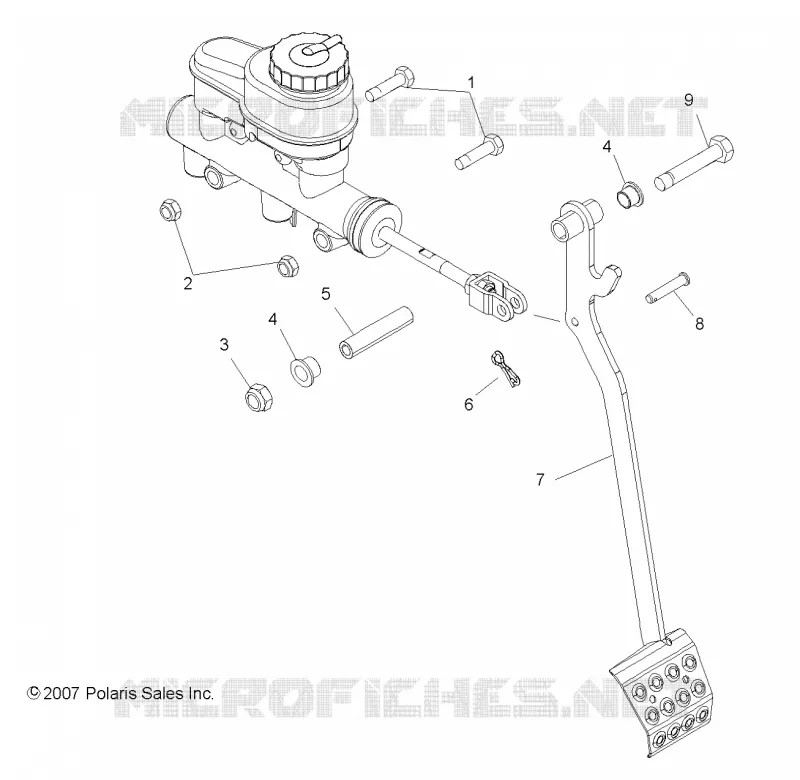

Find the detailed BRAKES, PEDAL AND MASTER CYLINDER MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
