WIRE HARNESS for POLARIS GENERAL 1000 EPS PREMIUM / DELUXE EDITION - EU / MD / TRACTOR from 2018

DRIVE TRAIN, REAR PROP SHAFT

ENGINE, AIR INTAKE MANIFOLD

WIRE HARNESS

1

HARNESS-CHASSIS WINCH TURF EU

2413868

Not Available

1

HARNESS-CHASSIS WINCH TURF TR

2414144

Not Available

2

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

3

FUSE PARK 20 AMP (10)

2434017

4012811

$15,74 Unit Price incl. VAT

4

LABEL FUSE BOX

7188347

Not Available

5

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

6

CLIP-ROUTING DIN BOX

7082020

$10,49 Unit Price incl. VAT

7

DIAGNOSTIC COVER WITH CLIP

4012170

4083556

$15,00 Unit Price incl. VAT

8

FUSE 10 AMP

2434016

$10,49 Unit Price incl. VAT

9

FUSE-MINI BLADE;15 AMP

2410280

4010859

$15,74 Unit Price incl. VAT

10

SINGLE POLE DOUBLE THROW RELAY

4011284

$68,24 Unit Price incl. VAT

11

GROMMET-65MM BLK

5813954

$13,64 Unit Price incl. VAT

12

FUSE 5 AMP

4011652

9999999

Not Available

13

LED-PANEL MNT;12V;BLUE

2413217

$99,74 Unit Price incl. VAT

14

FUSE 25 AMP

4011653

$16,79 Unit Price incl. VAT

15

FUSE BOX RELAY

4016819

$68,24 Unit Price incl. VAT

16

SCR-TFHFL-M6X1.0X25 ZOD

7519342

$3,14 Unit Price incl. VAT

17

COIL-EFI

4010425

2876049

$451,49 Unit Price incl. VAT

18

COIL GROUND JUMPER

4014422

$62,99 Unit Price incl. VAT

19

BRKT-COIL MOUNT

5260553

$31,49 Unit Price incl. VAT

20

COIL MOUNT SPACER

5436577

$7,34 Unit Price incl. VAT

21

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

22

HARNESS-CHASSIS ADAPTER ACCY

2413521

9999999

Not Available

23

SCR-M6X1.0X40 HX/SOC/CP-B

7518780

$7,34 Unit Price incl. VAT

24

NYLOCK FLANGE NUT; 6 MM

7547274

7548027

$3,14 Unit Price incl. VAT

25

3 POST TERMINAL BLOCK

4015778

$62,99 Unit Price incl. VAT

26

SCR-10-24X3/4 PH/TX/TRI-SEMS Y (10)

7518196

$2,09 Unit Price incl. VAT

27

NUTS-10-32 KEPS

7547341

$1,56 Unit Price incl. VAT

28

NO START ELECTRIC CONTROL MODULE (ECM)

4014125

$1 123,49 Unit Price incl. VAT

29

SCR-#10X1/2-HI/LO-PN-T25 TRX-M

7519091

$6,29 Unit Price incl. VAT

30

HARNESS-BOX TR

2413864

Not Available

31

SCREW

7512025

$9,44 Unit Price incl. VAT

32

RELAY SOLID STATE 9A

4012829

4081742

$141,74 Unit Price incl. VAT

33

SCR-PROWELD M6X1X35 0600111

7518924

9999999

Not Available

34

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

35

CAB ELECTRICAL GROMMET

5414440

$13,64 Unit Price incl. VAT

36

BKT; MOUNT; RELAY; INNER; BLK

5265227458

Not Available

36

BRKT-RELAY INNER MOUNT BLK

5267577458

Not Available

37

BKT; MOUNT; RELAY;OUTER; BLK

5265229458

Not Available

37

BRKT-RELAY OUTER MOUNT BLK

5267578458

Not Available

38

SCREW

7517704

$13,64 Unit Price incl. VAT

39

NYLOK NUT

7546703

$2,09 Unit Price incl. VAT

40

JUMPER TRAILER SOCKET CONNECT

4017417

Not Available

41

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

42

VOLTAGE REGULATOR

4016868

$246,74 Unit Price incl. VAT

43

SPEED SENSOR;WHEEL

4016870

Not Available

44

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

45

STRAP-PANDUIT DBL LOOP 260MM

7081916

$9,44 Unit Price incl. VAT

46

JUMPER P.SENSOR

4018150

Not Available

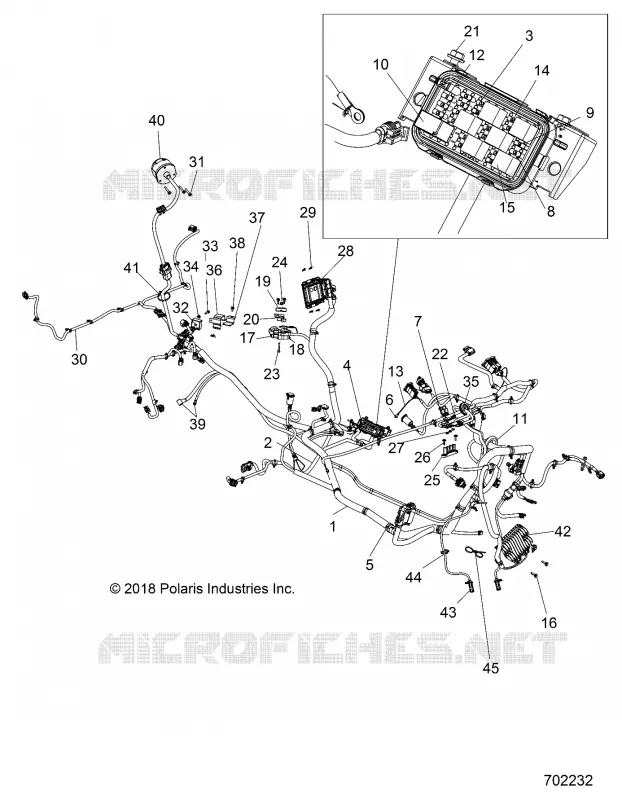

Find the detailed WIRE HARNESS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for GENERAL 1000 EPS PREMIUM / DELUXE EDITION - EU / MD / TRACTOR

TAILGATE

CENTER CONSOLE

DASHBOARD

DECALSS

BRAKES, PEDAL

REAR BRAKE CALIPER

CHASSIS, CAB

CHASSIS, HITCH

DRIVE TRAIN, SECONDARY CLUTCH

BATTERY

ELECTRICAL, INSTRUMENTS & CONTROLS

HEADLIGHTS AND TAILLIGHTS

OIL PUMP

STARTER

ENGINE, STATOR AND FLYWHEEL

THROTTLE BODY AND VALVE COVER

REAR SUSPENSION SHOCK MOUNTING

REAR SUSPENSION SHOCK MOUNTING

SUSPENSION, REAR STRUT STABILIZER

WHEELS, FRONT

BRAKE LINES AND MASTER CYLINDER

DRIVE TRAIN, FRONT HALF SHAFT

ACCESSORY, WINCH

BODYWORK

DOORS MOUNTING

FLOOR AND ROCKER

SEAT BELT MOUNTING

FRONT BRAKE CALIPER

DRIVE TRAIN, CLUTCH COVER AND DUCTING

DRIVE TRAIN, FRONT GEARCASE MOUNTING

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, REAR HALF SHAFT

ELECTRICAL COMPONENETS, LICENSE PLATE AND MIRRORS

ACCESSORY

FRONT BUMPER

REAR MIRROR

FUEL TANK

HOOD

REAR CLOSEOFF AND FENDERS

SEAT ASM. AND SLIDER

DRIVE TRAIN, FRONT HALF SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, MAIN GEARCASE INTERNALS

COOLING SYSTEM

ENGINE, CRANKSHAFT

CRANKCASE

CYLINDER AND PISTON

FRONT SUSPENSION CONTROL ARMS

FRONT SUSPENSION HUB

FRONT SUSPENSION SHOCK INTERNALS

FRONT SUSPENSION SHOCK MOUNTING

FRONT SUSPENSION SHOCK MOUNTING

ENGINE, AIR INTAKE SYSTEM

DIPSTICK & OIL FILTER

ENGINE, MOUNTING

THROTTLE PEDAL

OWNERS MANUAL AND TOOL KIT

FRONT SUSPENSION STABILIZER BAR- R18RGE99FM/EFB/SCM/SCB/SFM/CCM (700836)

REAR SUSPENSION CONTROL ARMS

DRIVE TRAIN, REAR HALF SHAFT

ACCESSORY

BODYWORK

DOORS

BODYWORK

SEAT ASM. AND 2ND SLIDER

BRAKE LINES AND MASTER CYLINDER

PARKING BRAKE BRAKE

CHASSIS, MAIN FRAME AND SKID PLATES

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, REAR PROP SHAFT

WIRE HARNESS

ENGINE, AIR INTAKE MANIFOLD

CAM CHAIN AND TENSIONER

CYLINDER HEAD AND VALVES

EXHAUST SYSTEM

ENGINE, WATERPUMP AND BYPASS

STEERING

REAR SUSPENSION CARRIER

REAR SUSPENSION SHOCK INTERNALS

WHEELS, REAR

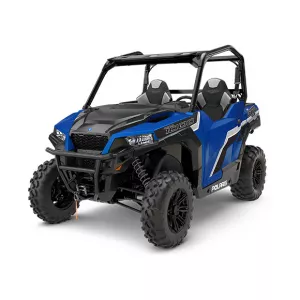

POLARIS GENERAL 1000 EPS PREMIUM / DELUXE EDITION - EU / MD / TRACTOR 2018
