FRONT WISHBONES for POLARIS 600 SWITCHBACK SP 144 from 2018

FRONT WISHBONES

1

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

2

SHAFT-PIVOT

5139521

5140556

$52,49 Unit Price incl. VAT

3

PIVOT BUSHING

5450297

$6,29 Unit Price incl. VAT

4

CONTROL ARM; UPPER; LEFT SIDE; MT BLK

1824171458

Not Available

4

CONTROL ARM; UPPER; RIGHT SIDE; MT BLK

1824172458

Not Available

5

RING-RET INT 1.125

7710642

$4,19 Unit Price incl. VAT

7

WASHER 7/16

7556212

$15,74 Unit Price incl. VAT

8

SPINDLE ASSEMBLY; LEFT

1823801

$314,99 Unit Price incl. VAT

8

SPINDLE ASSEMBLY; RIGHT

1823802

$314,99 Unit Price incl. VAT

9

NUT-HEX-M12X1.5 8 ZOD NYL

7547464

$6,29 Unit Price incl. VAT

10

BUSHING 15.88 X 10.13 X 76.20

5136910

$13,64 Unit Price incl. VAT

11

SKI PIVOT BUSHING

5438460

$27,29 Unit Price incl. VAT

12

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

13

FLAT WASHER

7555806

$1,56 Unit Price incl. VAT

14

SPHERICAL BEARING KIT; 10 MM

2204229

$54,59 Unit Price incl. VAT

15

RING-RETAINING 1.25 ID HSNG

7710539

$4,19 Unit Price incl. VAT

16

SCR-M10X1.5X75 10.9 HCS ZOD

7519015

$10,49 Unit Price incl. VAT

17

LEFT SIDE; LOWER CONTROL ARM; MT BLK

1824169458

Not Available

17

RIGHT SIDE; LOWER CONTROL ARM; MT BLK

1824170458

Not Available

18

CONTROL ARM PIVOT SHAFT; FRONT; LOWER

5139607

5140557

$52,49 Unit Price incl. VAT

19

HEX FLANGE SCREW; 10 MM X 1.5 MM X 95 MM

7518917

$9,44 Unit Price incl. VAT

20

WASHER 18.2 X 25 X 1.6

7556758

$6,29 Unit Price incl. VAT

21

SCREW 10 MMX 1.5 MM X 60 MM

7518941

$7,34 Unit Price incl. VAT

22

BUSHING 10 MM X 17.5 MM X 30

5137360

$7,34 Unit Price incl. VAT

23

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

24

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$12,59 Unit Price incl. VAT

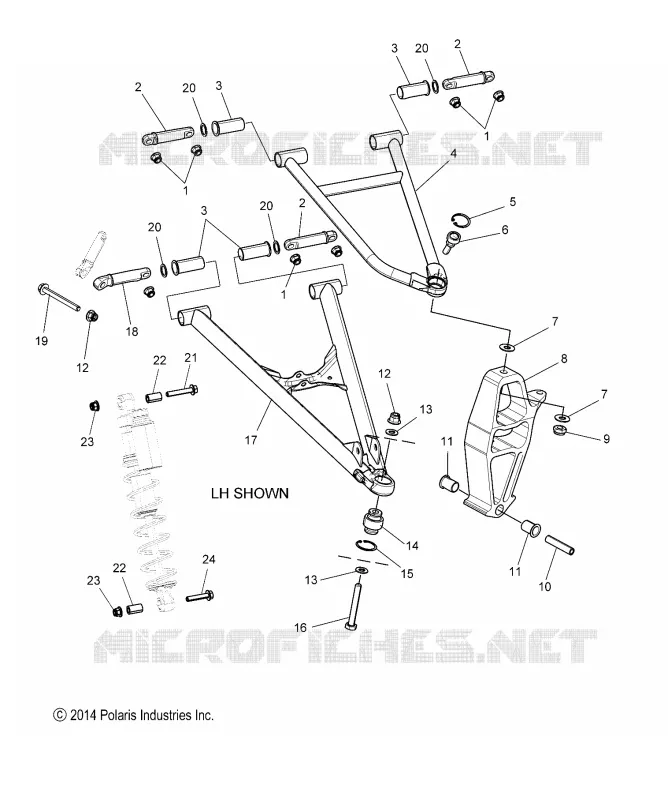

Find the detailed FRONT WISHBONES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
