1
Engine displacement
500
2
Year
1996
3
Trim
500 CARB SKS - 0962564
4
Parts Catalog
STEERING 500 CARB SKS 0962564, EUROPEAN 500 CARB SKS E962564 AND 500 CARB (4931873187B005)
5
Parts Diagram
Parts Catalog
DECALS 500 CARB 0962764, 500 CARB SKS 0962564, EUROPEAN 500 CARB SKS E96256 (4931873187A012)
by
IGNITION WIRE HARNESS 500 CARB 0962764, 500 CARB SKS 0962564, 500 CARB (4931873187B006)
STEERING 500 CARB SKS 0962564, EUROPEAN 500 CARB SKS E962564 AND 500 CARB (4931873187B005)
1
BOLT ;
7512239
7517377
$9,44 Unit Price incl. VAT
2
HOOP STEERING
1012335067
Not Available
3
CLIP
7080278
9999999
Not Available
4
NUT
7542124
7542122
$2,09 Unit Price incl. VAT
5
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
6
RIVET
7661637
$2,09 Unit Price incl. VAT
7
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
8
BOLT-CARRIAGE
7512275
9999999
Not Available
9
RIVET(50)
7621340
9999999
Not Available
10
ROD END;RH;3/8"HI-ANGLE
7060161
7060174
$99,74 Unit Price incl. VAT
10
ROD END;LH;3/8"HI-ANGLE
7060160
9999999
Not Available
11
NUT; FLEXLOC B
7542456
9999999
Not Available
12
NUT LH (10)
7542424
$1,56 Unit Price incl. VAT
12
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
13
PLATE BOOTSEAT BLK.
5211454067
Not Available
14
BOOT;LH;TIE-ROD
5410867
9999999
Not Available
15
TIEROD BLK. (SKS)
5020820067
Not Available
16
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
17
NUT LOCK
7542403
9999999
Not Available
18
BLOCK STRG (CAST)
5630563
9999999
Not Available
19
WASHER WAVE
7555735
$7,34 Unit Price incl. VAT
20
BOOT RH TIE-ROD
5410868
9999999
Not Available
21
PLATE RH BOOTSEAL BLK.
5211453067
Not Available
22
ROD END; RIGHT
7060165
$99,74 Unit Price incl. VAT
22
END ROD; LEFT
7060164
$99,74 Unit Price incl. VAT
23
ROD-DRAG LINK
5332712
9999999
Not Available
24
STRAP BLK
7080272
9999999
Not Available
25
POST STEERING
1822257067
Not Available
26
FITTING LUB/VEN
7080561
9999999
Not Available
27
SCREW
7512410
7515540
$9,44 Unit Price incl. VAT
28
NUT FLEXOC;
7542703
9999999
Not Available
29
WASHER
7555721
$2,09 Unit Price incl. VAT
30
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
31
BUSHING
3563907
$7,34 Unit Price incl. VAT
32
BUSHING
5010340
9999999
Not Available
33
BOLT
7512404
$7,34 Unit Price incl. VAT
34
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
35
STRG.ASMCTR.
1822286
9999999
Not Available
36
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT

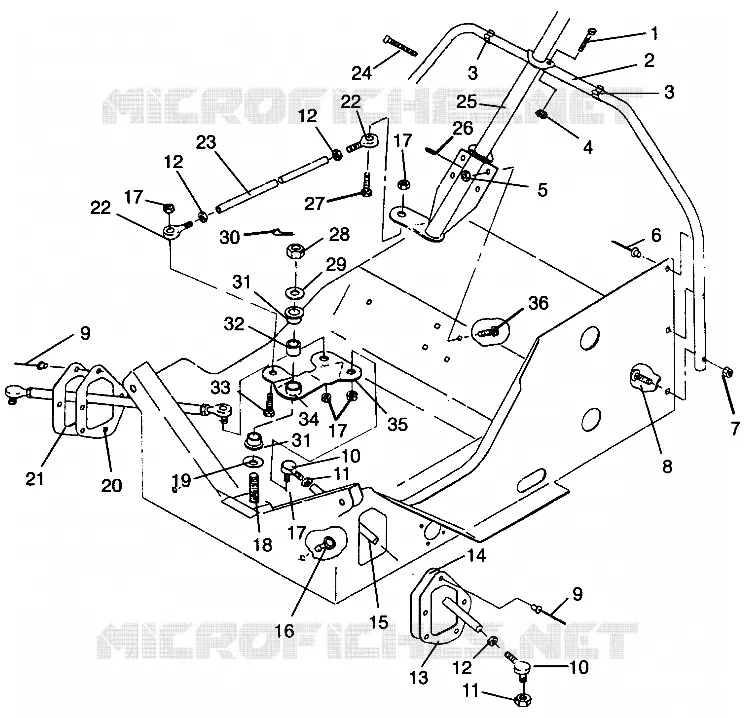

Find the detailed STEERING 500 CARB SKS 0962564, EUROPEAN 500 CARB SKS E962564 AND 500 CARB (4931873187B005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
