ENGINE, COOLING SYSTEM for POLARIS D16B3PD1AJ/B4 BRUTUS HD HDPTO (R03) - D16B4PD1AJ/B4 from 2016

ENGINE, CONNECTING ROD AND PISTON SET

ENGINE, FUEL INJECTION PUMP, DELIVERY PIPE

ENGINE, COOLING SYSTEM

1

SHROUD-RADIATOR CENTER BLK

5439647070

Not Available

2

CORE RADIATOR

1240690

$1 454,24 Unit Price incl. VAT

3

CAP

1240692

1240694

$73,49 Unit Price incl. VAT

4

OIL COOLER; HYD

1240723

9999999

Not Available

5

FAN SHROUD ASSEMBLY

2412474

$624,74 Unit Price incl. VAT

6

SHROUD-RADIATOR FRONT RH BLK

5439646070

Not Available

7

FITTING-8 37DEGX-8 ORING;90DEG

3120080

9999999

Not Available

8

VALVE-RADIATOR CORE DRAIN

7052557

9999999

Not Available

9

BOLT-M6X20MM

7519584

9999999

Not Available

10

U CLIP; 6.0 MM X 1.0 MM

7547366

$9,44 Unit Price incl. VAT

11

RADIATOR MOUNT BRACKET; LEFT; BLACK

5256596329

Not Available

12

RADIATOR MOUNT BRACKET; RIGHT; BLACK

5256597329

Not Available

13

GROMMET

7052028

$11,54 Unit Price incl. VAT

14

ENGINE HOSE BYPASS; DIESEL

5415078

$68,24 Unit Price incl. VAT

15

HOSE TUBE; LOWER

5414414

$68,24 Unit Price incl. VAT

16

COOLANT TUBE; 1 IN

5137818

$68,24 Unit Price incl. VAT

17

RADIATOR HOSE; UPPER

5414293

$83,99 Unit Price incl. VAT

18

HOSE-LOWER RAD

5414294

9999999

Not Available

19

ENGINE HOSE; DIESEL

5415076

$68,24 Unit Price incl. VAT

20

HOSE-ENG OUT DSL

5415454

9999999

Not Available

21

SPRINGBAND CLAMP; 35/12

7080844

$19,94 Unit Price incl. VAT

22

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

23

HOSE-LOWER RAD

5414415

9999999

Not Available

24

HOSE CLAMP; 25-40 MM

7081192

$14,69 Unit Price incl. VAT

25

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

26

TEE CONNECTOR; 1 X 1 X 0.5

7052530

$10,49 Unit Price incl. VAT

27

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

28

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

29

SURGE TANK

5439202

$178,49 Unit Price incl. VAT

30

GASKET

5810279

$4,19 Unit Price incl. VAT

31

SCREW #14 X 1 HI/LO

7518158

$9,44 Unit Price incl. VAT

32

CLIP

7670102

$4,19 Unit Price incl. VAT

33

FUEL LINE; 95 CM

845000395

Not Available

34

SHROUD-RADIATOR FRONT LH BLK

5439294070

Not Available

35

COOLANT TUBE BRACKET

5451221

$16,79 Unit Price incl. VAT

36

SCREW

7512026

$2,09 Unit Price incl. VAT

37

SCR-M6X1X40 TR/TX-M

7519001

$7,34 Unit Price incl. VAT

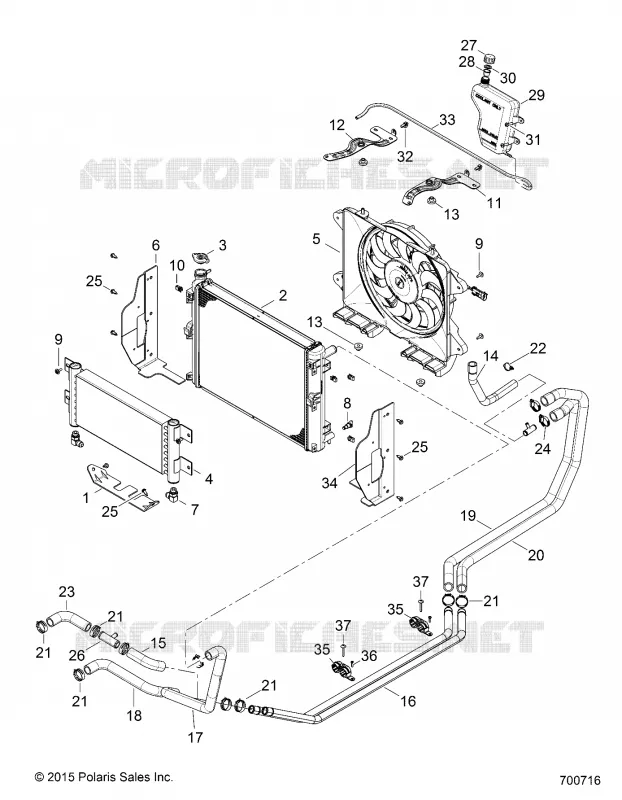

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
