Engine displacement
325
2
Year
2001
3
Trim
325 MAGNUM 4X4 HDS - A01CD32FB
4
Parts Catalog
SWING ARM/REAR GEARCASE MOUNTING
5
Parts Diagram
Parts Catalog
GEARCASE SELECTOR MOUNTING
by
SWING ARM/REAR/GEARCASE MOUNTING
SWING ARM/REAR GEARCASE MOUNTING
1
2
3
4
5
5
6
7
8
9
9
10
11
12
12
13
13
14
14
15
15
16
17
17
18
18
19
20
21
21
22
23
24
25
26
26
26
2
28
29
30
31
32
33
34
35
36
37
38
1
2
3
4
5
5
6
7
8
9
9
10
11
12
12
13
13
14
14
15
15
16
17
17
18
18
19
20
21
21
22
23
24
25
26
26
26
2
28
29
30
31
32
33
34
35
36
37
38
1
2
3
4
5
5
6
7
8
9
9
10
11
12
12
13
13
14
14
15
15
16
17
17
18
18
19
20
21
21
22
23
24
25
26
26
26
2
28
29
30
31
32
33
34
35
36
37
38
1
HUBBRAKE DISCMACH
5132152
9999999
Not Available
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
3
DOUBLE SEAL BALL BEARING
3513523
9999999
Not Available
4
SHIELD-BRAKE LINEREAR
5411653
9999999
Not Available
5
BOLT
7517604
9999999
Not Available
6
SCREW
7512084
$2,09 Unit Price incl. VAT
7
WASHER
7555721
$2,09 Unit Price incl. VAT
8
NUT FLEXOC;
7542703
9999999
Not Available
9
CAP SWINGARM PIVOT
5411532
9999999
Not Available
10
NUT JAM SWINGARMPIVOT
5131863
9999999
Not Available
11
SWINGARM PIVOT THREADED
5131864
9999999
Not Available
12
SEAL SWINGARM PIVOT
3610072
9999999
Not Available
13
TAPER ROLL CONE BEARING
3554506
$54,59 Unit Price incl. VAT
14
TAPER ROLL CUP BEARING
3554507
$54,59 Unit Price incl. VAT
15
SWINGARM SEAL PIVOT
5411602
9999999
Not Available
16
SWINGARMASM.
1541577
9999999
Not Available
17
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
17
PROP SHAFT COUPLING
5132201
9999999
Not Available
18
O-RING
5411092
$3,14 Unit Price incl. VAT
19
PROP SHAFT ASSEMBLY; REAR
1380137
$309,74 Unit Price incl. VAT
20
PIVOT-SWINGARM RH
5132683
9999999
Not Available
21
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
22
BOLT-1/2-13X1 1/4 HXHD GR5-Z
7517585
9999999
Not Available
23
AXLE; REAR
5131862
$430,49 Unit Price incl. VAT
24
RING RETAINING
7710482
9999999
Not Available
25
SCREW
7517612
9999999
Not Available
26
PLATE-SKID BLK
5242851067
Not Available
26
PAD-RUBBER
5811716
9999999
Not Available
26
ASM. SKID PLATE REAR
1012881
9999999
Not Available
27
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
28
O-RING
5411531
9999999
Not Available
29
COLLAR R.AXLE LOCK
5131930
Not Available
30
O-RING
5411707
9999999
Not Available
31
Decal Hitch
7078261
Not Available
32
SPRING PIN
7661913
$7,34 Unit Price incl. VAT
33
AXLE TUBEWELDLHBLK
1013193067
Not Available
34
BOLT
7515481
9999999
Not Available
35
INTERNAL RETAINING RING
7710471
9999999
Not Available
36
SPACER-BEARING
5132075
9999999
Not Available
37
AXLE SEAL; REAR
3610071
9999999
Not Available
38
DISC BRK 7.00 OD .188 THK
5243678
9999999
Not Available

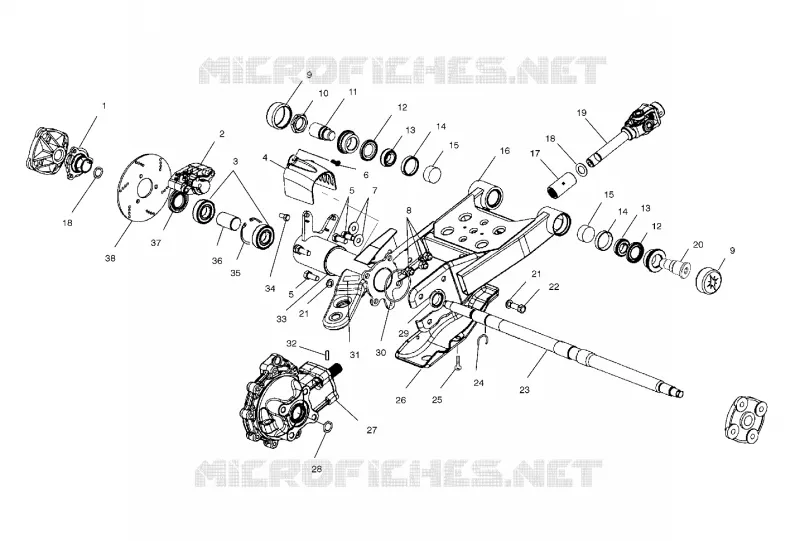

Find the detailed SWING ARM/REAR GEARCASE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
