COOLING SYSTEM for POLARIS RANGER 4X4 800 EFI ALL OPTIONS - R10TH76/TY76 from 2010

COOLING SYSTEM

1

CLAMP-HOSE 13/16 -1 1/2

7081174

$13,64 Unit Price incl. VAT

2

HOSE-1 IN ID RAD INLET

5413488

$262,49 Unit Price incl. VAT

3

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

4

HOSE-1 IN ID RAD OUTLET

5413830

9999999

Not Available

5

CLAMP-P CUSHIONED 1.25 I.D.

7080869

$20,99 Unit Price incl. VAT

6

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

7

GASKET

5810279

$4,19 Unit Price incl. VAT

8

CLIP-COOLANT ROUTING

5438331

9999999

Not Available

9

TRIM; EDGE

836001210

Not Available

10

PRESSURE CAP

1240300

$73,49 Unit Price incl. VAT

11

RADIATOR-FLAT

1240528

1240721

$913,49 Unit Price incl. VAT

11

FLAT RADIATOR

1240385

9999999

Not Available

12

RADIATOR MOUNT BUSHING; LOWER

5410584

$10,49 Unit Price incl. VAT

13

FAN-11 ASSEMBLY

2411219

2204347

$342,29 Unit Price incl. VAT

13

FAN ASSEMBLY; 11 INCHES; ATV

2410413

$493,49 Unit Price incl. VAT

14

GROMMET AND INSERT ASSEMBLY

5413155

$7,34 Unit Price incl. VAT

15

SCREW

7517685

$3,14 Unit Price incl. VAT

16

VALVE-PLASTIC RAD/COOLER DRAIN

7052410

$52,49 Unit Price incl. VAT

17

SHROUD-FAN

5436851

9999999

Not Available

18

SCREW M6 X 1.0; L-20MM

7516822

$4,19 Unit Price incl. VAT

19

U CLIP; 6.0 MM X 1.0 MM

7547366

$9,44 Unit Price incl. VAT

20

TIE CABLE; 14 IN

7080761

$5,24 Unit Price incl. VAT

21

FUEL LINE; 1/4 ID

84500031525

Not Available

22

FITTING 90 DEGREE

7052065

$13,64 Unit Price incl. VAT

23

SCREW

7512084

$2,09 Unit Price incl. VAT

24

BRKT-SURGE TANK;BLK

5252305329

Not Available

25

SURGE TANK

5436936

$152,24 Unit Price incl. VAT

26

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

27

CONDUIT FLEX 1.250ID

552128718

Not Available

28

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

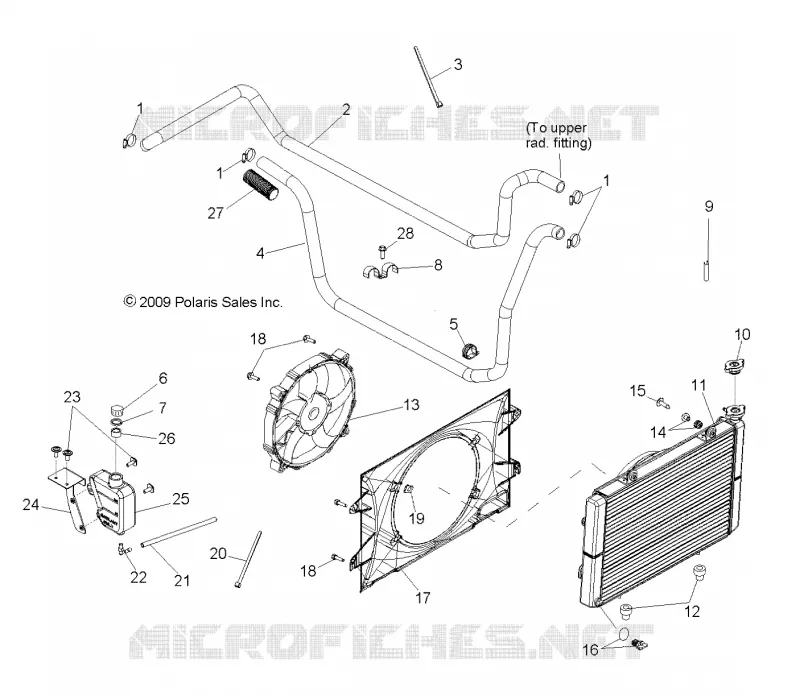

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
