Engine displacement
700
2
Year
2009
3
Trim
RANGER 4X4 700 EFI ALL OPTIONS - R09HH68/HY68
4
Parts Catalog
ELECTRICAL, INSTRUMENTS CONTROLS
5
Parts Diagram
Parts Catalog
BATTERY
by
REGULATOR, RELAYS, SENSORS AND ECU
ELECTRICAL, INSTRUMENTS CONTROLS
1
2
3
4
5
6
7
8
9
10
11
12
13
1
GROMMET-PARK BRAKE
5413558
9999999
Not Available
2
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
3
HOLE PLUG; CARLING ROCKER SWITCH
5434192
$13,64 Unit Price incl. VAT
4
TWO POLE SWITCH
4011680
9999999
Not Available
5
HEADLIGHT SWITCH
4011500
$125,99 Unit Price incl. VAT
6
12V OUTLET
4012393
$68,24 Unit Price incl. VAT
7
ASM-SPEEDO RANGER
2410834
2411341
$887,24 Unit Price incl. VAT
8
SWITCH-MOMENTARY; INST.
4011501
$41,99 Unit Price incl. VAT
9
3 POSITION KEY SWITCH
4012165
4083589
$202,64 Unit Price incl. VAT
10
MOUNT-RUBBER INSTR. CLUSTER
5412138
$83,99 Unit Price incl. VAT
11
BEZEL-REPLACEMENT CLUSTER
5434380
5437258
$83,99 Unit Price incl. VAT
12
DASH PANEL CONTROLS; GLOSS BLACK; SPEEDO
5437644070
Not Available
13
INDICATOR-LIGHT EPAS
4012338
9999999
Not Available

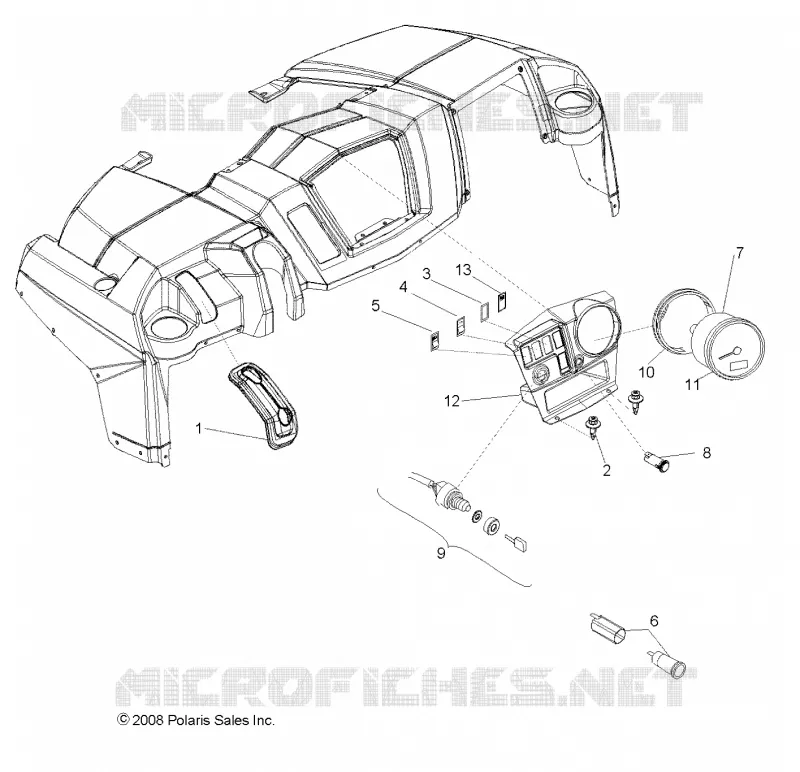

Find the detailed ELECTRICAL, INSTRUMENTS CONTROLS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for RANGER 4X4 700 EFI ALL OPTIONS - R09HH68/HY68
