Parts Catalog
FRONT BRAKE CALIPER
5
Parts Diagram
Parts Catalog
SKID PLATES
by
REAR BRAKE CALIPER
FRONT BRAKE CALIPER
1
1
2
3
4
5
6
7
8
9
10
11
1
2
3
4
1
CALIPER BRAKE ASSEMBLY; FRONT; LEFT
1911150
$509,24 Unit Price incl. VAT
1
BRAKE CALIPER ASSEMBLY; FRONT; RIGHT
1911151
$509,24 Unit Price incl. VAT
2
GEMPCO 246 MM. BRAKE PAD KIT
2203628
2204088
$49,13 Unit Price incl. VAT
3
PISTON-BRAKE LONG
5132294
1930665
$104,99 Unit Price incl. VAT
4
CALIPER MOUNT ASSEMBLY
1911225
$73,49 Unit Price incl. VAT
5
SQUARE MOLDED RING; .094
5410779
$19,94 Unit Price incl. VAT
6
SQUARE MOLDED RING; .103 X .134
5410780
$19,94 Unit Price incl. VAT
7
PIN BUSHING BOOT
5412505
$6,29 Unit Price incl. VAT
8
PIN SEAL BOOT
5412506
$6,29 Unit Price incl. VAT
9
SCR-M7X1.0 BLEEDER OLIVE D
7081343
$10,49 Unit Price incl. VAT
10
SCR-M10X1.0X8 SOC SET-OD
7518863
$17,84 Unit Price incl. VAT
11
BOLT WITH PATCH; 10 MM X 1.25 MM X 25 MM
7518760
$17,84 Unit Price incl. VAT

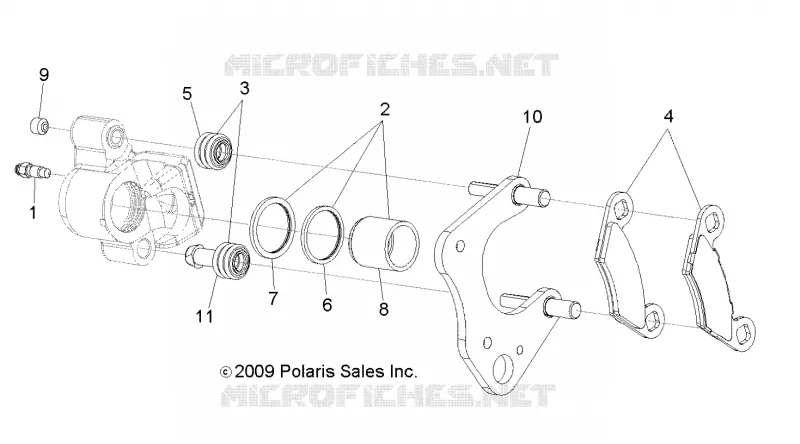

Find the detailed FRONT BRAKE CALIPER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
