1
Engine displacement
autre
2
Year
1997
3
Trim
LITE - 0973433
4
Parts Catalog
DRIVE CLUTCH
5
Parts Diagram
Parts Catalog
REAR TORQUE ARM
by
DRIVEN CLUTCH
DRIVE CLUTCH
-
1
2
3
4
5
6
7
8
8
8
8
8
8
8
8
8
9
10
11
12
13
14
15
16
17
-
1
2
3
4
5
6
7
8
8
8
8
8
8
8
8
8
9
10
11
12
13
14
15
16
17
-
CLUTCH UPDATE KIT
2200386
$314,99 Unit Price incl. VAT
1
BOLT
7512265
9999999
Not Available
2
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
3
BEARING COVER
3576510
$16,79 Unit Price incl. VAT
4
RETAINING RING COVER
7710417
$2,09 Unit Price incl. VAT
5
SPRING CLUTCH SIL/GOLD
7041286
9999999
Not Available
6
WASHER(10)
5430945
5438247
$3,14 Unit Price incl. VAT
7
ROLLER/BUSHING ASSEMBLY
1321457
$73,49 Unit Price incl. VAT
8
SPACER .020
5210752
$3,14 Unit Price incl. VAT
8
SPACER .050
5210754
$6,29 Unit Price incl. VAT
8
SPACER .032
5210753
$4,19 Unit Price incl. VAT
9
BUSHING MOVEABLE 1/2 INCH
3576504
$41,99 Unit Price incl. VAT
10
WEIGHT; .010(6)
5630272
9999999
Not Available
11
HARDENED WEIGHT PIN
7515105
$26,24 Unit Price incl. VAT
12
GEAR-RING
5131062
2877485
$163,79 Unit Price incl. VAT
13
BOLT
7515351
$7,34 Unit Price incl. VAT
14
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
15
ROLLER PIN
5020422
$4,19 Unit Price incl. VAT
16
GUIDE BUTTON
5430445
$11,54 Unit Price incl. VAT
17
CLUTCH BASIC #42(DRIVE)
1321596
9999999
Not Available

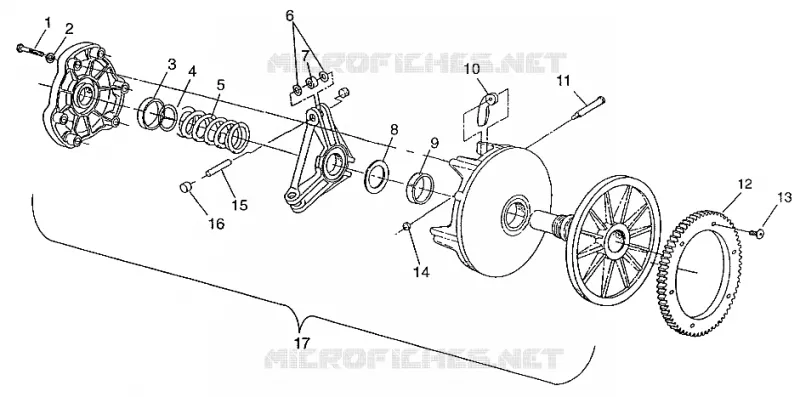

Find the detailed DRIVE CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
