1
SHIFT COVER
5450575
$24,14 Unit Price incl. VAT
2
SCREW
7512024
$9,44 Unit Price incl. VAT
3
GEAR SELECTOR SHIFT KNOB
5414569
$26,24 Unit Price incl. VAT
4
NYLOK NUT; 8 MM X 1.25 MM
7547144
$6,29 Unit Price incl. VAT
5
SHIFT CABLE
7081883
7082474
$283,49 Unit Price incl. VAT
6
SHIFT CABLE BACKET
5256720
5270592
$68,24 Unit Price incl. VAT
7
HEX HEAD FLANGE BOLT 10MM X 1.25MM X16MM
7519374
$9,44 Unit Price incl. VAT
8
SHIFTER WELD
1020155458
Not Available
9
E-RING
7710901
$15,74 Unit Price incl. VAT
10
PEDAL BUSHING PIVOT
5439274
$24,14 Unit Price incl. VAT

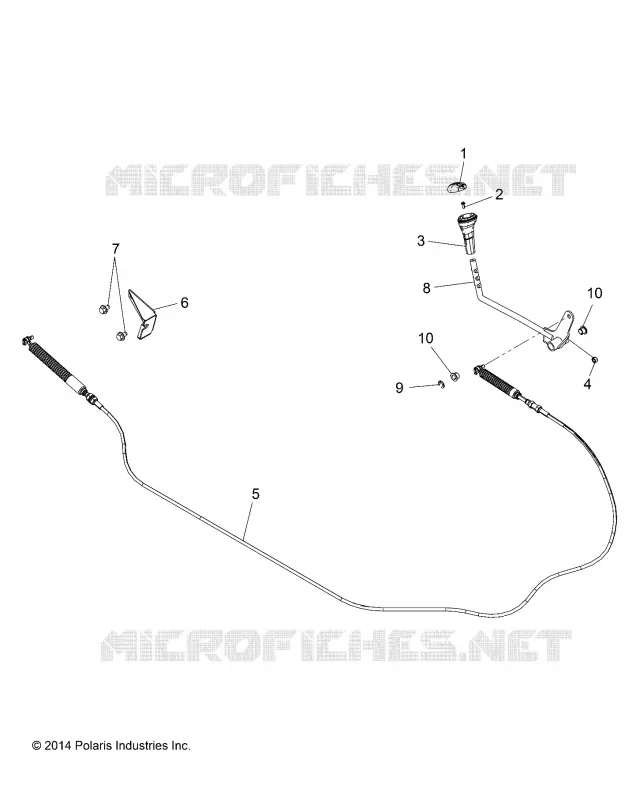

Find the detailed DRIVE TRAIN, GEAR SELECTOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
