RAILS for POLARIS 600 WIDETRAK IQ from 2013

RAILS

1

SCR-M6X1.0X30 8.8 HXFL ZOD

7518993

$4,19 Unit Price incl. VAT

2

RAIL TIP; CAP

5438374

$36,74 Unit Price incl. VAT

3

WASHER

7556064

$9,44 Unit Price incl. VAT

4

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

5

SCREW

7510504

$10,49 Unit Price incl. VAT

6

WASHER FLAT

7555783

$7,34 Unit Price incl. VAT

7

JOUNCE BUMPER; REAR

5521498

$16,79 Unit Price incl. VAT

7

BUMPER LINER

5432946

$19,94 Unit Price incl. VAT

8

NUT NYLOK 10-24 Y

7541925

$1,56 Unit Price incl. VAT

9

BRKT-RAIL REINF

5245411

9999999

Not Available

10

NYLOK NUT

7547263

$6,29 Unit Price incl. VAT

11

BEARING

3514303

$20,99 Unit Price incl. VAT

11

ASM-WHEEL BOGIE PLAIN 5.62

1590317

$99,74 Unit Price incl. VAT

11

RETAINING RING

7718407

$9,44 Unit Price incl. VAT

12

ASM-RAIL 156 LH SVC

1542784

9999999

Not Available

12

ASM-RAIL 156 RH SVC

1542785

9999999

Not Available

13

RIVET

7621501

$4,19 Unit Price incl. VAT

14

BLOCK-IDLER BOLT ADJ.

5130530

$62,99 Unit Price incl. VAT

15

NUT

7542404

$3,14 Unit Price incl. VAT

16

SCREW

7517227

$13,64 Unit Price incl. VAT

17

WHEEL MOUNT BLOCK; LIGHTWEIGHT

5631065

9999999

Not Available

18

WASHER-SPRING CON 5/16X.090-Y

7556179

$11,54 Unit Price incl. VAT

19

SCREW

7515346

$10,49 Unit Price incl. VAT

20

BOLT

7515317

$9,44 Unit Price incl. VAT

21

SCREW

7515415

9999999

Not Available

22

WASHER

7555983

7555893

$1,56 Unit Price incl. VAT

23

SPACER .407 X .625 X 1.33

5333948

$11,54 Unit Price incl. VAT

24

SPRING SQUARE GUIDE

5434334

$62,99 Unit Price incl. VAT

25

SLIDER .45/74 SERVICE WHITE

5521633

5521633-309

$73,49 Unit Price incl. VAT

26

SCREW

7515199

$2,09 Unit Price incl. VAT

27

RIVET(10)

7661845

$2,09 Unit Price incl. VAT

28

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

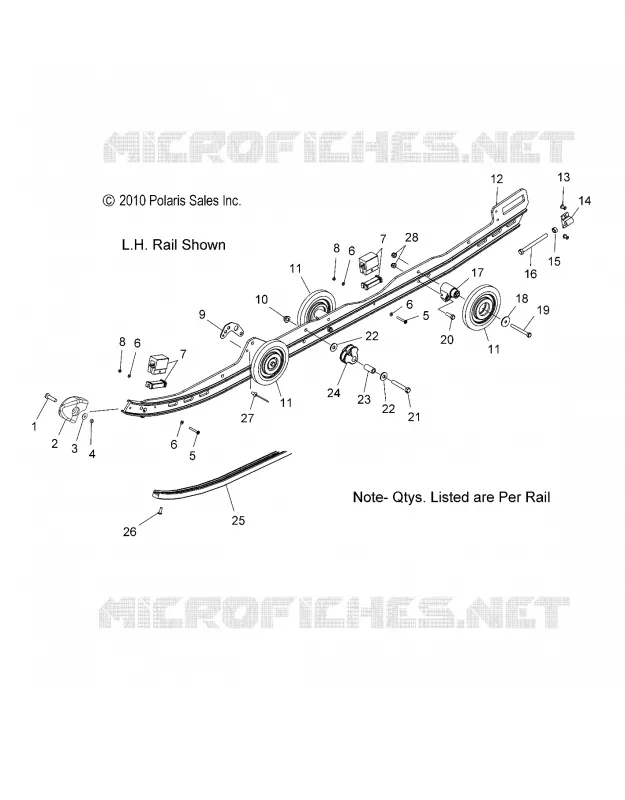

Find the detailed RAILS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
