1
Engine displacement
650
2
Year
1992
3
Trim
650 RXL SKS - 0920568
4
Parts Catalog
MASTER CYLINDER RXL/RXL SKS (492132213217A)
5
Parts Diagram
Parts Catalog
CLUTCH GUARD ASSEMBLY/SKI WELDMENT SWEDISH SNOWMOBILES (4922482248011A)
by
BRAKE CHAINCASE RXL/RXL SKS (492132213221A)
MASTER CYLINDER RXL/RXL SKS (492132213217A)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
SCREW(10)
7512016
9999999
Not Available
2
COVER MASTER CYL.
5630338
9999999
Not Available
3
MASTER CYLINDER GASKET
5410527
9999999
Not Available
4
HSG; MASTER CYL.
5130790
2050056
Not Available
5
BUSHING BRAKE LEVER
5332931
9999999
Not Available
6
LEVER; BRAKE
5630381
9999999
Not Available
7
SPRING PK.BRAKE
7041229
9999999
Not Available
8
NUT
7542124
7542122
$2,09 Unit Price incl. VAT
9
LEVER PARK.BRAKE
5222669
9999999
Not Available
10
SCREW
7511866
$9,44 Unit Price incl. VAT
11
BUSHING PK.BRAKE LEVER
5020545
9999999
Not Available
12
WASHER
7555708
9999999
Not Available
13
COMPRESSION SPRING
7041203
9999999
Not Available
14
U-PACKING SEAL
5410164
9999999
Not Available
15
PISTON MASTER CYL.
5020520
9999999
Not Available
16
O-RING
5410163
$3,14 Unit Price incl. VAT
17
BOLT; S.S.(10)
7512293
9999999
Not Available
18
CLAMP MASTER CYL.
5630342
9999999
Not Available
19
BOLT BRAKE LEVER
7512287
9999999
Not Available
20
MASTER CYL.ASM. Substituted by 2050056
2050054
Not Available
21
BAFFLE MASTER CYL.
1930673
9999999
Not Available
22
WASHER; BAFFLE
1930662
9999999
Not Available
23
STRAP PARK.BRAKE TAG
7080447
9999999
Not Available
24
TAG-PARK BRAKE WARNING [S99CM][FROM 5/18/2018]
5431389
Not Available

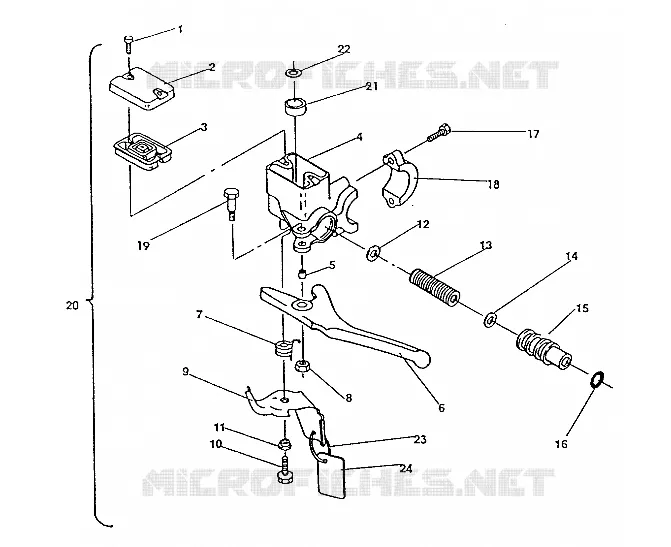

Find the detailed MASTER CYLINDER RXL/RXL SKS (492132213217A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
