FRONT TRACK SHOCK for POLARIS 800 SWITCHBACK ASSAULT from 2012

FRONT TRACK SHOCK

-

FTS SHOCK; ASSAULT

7043634

$955,49 Unit Price incl. VAT

1

BODY RES 3.75L BLK(1020334)

1800419

9999999

Not Available

2

KNOB; CLICKER BLACK

1800418

$173,24 Unit Price incl. VAT

3

BUSHING/URETHANE

1800033

$34,64 Unit Price incl. VAT

4

END CAP; 90 PB BLK (1001148)

1800413

$194,24 Unit Price incl. VAT

5

SPRING RETAINER

1800046

$68,24 Unit Price incl. VAT

6

BODY FT 6.29L BLK (1000111)

1800438

9999999

Not Available

7

SEAL HEAD ASSEMBLY

1800414

9999999

Not Available

8

SHAFT; FT 6.40L (1000112)

1800439

9999999

Not Available

9

SCREW 10X5/8 BTN SS (500603)

1800357

$6,29 Unit Price incl. VAT

10

STUD; CLICKER (400613)

1800352

$57,74 Unit Price incl. VAT

10

O-RING STUD

1800215

$14,16 Unit Price incl. VAT

11

SPRING-D-TENT(10)

1800128

$20,99 Unit Price incl. VAT

11

BALL-D-TENT(10)

1800127

$12,59 Unit Price incl. VAT

12

BOLT; CLICKER (900606)

1800354

$23,09 Unit Price incl. VAT

13

CLICKER PISTON

1800353

$173,24 Unit Price incl. VAT

14

BODY O-RING

1800030

$3,66 Unit Price incl. VAT

15

O-RING CLICKER HSG (900605)

1800358

9999999

Not Available

16

SNAP RING CLICKER

1800359

$6,29 Unit Price incl. VAT

17

CRIMP NUT 3/8 IN

1800031

$7,34 Unit Price incl. VAT

18

O-RING

1800184

$10,49 Unit Price incl. VAT

19

RING-SNAP

1800159

$10,49 Unit Price incl. VAT

20

END CAP;RES 2 BLK (1020207)

1800420

9999999

Not Available

21

SCREW-BUTTON HEAD 8/32(10)

1800109

$6,29 Unit Price incl. VAT

21

O-RING BLEED SCREW

1800210

$3,14 Unit Price incl. VAT

22

NEEDLE VALVE

1800329

$62,99 Unit Price incl. VAT

22

O-RING STUD

1800215

$14,16 Unit Price incl. VAT

23

SLEEVE; LG. BUSHING (200329)

1800287

9999999

Not Available

24

PISTON; RES; 2 (620204)

1800355

$152,24 Unit Price incl. VAT

25

PISTON BAND

1800185

$83,99 Unit Price incl. VAT

26

BLEED SCREW (10)

1800043

$12,59 Unit Price incl. VAT

26

O-RING BLEED SCREW

1800210

$3,14 Unit Price incl. VAT

27

PISTON CONVEX

1800001

9999999

Not Available

28

TEFLON WEAR BAND

1800297

$62,99 Unit Price incl. VAT

29

3/8 AN WASHER (10)

1800050

$7,34 Unit Price incl. VAT

30

O-RING BODY

1800027

$3,66 Unit Price incl. VAT

31

SHAFT SEAL U CUP

1800323

9999999

Not Available

31

WIPER D/TYPE

1800322

9999999

Not Available

31

O-RING SHAFT SEAL HEAD (10)

1800037

$3,14 Unit Price incl. VAT

31

SHAFT BUSHING

1800038

9999999

Not Available

32

CMPRSSN SPNG 170 7.5IN X .343IN GS BLK

7042050067

Not Available

33

SHIELD-SPRING 3.00 W/CAP

5437525

5417912

$52,49 Unit Price incl. VAT

34

RETAINER-SPRING CONE;CAST

5632166

9999999

Not Available

35

BUSHING SMALL

1800289

9999999

Not Available

36

SMALL BUSHING SLEEVE

1800290

9999999

Not Available

37

LOOP; SHAFT;THD .625 (1000661)

1800415

9999999

Not Available

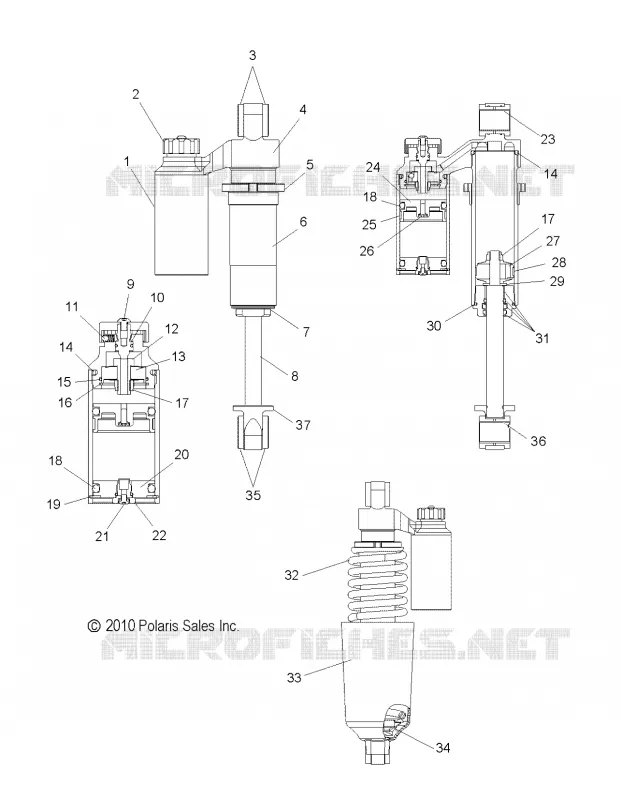

Find the detailed FRONT TRACK SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
