1
Engine displacement
700
2
Year
1997
3
Trim
SL 700 DELUXE - B974072
4
Parts Catalog
STEERING SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 AND IN (4940874087B001)
5
Parts Diagram
Parts Catalog
OIL TANK SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 AND IN (4940874087A014)
by
STEERING SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 AND IN (4940874087B002)
STEERING SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 AND IN (4940874087B001)
1
PIN; RETAINING
7661628
9999999
Not Available
2
LEVER THROTTLE CONTROL
5431397
9999999
Not Available
3
BLOCKTHROTTLE CONTROL
5431396
9999999
Not Available
4
CABLE;THROTTLE
7080620
9999999
Not Available
4
CABLE THROTTLE (700)
7080690
Not Available
5
ALARM HI-TEMP/LOW OIL
4040048
9999999
Not Available
6
PAD;HBAR;TRIM;TEAL MT
5432516168
Not Available
6
PAD;HBAR;PUR.WAVE
5432515214
Not Available
7
SCREW; SS.
7512047
9999999
Not Available
8
SWITCH ST./STOP/CHOKE (700)
4110232
Not Available
8
SWITCH ST/SP/TR/BG/CK
4110215
Not Available
9
DESC NOT_AVAILABLE (Deluxe)
5411221168
Not Available
9
GRIP H BAR LBLUE
5411221217
Not Available
10
PLUG HANDGRIP BLK.
7010082070
Not Available
11
LANYARDW/WHISTLE
7080675
9999999
Not Available
12
BOLT SHOULDER(10)
7515387
9999999
Not Available
13
STOP STEERING
5222677
9999999
Not Available
14
BUSH.
7555875
9999999
Not Available
15
BUSHING STRG.SUPPORT
5431382
9999999
Not Available
16
HUB SPRT.STRG/ANODE.
5131509
9999999
Not Available
17
CABLE CHOKE SINGLE
7080691
9999999
Not Available
17
CABLE;CHOKE;67.53
7080670
9999999
Not Available
18
PLATE BOLT
1060101
9999999
Not Available
19
ARM STRNG. ANODIZED
5131441
9999999
Not Available
20
WASHER LOCK S.S.
7552610
9999999
Not Available
21
BOLT; S.S.
7515375
9999999
Not Available
22
NUT HEX S.S.(10)
7542335
Not Available
23
WASHER; FLAT; S.S.
7555837
9999999
Not Available
24
WASHER; LOCK
7552615
9999999
Not Available
25
SCREW S.S.
7512051
9999999
Not Available
26
PLATE LATCH SLT
5211860
9999999
Not Available
27
POST STEERING W/H BAR
1823175
9999999
Not Available
27
POST STRG W/H BAR TRIM
1860119
9999999
Not Available
28
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
29
RING RETAINING EXT. S.S.
7710426
9999999
Not Available
30
WASHER; FLAT; S.S.
7555840
9999999
Not Available
31
SCREW; SET; S.S.
7515115
9999999
Not Available

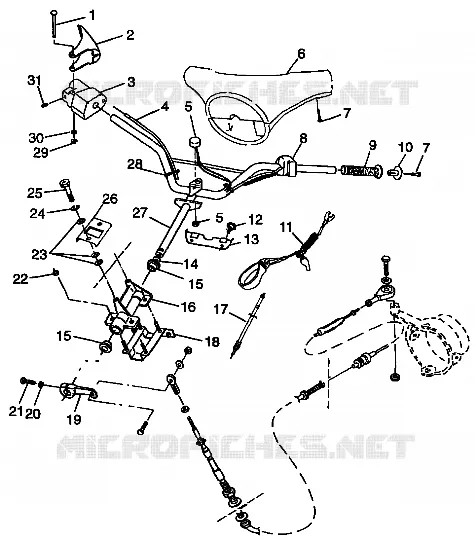

Find the detailed STEERING SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 AND IN (4940874087B001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
