1
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
2
WASHER
7555801
$7,34 Unit Price incl. VAT
3
CABLE GND-ENGINE
4010132
9999999
Not Available
4
MOUNT RUBBER TOP
3110044
3024012
$83,99 Unit Price incl. VAT
5
MOUNT ENG.TOP BLK.
5240328067
Not Available
6
NUT LOCK
7542403
9999999
Not Available
7
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
8
BOLT
7512315
$9,44 Unit Price incl. VAT
9
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
10
FUEL LINE; 600 CM
8450040600
Not Available
11
FUEL LINE; 1/4 ID
84500031525
Not Available
12
FITTING TEE
7052075
$17,84 Unit Price incl. VAT
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
INSERT
7542143
$10,49 Unit Price incl. VAT
15
MOUNT CARBURETOR
3110050
$19,94 Unit Price incl. VAT
16
BRKT CARB.MT.
5240609067
Not Available
17
WASHER
7552605
9999999
Not Available
18
HEX NUT
7542105
$7,34 Unit Price incl. VAT
19
Gasket
_______
Not Available
20
FITTING VENT 1/8
7052192
9999999
Not Available
21
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
22
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
23
SCREW
7512490
$7,34 Unit Price incl. VAT
24
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
25
MOUNT R.ENG BLK
5241921067
Not Available
26
CLUTCH INTAKE BOOT
5410421
9999999
Not Available
27
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
28
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
29
BUSHING
5430261
$13,64 Unit Price incl. VAT
30
WASHER
5210748
$7,34 Unit Price incl. VAT
31
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
32
BOLT
7512566
9999999
Not Available
33
Gasket
_______
Not Available
34
MOUNT ENG BLK
1040534067
Not Available
35
BOLT
7515307
$7,34 Unit Price incl. VAT
36
NUT FLEX-LOC
7542303
9999999
Not Available
37
MOUNT RUBBER FRONT
3110046
9999999
Not Available
38
CLAMP HOSE 1.25 WORM DRIVE
7080696
$10,49 Unit Price incl. VAT
39
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
40
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
41
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
42
MANIFOLD BLK
1260832029
Not Available
43
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
44
ENG.(S.B.)EH42PLE-01 [No Longer Available] (See Footnote)
3085555
Not Available
45
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
46
MOUNT R.RUBBER
3110068
9999999
Not Available

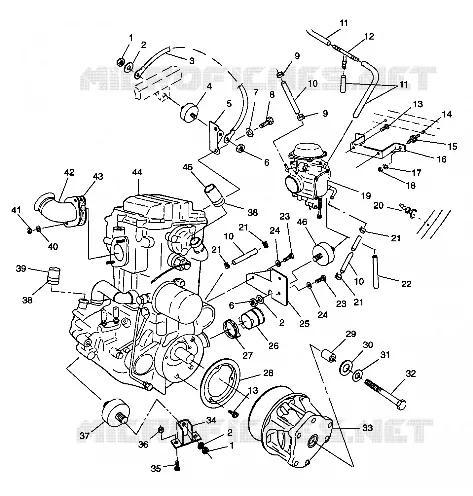

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
