1
Engine displacement
800
2
Year
2019
3
Trim
800 AXYS SKS 155 SC SELECT
4
Parts Catalog
BODY, DECALS, SNOW CHECK, GLOSS BLACK W/TITN ACCENT SIDE PANEL
5
Parts Diagram
Parts Catalog
BODY, SIDE PANELS
by
BODY, DECALS, SNOW CHECK, IND SKY BLUE W/LIME ACCENT SIDE PANEL
BODY, DECALS, SNOW CHECK, GLOSS BLACK W/TITN ACCENT SIDE PANEL
4
5
5
6
7
7
8
8
9
9
10
10
11
11
12
12
13
14
15
1
POLARIS STAR LOGO
7078465
$23,09 Unit Price incl. VAT
2
DECAL-SIDE PANEL; POLARIS ;RH
7187611
9999999
Not Available
2
DECAL-SIDE PANEL; POLARIS ;LH
7187610
9999999
Not Available
3
DECAL-CAUT. SELCT FUEL TYPE B1
7185974
Not Available
4
IGNITION DECAL
7181062
$9,44 Unit Price incl. VAT
5
DECAL-WARNING TUNNEL FR RH
7183191
Not Available
5
DECAL-WARNING TUNNEL ENG LH
7183190
Not Available
6
REFLECTOR WITH VHB TAPE ASSEMBLY; RED
2636502
$9,23 Unit Price incl. VAT
7
DECAL-TUNNEL; 155 ;RH
7187663
9999999
Not Available
7
DECAL-TUNNEL; 155 ;LH
7187662
9999999
Not Available
8
DECAL-TUNNEL; AXYS ;LH
7187666
9999999
Not Available
8
DECAL-TUNNEL; AXYS ;RH
7187667
9999999
Not Available
9
DECAL-SIDE PANEL; 800 ;LH
7187630
9999999
Not Available
9
DECAL-SIDE PANEL; 800 ;RH
7187631
9999999
Not Available
10
DECAL-SIDE PANEL; SKS ;LH
7187622
9999999
Not Available
10
DECAL-SIDE PANEL; SKS ;RH
7187623
9999999
Not Available
11
DECAL-SD PNL; SNOW KING SP ;RH
7187617
9999999
Not Available
11
DECAL-SD PNL; SNOW KING SP ;LH
7187616
9999999
Not Available
12
REFLECTOR DECAL; RIGHT; AMBER
7179546
$27,29 Unit Price incl. VAT
12
AMBER REFLECTOR DECAL; LEFT
7179545
7301128
$18,89 Unit Price incl. VAT
13
DECAL-WARN STD/REV ENG LH
7176779
Not Available
14
DECAL-WARN NO PASS FUEL RECOMM
7181522
7301182
Not Available
15
DECAL-WARN STD/REV FR RH
7176780
Not Available

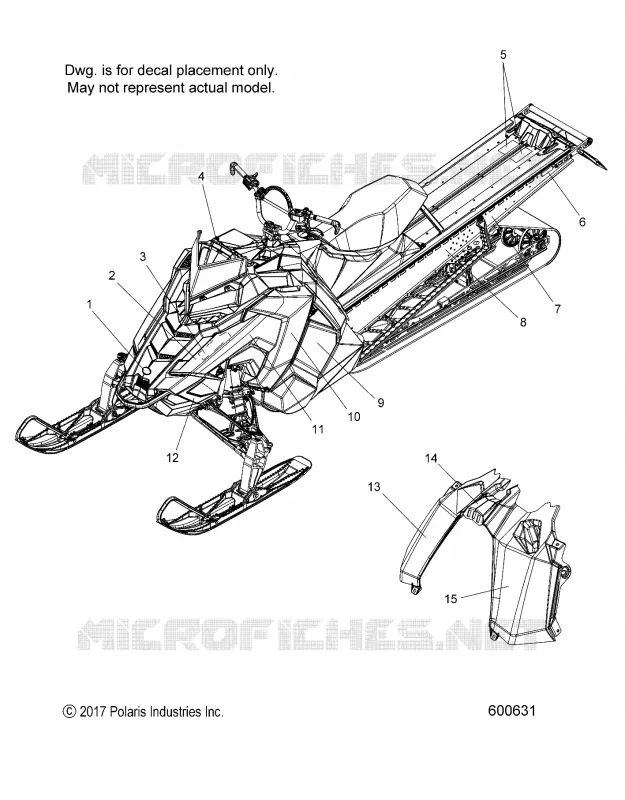

Find the detailed BODY, DECALS, SNOW CHECK, GLOSS BLACK W/TITN ACCENT SIDE PANEL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
