SHOCKS for POLARIS 550 INDY EVO 121 from 2021

SHOCKS

1

SCREW

7515433

$3,14 Unit Price incl. VAT

2

SLEEVE .385 X .560 X 1.24

5333905

$27,29 Unit Price incl. VAT

3

NYLOK NUT

7547263

$6,29 Unit Price incl. VAT

4

RETAINER-SPRING CONE;CAST

5632166

9999999

Not Available

5

SHIELD-SPRING 3.00 W/CAP

5437525

5417912

$52,49 Unit Price incl. VAT

6

SHOCK-F/T ARVIN MPV

7043825

$493,49 Unit Price incl. VAT

7

COMPRESSION SPRING 95/280#; GS BLK

7043957067

Not Available

8

RETAINER-SPRING GAB PLATED

5245067

$41,99 Unit Price incl. VAT

9

SCREW

7515417

9999999

Not Available

10

SLEEVE .385 X .560 X 1.72

5333906

$27,29 Unit Price incl. VAT

11

SCREW

7512410

7515540

$9,44 Unit Price incl. VAT

12

BUSHING

5010422

$18,89 Unit Price incl. VAT

13

SHOCK

7043281

$325,49 Unit Price incl. VAT

14

SCR-3/8-24X4.00 HXCP-GR5-Y

7518263

$7,34 Unit Price incl. VAT

15

WAVE SPRING WASHER

7555795

$2,09 Unit Price incl. VAT

16

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

17

BUSHING 10 MM X 17.5 MM X 30

5137360

$7,34 Unit Price incl. VAT

18

SCREW 10 MMX 1.5 MM X 60 MM

7518941

$7,34 Unit Price incl. VAT

19

IFS SHOCK; MID

7044958

$482,99 Unit Price incl. VAT

20

RETAINER-SPRING GAB PLATED

5245067

$41,99 Unit Price incl. VAT

21

SPR-CMP IFS .306X8.25 120# RED

7044963293

Not Available

22

SPRING RETAINER; SLOTTED

5020618

$36,74 Unit Price incl. VAT

23

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$12,59 Unit Price incl. VAT

24

SPACER 10.2 ID X 12.62 OD

5136530

$8,39 Unit Price incl. VAT

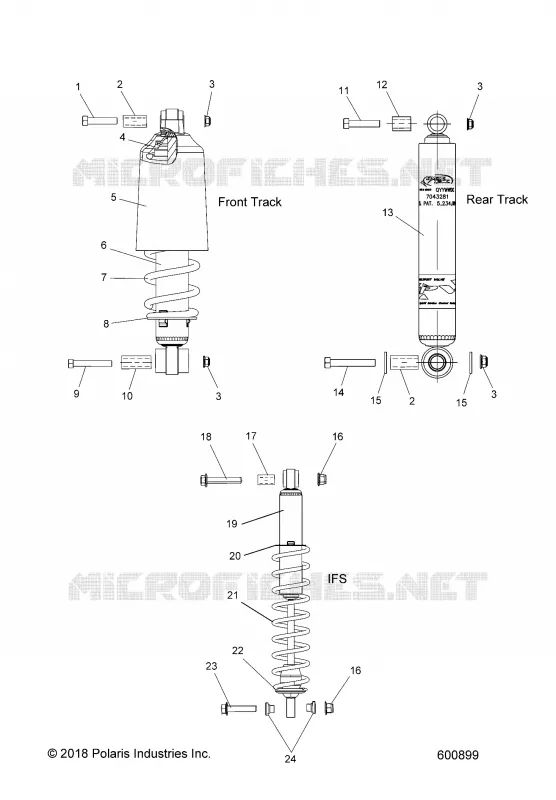

Find the detailed SHOCKS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
