1
Engine displacement
350
2
Year
1993
3
Trim
Euro 350L 4x4 - S938139
4
Parts Catalog

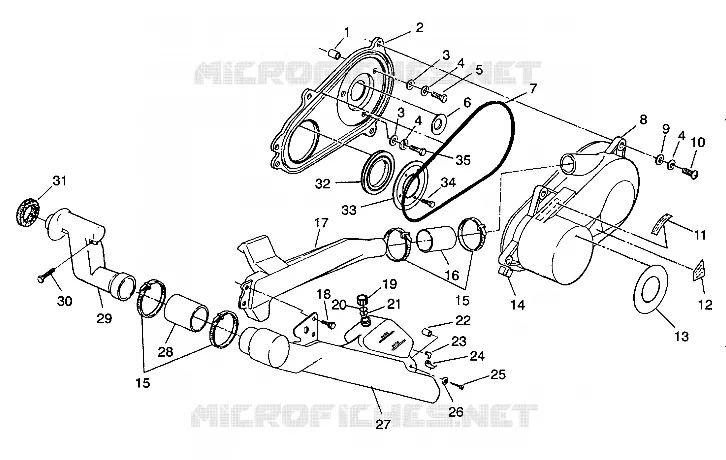

CLUTCH COVER ASSEMBLY 4X4 350L W938139 (4924052405024A)
5
Parts Diagram
Parts Catalog
WISHBONES 4X4 350L W938139 (4924052405019A)
by
DRIVE CLUTCH ASSEMBLY 4X4 350L W938139 (4924052405025A)
CLUTCH COVER ASSEMBLY 4X4 350L W938139 (4924052405024A)
1
SPACER
5333062
9999999
Not Available
2
COVER CLUTCH(INNER PVT)
5431569
9999999
Not Available
3
WASHER
7555748
$9,44 Unit Price incl. VAT
4
WASHER
7552605
9999999
Not Available
5
BOLT
7512277
$9,44 Unit Price incl. VAT
6
COVER CASE SEAL
5410489
9999999
Not Available
7
CLUTCH COVER SEAL OUTER
5521301
5526452
$58,58 Unit Price incl. VAT
8
COVER CLUTCHFRONTRTP
5430771
9999999
Not Available
9
WASHER
7555776
7558301
$2,09 Unit Price incl. VAT
10
BOLT
7512281
9999999
Not Available
11
DECAL(CPSC) CLUTCH COVER Substituted by 7074946
7072787
Not Available
12
DECAL(CPSC) ENG/CLUTCH MOD.
7072789
9999999
Not Available
13
DECAL PVT
7072386
9999999
Not Available
14
CLUTCH COVER CLIP
7670051
9999999
Not Available
15
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
16
CLUTCH INTAKE BOOT
5410421
9999999
Not Available
17
DUCT AIR OUTLET
5431010
Not Available
18
SCREW(10)
7512018
$6,29 Unit Price incl. VAT
19
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
20
GASKET
5810279
$4,19 Unit Price incl. VAT
21
PLUG
5431096
$3,66 Unit Price incl. VAT
22
SPACER
5020577
9999999
Not Available
23
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
24
LINE FUEL (FT.)
8450003
8450003-1525
$136,49 Unit Price incl. VAT
25
SCREW
7512025
$9,44 Unit Price incl. VAT
26
WASHER FLAT
7555783
$7,34 Unit Price incl. VAT
27
DOWNTUBE DUAL INLET
5431185
9999999
Not Available
28
INTAKE BOOT
5410509
9999999
Not Available
29
DUCT INLET TOP
5431261
9999999
Not Available
30
SCREW
7512017
9999999
Not Available
31
SEAL INTAKE
5810480
Not Available
32
SEAL COVER CASE
5410575
9999999
Not Available
33
BRKT RETAINER SEAL
5222446067
Not Available
34
SCREW AND WASHER
3084205
9999999
Not Available
35
BOLT
7512278
9999999
Not Available

Find the detailed CLUTCH COVER ASSEMBLY 4X4 350L W938139 (4924052405024A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
