Engine displacement
570
2
Year
2017
3
Trim
RANGER 570, FULL SIZE
4
Parts Catalog
ENGINE, CYLINDER HEAD, CAMS AND VALVES
5

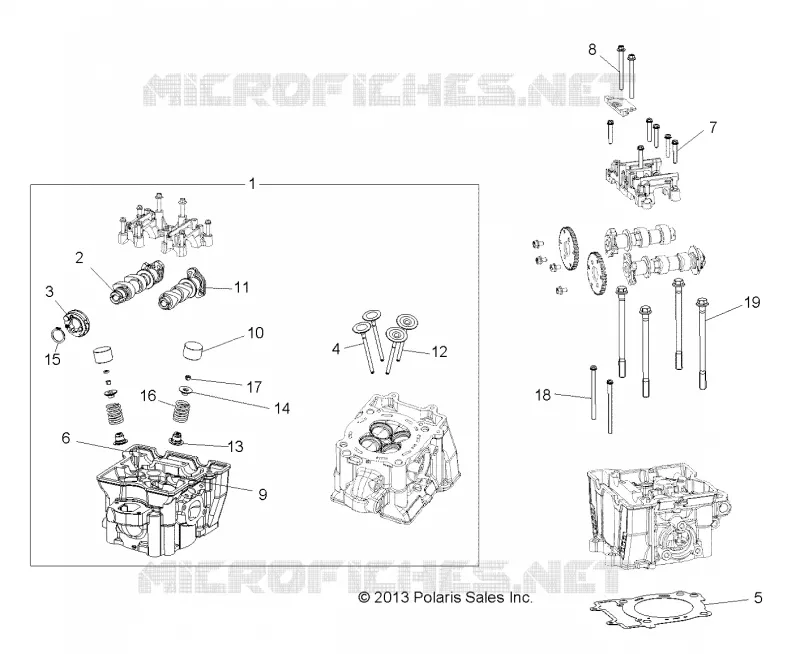

Parts Diagram
Parts Catalog
CAM CHAIN AND SPROCKET
by
ENGINE, EXHAUST SYSTEM
ENGINE, CYLINDER HEAD, CAMS AND VALVES
1
2
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
1
ASM-CYLINDER HEAD;1CYL;MACH
3022616
2206221
$1 065,74 Unit Price incl. VAT
2
EXHASUT CAMSHAFT
3022732
3023632
$278,24 Unit Price incl. VAT
3
ASM-DECOMP SYSTEM;LH
1205100
1209426
Not Available
4
INTAKE VALVE; STEEL
3022884
$52,49 Unit Price incl. VAT
5
GASKET-CYL HEAD
5814089
2206222
$115,49 Unit Price incl. VAT
6
PIN-DOWEL M6X10
5137624
$13,64 Unit Price incl. VAT
7
SCR-HXFL-M6X1.0X35 10.9
7520492
7520689
$14,69 Unit Price incl. VAT
8
SCR-HXFL M6X1.0X70 10.9
7520537
7520688
$19,94 Unit Price incl. VAT
9
DOWEL-HOLLOW M8X8
7662247
9999999
Not Available
10
VALVE TAPPET; GRADED 5.175
5138477518
Not Available
10
VALVE TAPPET; GRADED; 5.250
5138477525
Not Available
10
GRADED VALVE TAPPET; 5.300
5138477530
Not Available
10
GRADED VALVE TAPPET; 5.150
5138477515
Not Available
10
GRADED VALVE TAPPET; 5.100
5138477510
Not Available
10
GRADED VALVE TAPPET; 5.450
5138477545
Not Available
10
TAPPET-VALVE GRADED 4.625 ANVRSY GLD MET
5138477462
Not Available
10
VALVE TAPPET; GRADED 4.600
5138477460
Not Available
10
VALVE TAPPET; GRADED 4.650
5138477465
Not Available
10
VALVE TAPPET; GRADED 4.825
5138477482
Not Available
10
VALVE TAPPET; GRADED; 5.375
5138477538
Not Available
10
GRADED VALVE TAPPET; 4.450
5138477445
Not Available
10
GRADED VALVE TAPPET; 5.200
5138477520
Not Available
10
GRADED VALVE TAPPET; 4.475
5138477448
Not Available
10
VALVE TAPPET; GRADED 4.950
5138477495
Not Available
10
VALVE TAPPET 4.925MM; DELTA GREEN
5138477492
Not Available
10
VALVE TAPPET; GRADED 4.725
5138477472
Not Available
10
VALVE TAPPET; GRADED
5138477505
Not Available
10
VALVE TAPPET; GRADED; 4.575
5138477458
Not Available
10
GRADED VALVE TAPPET; 5.125
5138477512
Not Available
10
GRADED VALVE TAPPET; 4.525
5138477452
Not Available
10
GRADED VALVE TAPPET; 5.350
5138477535
Not Available
10
VALVE TAPPET; GRADED; 5.275
5138477528
Not Available
10
VALVE TAPPET; GRADED; 4.5
5138477450
Not Available
10
VALVE TAPPET 4.55MM
5138477455
Not Available
10
GRADED VALVE TAPPET; 5.075
5138477508
Not Available
10
VALVE TAPPET; GRADED; 5.325
5138477532
Not Available
10
VALVE TAPPET; GRADED 4.850
5138477485
Not Available
10
VALVE TAPPET 4.4MM GLS BLK W/ MCH HGHLTS
5138477440
Not Available
10
GRADED VALVE TAPPET; 5.425
5138477542
Not Available
10
VALVE TAPPET; GRADED 4.875
5138477488
Not Available
10
VALVE TAPPET
5138477500
Not Available
10
VALVE TAPPET; GRADED; 5.225
5138477522
Not Available
10
VALVE TAPPET 4.975MM; SB GRN MTLC
5138477498
Not Available
10
VALVE TAPPET; GRADED 4.70; COLOR
5138477470
Not Available
10
GRADED VALVE TAPPET; 5.025
5138477502
Not Available
10
GRADED VALVE TAPPET; 5.400
5138477540
Not Available
10
VALVE TAPPET; GRADED 4.800
5138477480
Not Available
10
VALVE TAPPET; GRADED 4.675
5138477468
Not Available
10
VALVE TAPPET; GRADED 4.750; COLOR
5138477475
Not Available
10
VALVE TAPPET; GRADED 4.775
5138477478
Not Available
10
VALVE TAPPET; GRADED; 4.425
5138477442
Not Available
10
VALVE TAPPET; GRADED 4.900
5138477490
Not Available
11
INTAKE CAMSHAFT
3022731
3023626
$388,49 Unit Price incl. VAT
12
EXHAUST VALVE; INCONEL
3022883
$125,99 Unit Price incl. VAT
13
VALVE SPRING SEAT WITH SEAL
3610212
3024576
Not Available
14
RETAINER VALVE
5138435
$47,24 Unit Price incl. VAT
15
RING-SNAP EXT 23MM
7710653
$6,29 Unit Price incl. VAT
16
SPRING VALVE
7043988
7046204
$18,89 Unit Price incl. VAT
17
VALVE KEEPER
7081470
$9,44 Unit Price incl. VAT
18
SCREW
7519153
$10,49 Unit Price incl. VAT
19
BOLT HEAD
7520144
$25,19 Unit Price incl. VAT
