1
Engine displacement
1000
2
Year
2020
3
Trim
SPORTSMAN 1000 XP 48" TRAIL PACKAGE
4
Parts Catalog
REAR SUSPENSION CONTROL ARMS- A20SXZ95AG (C0211319)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION A-ARMS
by
FRONT SHOCK
REAR SUSPENSION CONTROL ARMS- A20SXZ95AG (C0211319)
10
11
12
13
14
15
16
17
1
HEX HEAD FLANGE BOLT 10MM X 1.5MM X140MM
7518467
$10,49 Unit Price incl. VAT
2
HEX FLANGE NUT; 10 MM X 1.5 MM
7547313
$2,09 Unit Price incl. VAT
3
STANDARD SUSPENSION BUSHING; 10 MM
5452233
$5,24 Unit Price incl. VAT
4
WELD-UCA SEAL REAR RH BLK
1025343067
Not Available
4
WELD-UCA SEAL REAR LH BLK
1025342067
Not Available
4
WELD-UCA SEAL REAR RH BLK
1023471067
Not Available
4
WELD-UCA SEAL REAR LH BLK
1023470067
Not Available
5
WASHER
7556153
$3,66 Unit Price incl. VAT
6
SHAFT-PIVOT SHORT M10 43MM
5141292
$8,39 Unit Price incl. VAT
7
BOLT 10 MM X 1.5 MM X 85
7518466
$9,44 Unit Price incl. VAT
8
WELD-LCA SEAL REAR LH BLK
1023459067
Not Available
8
WELD-LCA SEAL REAR RH BLK
1023460067
Not Available
9
HEX HEAD FLANGE BOLT; 1.5 MM X 130 MM
7518675
$10,49 Unit Price incl. VAT
10
PIVOT SHAFT; 104.9 MM
5137590
$16,79 Unit Price incl. VAT
11
LOWER CONTROL ARM A ARM SHAFT
5136473
5145086
$68,24 Unit Price incl. VAT
12
CONTROL ARM BUSHING; LOWER; .75 IN
5437651
$12,59 Unit Price incl. VAT
13
SHAFT-PIVOT 190MM M10
5141510
$52,49 Unit Price incl. VAT
14
SEALED PIVOT CAP ASSEMBLY; 10 MM
1543611
$10,49 Unit Price incl. VAT
15
HEX FLANGE SCREW 10MM X 1.25MM X 235MM
7519086
$52,49 Unit Price incl. VAT
16
STANDARD BUSHING; ORV
5439874
$4,19 Unit Price incl. VAT
17
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT

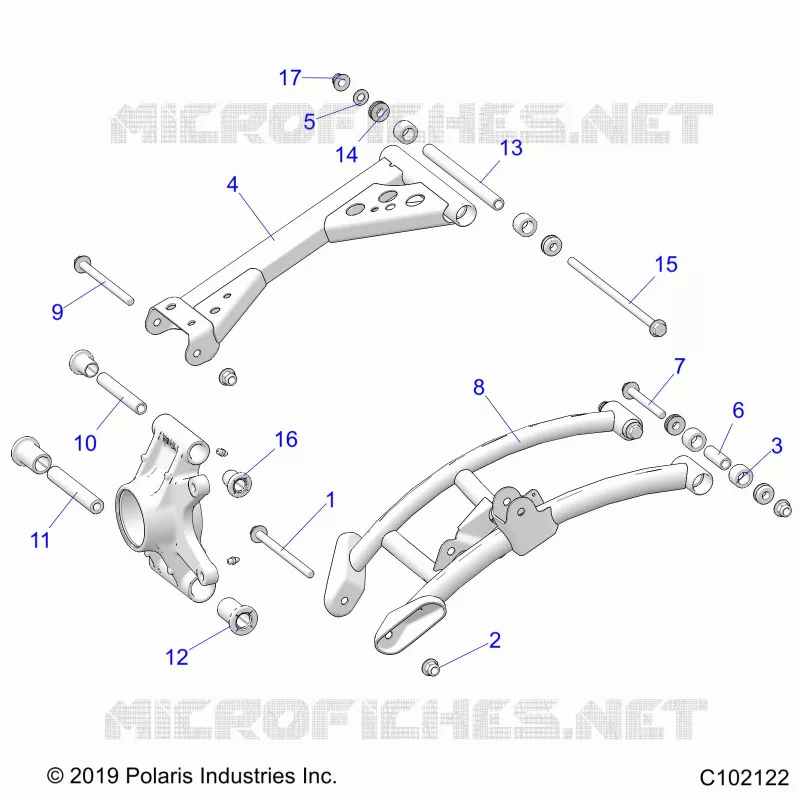

Find the detailed REAR SUSPENSION CONTROL ARMS- A20SXZ95AG (C0211319) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
