1
Engine displacement
500
2
Year
2001
3
Trim
500 RMK 136
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
DECALS
by
BRAKE
COOLING SYSTEM
1
2
1
4
5
5
5
5
5
5
5
5
5
6
7
8
9
10
11
11
12
13
14
14
15
16
17
17
18
19
20
21
22
23
24
25
26
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
FUEL LINE; 1/4 ID
84500031525
Not Available
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
TEE CONNECTOR 1IN; 1IN; .75IN BARBED
7052282
$47,24 Unit Price incl. VAT
5
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
6
HOSE ENGINE OUT/BRAKE COOLER
5411662
9999999
Not Available
7
HOSE (B HD COOL.-REAR)
5411216
9999999
Not Available
8
POP RIVET(10)
7621425
$2,09 Unit Price incl. VAT
9
HOSE (BRK.COOL.-REAR)
5411217
9999999
Not Available
10
HOSE COOLING
5410758
9999999
Not Available
11
RIVET
7661637
$2,09 Unit Price incl. VAT
12
EXCHANGER R.COOLING
2511301
9999999
Not Available
13
SPRING BAND CLAMPS; 32/12
7080843
$7,34 Unit Price incl. VAT
14
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
15
CLAMP 1 IN HOSE
7080585
$7,34 Unit Price incl. VAT
16
CLOSE-OFF EXCHANGER
2511304
9999999
Not Available
17
SPRINGBAND CLAMP; 27/12; GREEN
7080841
$13,64 Unit Price incl. VAT
18
HOSE BYPASS OUT/TEE IN
5411611
9999999
Not Available
19
CLAMP HOSE 1.375 VNL ECOATED
7080908
9999999
Not Available
20
CLAMP HOSE SS
7080560
$20,99 Unit Price incl. VAT
21
HOSE TEE OUT/PUMP IN
5411613
9999999
Not Available
22
CONNECTOR TEE(1 IN.)
7052087
9999999
Not Available
23
HOSETEE/CENTER COOLER W/SPR
5411616
9999999
Not Available
24
HOSE TEE OUT/TEE IN
5411718
9999999
Not Available
25
TUBING-CONVOLUTED 1.25 X3
5521510
9999999
Not Available
26
HOSE TEE/BOTTLE 3/4
5411909
9999999
Not Available

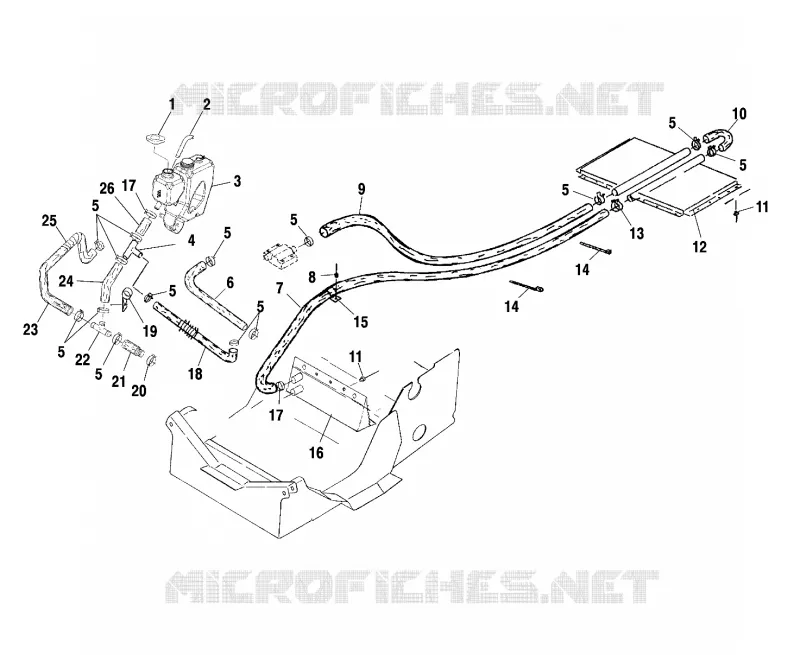

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
