ENGINE, DIPSTICK & OIL FILTER for POLARIS POLARIS XPEDITION XP5 ULTIMATE from 2024

ENGINE, CYLINDER HEAD AND VALVES

ENGINE, EXHAUST SYSTEM

ENGINE, DIPSTICK & OIL FILTER

1

DIPSTICK ASSEMBLY

3023488

$68,24 Unit Price incl. VAT

1

WRENCH-8MMX10MM OPEN END

Not Available

2

O RING; 12 MM X 2 MM

5414047

$6,81 Unit Price incl. VAT

2

OIL FILL TUBE ASSEMBLY

1204547

$83,99 Unit Price incl. VAT

2

DOOR-DISPLAY 7 BLK

5456644070

Not Available

3

SEAL-HOOD DOOR

5814975

$6,29 Unit Price incl. VAT

3

HEX FLANGE SCREW; 6 MM X 20 MM

7518576

$6,29 Unit Price incl. VAT

4

HOOD CAP; BLK

5456423070

Not Available

4

BRACKET; TUBE; OIL FILL LOWER

5255453

$16,79 Unit Price incl. VAT

5

COVER-BREATHER MACH

5143720

5145419

$73,49 Unit Price incl. VAT

5

SIDE COVER GROMMET

5433833

$7,78 Unit Price incl. VAT

6

LATCH-TOP

5457109

$9,44 Unit Price incl. VAT

6

COVER BREATHER SEAL

5813759

$52,49 Unit Price incl. VAT

7

COVER-WIRE 7 DISPLAY

5457107

$52,49 Unit Price incl. VAT

7

SCR-SH-M6X1.0X16 8.8 ZPY D204

7519303

$7,34 Unit Price incl. VAT

8

LATCH-BOTTOM

5457110

$7,34 Unit Price incl. VAT

8

OIL TO WATER COOLER

1240820

$188,99 Unit Price incl. VAT

9

HINGE-FRICTION 0.8NM

7082631

$15,74 Unit Price incl. VAT

9

O-RING; .612 X .818 X .103

5413837

$9,44 Unit Price incl. VAT

10

SCR-TXPH-M4X0.7X12 8.8 ZPC P30

7521320

$7,34 Unit Price incl. VAT

10

FILTER ADAPTER SEAL

3610348

$17,84 Unit Price incl. VAT

11

OIL FILTER ADAPTER; MACHINED

5142156

$83,99 Unit Price incl. VAT

11

WRENCH-8MMX10MM OPEN END

Not Available

12

SPRING-LATCH

7045507

$12,59 Unit Price incl. VAT

12

SCR-HXSOC M8X25 ZPC

7518142

$19,94 Unit Price incl. VAT

13

PLUG-HOLE 1/2

7081057

$7,34 Unit Price incl. VAT

13

FILTER ADAPTOR; STRAIGHT

2521530

$68,24 Unit Price incl. VAT

14

10 MICRON OIL FILTER

2540086

$19,20 Unit Price incl. VAT

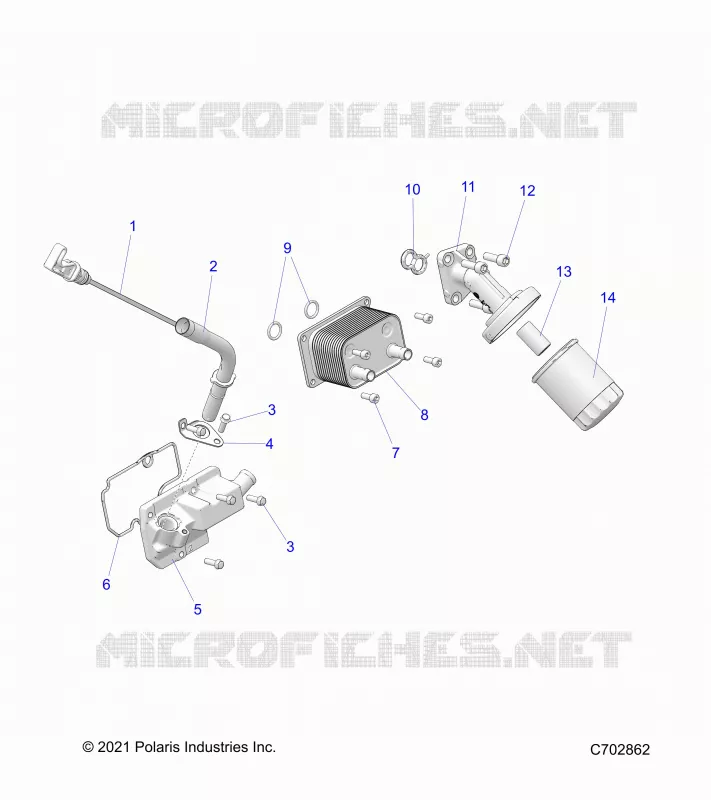

Find the detailed ENGINE, DIPSTICK & OIL FILTER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
