DRIVE TRAIN, CLUTCH COVER AND DUCTING for POLARIS RZR XP TURBO from 2021

CHASSIS, MAIN FRAME AND SKID PLATES

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, CLUTCH COVER AND DUCTING

1

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

2

O-RING 0.489 X 0.629 X 0.070

5416606

$6,81 Unit Price incl. VAT

3

DRAIN PLUG; 9/16-18

5454915

$10,49 Unit Price incl. VAT

4

DECAL-BELT CAUTION/CHECK

7177469

Not Available

5

HEX HEAD FLANGE BOLT 10MM X 1.5MM X115MM

7518526

$5,76 Unit Price incl. VAT

6

HEX FLANGE SCREW 12MM X 1.75MM X 245MM

7518970

$41,99 Unit Price incl. VAT

7

SCR-TXBH-M10X1.5X45 8.8ZOD P30

7520323

$10,49 Unit Price incl. VAT

8

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

9

HEX FLANGE NUT; 12 MM X 1.75 MM

7547441

$9,44 Unit Price incl. VAT

10

WSHR FLAT INN DIA 10.5 OUT DIA

7556155

$9,44 Unit Price incl. VAT

11

CLUTCH COVER SEAL; OUTER

5416207

$68,24 Unit Price incl. VAT

12

SCREW 6 MM X 1.0 MM X 25 MM

7519754

$7,34 Unit Price incl. VAT

13

INLET COVER

5416440

$68,24 Unit Price incl. VAT

14

INLET CLUTCH DUCT

5416743

$377,99 Unit Price incl. VAT

15

BELT SCREEEN BRACKET

5266524

9999999

Not Available

16

CLUTCH HOSE AIR OUTLET

5416489

$136,49 Unit Price incl. VAT

17

INLET CLUTCH DUCT SEAL PLATE

5633909

$68,24 Unit Price incl. VAT

18

OUTLET DUCT MOUNT

5633826

5634514

$52,49 Unit Price incl. VAT

19

BOLT-M6X1.0X15 PH/TX-OLIVE D

7518656

$7,34 Unit Price incl. VAT

20

TRANSJOINT BRACKET; MAG; MACHINED

5139822

5144809

$89,24 Unit Price incl. VAT

20

BRKT-TRANSJOINT MAG MACH

5143634

5144809

$89,24 Unit Price incl. VAT

21

HEX HEAD FLANGE BOLT; 10 MM X 45 MM

7518531

$9,44 Unit Price incl. VAT

22

O-RING-2.25X2.625X.21 NBR BARB

5417662

$15,74 Unit Price incl. VAT

22

O-RING; 2.25 X 2.625 X .21; FKM

5416417

$25,19 Unit Price incl. VAT

23

WORM DRIVE CLAMP; .44 W X 4.25 DIA

7080813

$7,34 Unit Price incl. VAT

24

COVER-CLUTCH INNER MACH

5144058

2209338

$556,49 Unit Price incl. VAT

24

INNER CLUTCH COVER

5142589

2209338

$556,49 Unit Price incl. VAT

25

O-RING SEAL; .128 X 7.895

5415647

$3,14 Unit Price incl. VAT

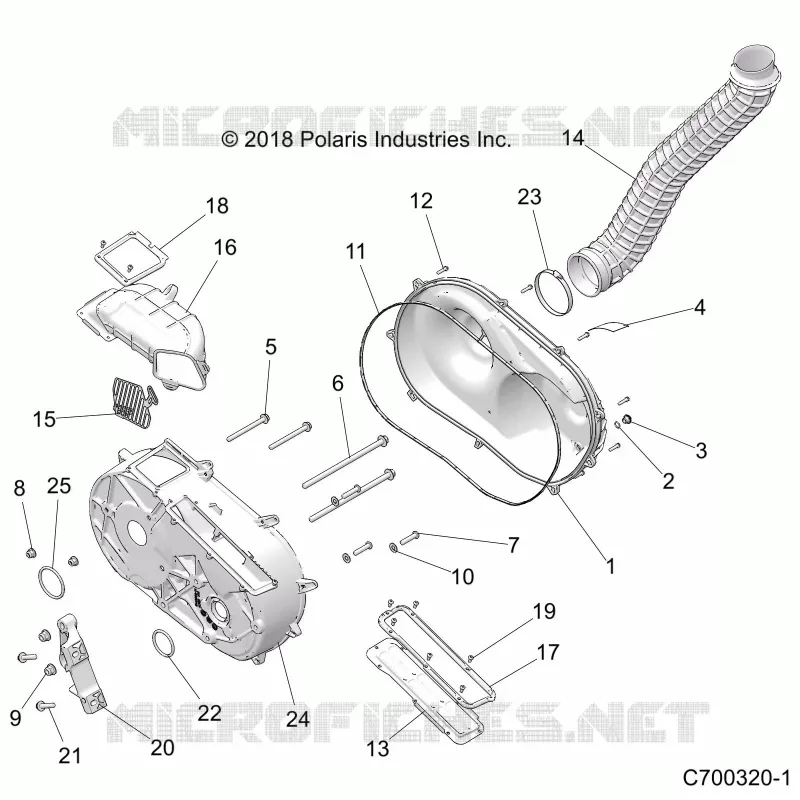

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for RZR XP TURBO

DASHBOARD

DASHBOARD STORAGE

DECALSS

DOORSS

FLOOR

FRONT BUMPER

BODY, FUEL LINES, EVAP

BODY, FUEL LINES, STD.

FUEL TANK

BODY, PASSENGER GRAB BAR

HOOD AND FRONT BODY WORK

REAR BODYWORK BUMPER

REAR BODYWORK CLOSEOFF

REAR BODYWORK FENDERS AND BEZELS- Z21NAE92AG/BG/AX/BX (C700248-8)

REAR BODYWORK RACK

ROCKER PANELS

SEAT ASM. AND SLIDER

SEAT BELT MOUNTING

BRAKES, BRAKE LINES AND MASTER CYLINDER

FRONT BRAKE CALIPER

BRAKES, PEDAL AND MASTER CYLINDER

BRAKES, REAR CALIPER

CHASSIS, CAB FRAME

CHASSIS, MAIN FRAME AND SKID PLATES

DRIVE TRAIN, CLUTCH COVER AND DUCTING

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, FRONT GEARCASE MOUNTING

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, HALF SHAFT, FRONT

DRIVE TRAIN, HALF REAR SHAFT

DRIVE TRAIN, MAIN GEARCASE INTERNALS

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PROP SHAFT

DRIVE TRAIN, SECONDARY CLUTCH

ELECTRICAL, BATTERY

ELECTRICAL, DASH INSTRUMENTS AND CONTROLS

ELECTRICAL, ECU, REGULATOR, ETC.

ELECTRICAL, HEADLIGHTS AND TAILLIGHTS

ELECTRICAL, WIRE HARNESS

ENGINE, AIR INTAKE MANIFOLD

ENGINE, AIR INTAKE SYSTEM

CAM CHAIN AND TENSIONER

ENGINE, COOLING SYSTEM

COOLING, AUX. SYSTEM

CRANKCASE

ENGINE, CRANKSHAFT AND BEARINGS

CYLINDER AND PISTON

ENGINE, CYLINDER HEAD AND VALVES

ENGINE, DIPSTICK & OIL FILTER

ENGINE, EXHAUST SYSTEM

ENGINE, MOUNTING

OIL PAN

OIL PUMP

STARTER

ENGINE, STATOR AND FLYWHEEL

ENGINE, THROTTLE BODY AND VALVE COVER

ENGINE, THROTTLE PEDAL

ENGINE, TURBO CHARGER

ENGINE, TURBO CHARGER MOUNTING

ENGINE, WATERPUMP AND BYPASS

REFERENCE, OWNERS MANUAL AND TOOL KIT

STEERING, RACK AND PINION

STEERING

FRONT SUSPENSION CARRIER AND HUB

FRONT SUSPENSION CONTROL ARMS

SUSPENSION, FRONT SHOCK

SUSPENSION, FRONT SHOCK MOUNTING

SUSPENSION, FRONT, STABILIZER BAR

SUSPENSION, REAR CARRIER AND HUB

REAR SUSPENSION CONTROL ARMS

REAR SUSPENSION SHOCK

SUSPENSION, REAR SHOCK MOUNTING

SUSPENSION, STABILIZER BAR, REAR

WHEELS, FRONT

WHEELS, REAR

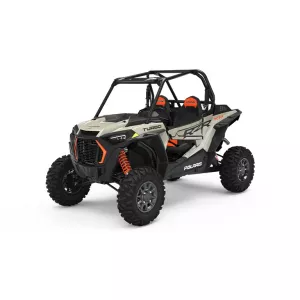

POLARIS RZR XP TURBO 2021
