1
Engine displacement
600
2
Year
2002
3
Trim
600 XC SP
4
Parts Catalog
REAR TORQUE ARM
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM
by
DRIVE TRAIN
REAR TORQUE ARM
1
2
3
4
5
6
6
7
8
8
8
9
10
11
12
13
13
13
14
15
16
17
18
19
20
20
20
20
20
20
21
22
23
24
24
24
25
25
25
26
26
27
28
29
30
31
32
33
1
2
3
4
5
6
6
7
8
8
8
9
10
11
12
13
13
13
14
15
16
17
18
19
20
20
20
20
20
20
21
22
23
24
24
24
25
25
25
26
26
27
28
29
30
31
32
33
1
WELD-REAR TORQUE ARMRED
1541561293
Not Available
2
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
3
SCREW
7512410
7515540
$9,44 Unit Price incl. VAT
4
THRUST WASHER
7555945
$11,54 Unit Price incl. VAT
5
ARM SHAFT
5333758
9999999
Not Available
6
BUSHING
3514331
$34,64 Unit Price incl. VAT
7
SCREW
7515415
9999999
Not Available
8
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
9
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
10
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
11
SCREW
7517435
$22,56 Unit Price incl. VAT
12
ARM ASSEMBLY
1541461
9999999
Not Available
13
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
14
SPACER WHEEL
5132388
9999999
Not Available
15
WHEEL ASSEMBLY
1590278
9999999
Not Available
16
WASHER THRUST
7555787
9999999
Not Available
17
TORSION SPRING SLEEVE
5431923
9999999
Not Available
18
ROLLER SPRING ADJ SQUARE
5432983
$19,94 Unit Price incl. VAT
19
PUSH ON CLIP
7080394
$4,19 Unit Price incl. VAT
20
TORSION SPRING .405 77 LEFT SIDE GS BLK
7041940067
Not Available
20
TORSION SPRING .405 77 RIGHT SIDE GS BLK
7041941067
Not Available
20
SPRING TORSION .359/77 RH BLK
7041630067
Not Available
20
SPRING TORSION .359/77 LH BLK
7041629067
Not Available
20
SPRING-TORS.375SQ/77 ;RH;BLK
7041943067
Not Available
20
SPRING-TORS.375SQ/77 LHBLK
7041942067
Not Available
21
SCREW
7517232
$36,74 Unit Price incl. VAT
22
SHAFT .740X.390X7.055 6066
5333873
9999999
Not Available
23
BOLT
7515514
$13,64 Unit Price incl. VAT
24
WAVE SPRING WASHER
7555795
$2,09 Unit Price incl. VAT
25
BUSHING .378 X .616 X 1.12
5132391
$13,64 Unit Price incl. VAT
26
ROD SHOCK
1541479067
Not Available
27
SCREW-3/8-24X3.75-HX/P-80-GR8Y
7517851
$11,54 Unit Price incl. VAT
28
BUSHING NUT; .616 X 1.12 X .875
5132390
$40,94 Unit Price incl. VAT
29
SLEEVE; .385 X .560 X 1.30
5333907
9999999
Not Available
30
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
31
SPACER .397X.562X1.250
5333904
9999999
Not Available
32
SHOCK R/T FOX PPS
7041846
9999999
Not Available
33
BUSHING
5010422
$18,89 Unit Price incl. VAT

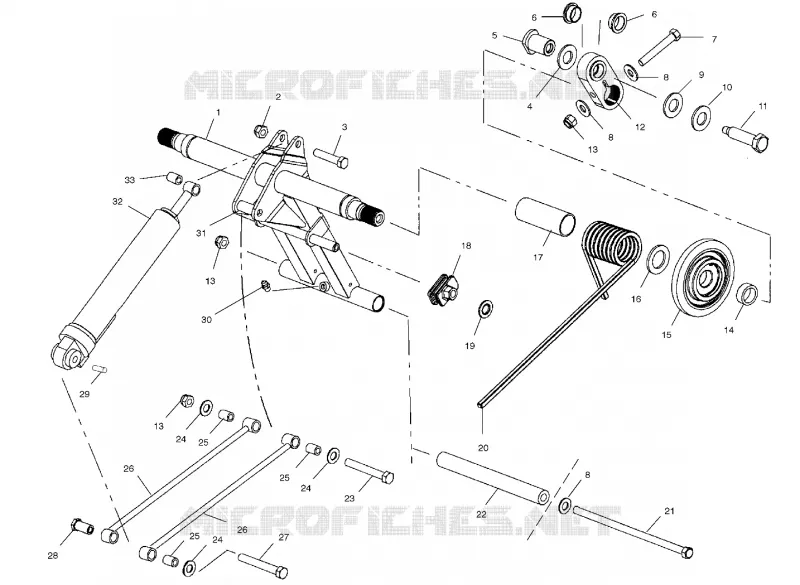

Find the detailed REAR TORQUE ARM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
