STEERING for POLARIS RANGER 570 EU / ZUG / TRACTOR from 2021

STEERING

1

ASM-TILT STEER RVTD M10 MT BLK

1824719458

Not Available

2

STEERING BUSHING

7556675

$24,14 Unit Price incl. VAT

3

STEERING WHEEL; 14 IN.

1823623

$246,74 Unit Price incl. VAT

4

STEERING WHEEL CAP

5436536

$62,99 Unit Price incl. VAT

5

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

6

BOLT-M10X1.25X130 HXFLG-OLIVED

7518665

$25,19 Unit Price incl. VAT

7

NUT-HEX-M16X2 8 ZC NYL

7547506

$7,34 Unit Price incl. VAT

8

OIL LOCKING SHOCK ASSEMBLY

7044098

$178,49 Unit Price incl. VAT

9

SHOULDER BOLT; 8-16 MM; 6 MM X 1.0 MM

7518786

$4,19 Unit Price incl. VAT

10

NYLOK NUT

7546703

$2,09 Unit Price incl. VAT

11

STEERING GEAR BOX ASSEMBLY

1824521

$1 049,99 Unit Price incl. VAT

12

FLAT WASHER

7558402

$1,56 Unit Price incl. VAT

13

HEX BOLT; 8 MM X 1.25 MM X 95 MM

7518935

$3,14 Unit Price incl. VAT

14

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518702

$7,34 Unit Price incl. VAT

15

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

16

WASHER

7556099

$3,14 Unit Price incl. VAT

17

HEX FLANGE SCREW 10 MM X 1.25 MM X 75 MM

7519854

$31,49 Unit Price incl. VAT

18

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

19

POWER STEERING ASSEMBLY; LT

2414881

9999999

Not Available

20

POWER STEERING BRACKET; BLACK

5258708329

Not Available

21

SCREW

7517281

$13,64 Unit Price incl. VAT

22

BOLT-M8X1.25X25 HXFLG-OLIVE D

7518514

$3,14 Unit Price incl. VAT

23

HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM

7518558

$7,34 Unit Price incl. VAT

24

STEERING SHAFT; UPPER/LOWER

1824162

$272,99 Unit Price incl. VAT

25

HEX FLANGE SCREW 10 MM X 1.50 MM X 35 MM

7518644

$9,44 Unit Price incl. VAT

26

NUT-NY INS;M10X1.5;HEX;ZINC;YW

7547385

$2,09 Unit Price incl. VAT

27

HEX FLANGE SCREW; 8 MM X 1.25 MM X 35 MM

7519052

$3,14 Unit Price incl. VAT

28

COVER-STEERING COLUMN;UPR;BLK

5451478070

Not Available

29

COVER-STEERING COLUMN;LWR;BLK

5451479070

Not Available

30

STEERING SHAFT; UPPER

1824164

$325,49 Unit Price incl. VAT

31

STEERING SHAFT WITH JOINT; LOWER

1824163

$367,49 Unit Price incl. VAT

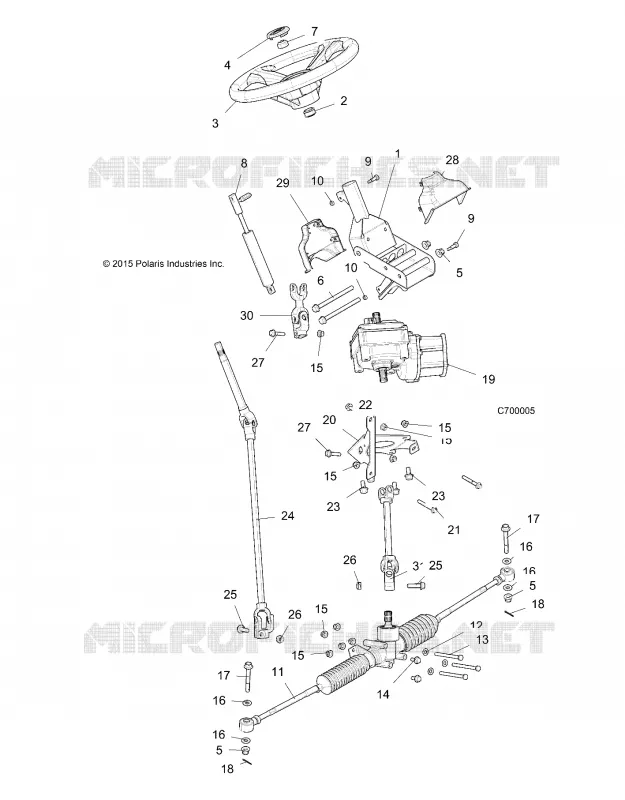

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
