STEERING ASSEMBLY 250 2X4 for POLARIS TRAIL BOSS 2X4

PAD; HANDLEBAR

5810379

9999999

Not Available

SPACER

5010266

9999999

Not Available

BUSHING

7556401

9999999

Not Available

BOLT

7512286

7515197

$2,09 Unit Price incl. VAT

BELT-DRIVE(5)

3211048

3211077

$107,93 Unit Price incl. VAT

MOUNT HDLBR. PAD

5220946

9999999

Not Available

BLOCK HANDLEBAR

5630187

9999999

Not Available

CLUTCH DRIVEN 3 ANGLE

1322163

1322182

$923,99 Unit Price incl. VAT

DOMED WASHER

5220646

$4,19 Unit Price incl. VAT

TUBE HANDLEBAR

5224316132

Not Available

POST STEERING

1843028067

Not Available

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

BOLT

7515327

$10,49 Unit Price incl. VAT

BUSHING STRG. UPPER

5430966

5433416

$16,79 Unit Price incl. VAT

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

WASHER 1.5 X 2.0 X .020

7555898

$2,09 Unit Price incl. VAT

WASHER 1.505 X 2.00 X 0.30

7556804

$1,56 Unit Price incl. VAT

FLAT WASHER

7558402

$1,56 Unit Price incl. VAT

BUSHING MOVEABLE 1/2 INCH

3576504

$41,99 Unit Price incl. VAT

BRKT UP.STRG.BUSH BLK.

5220887067

Not Available

BUSHING MOVEABLE 1 IN

3576511

$52,49 Unit Price incl. VAT

TIE ROD ASM. Substituted by 1822307

1822070

Not Available

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

CLUTCH SPRING; RED

7041198

$104,99 Unit Price incl. VAT

NUT CASTLE(10)

7546904

9999999

Not Available

RAMP STATIONARY

5630321

5145721

Not Available

SUPPORT;LH STRUT&SPINDLE

5130655

5130803

Not Available

RETAINING RING

7714401

9999999

Not Available

SUPPORT;RH STRUT&SPINDLE

5130656

9999999

Not Available

BOLT (10)

7511854

$2,09 Unit Price incl. VAT

BALL JOINT

7080364

7061306

$52,49 Unit Price incl. VAT

BALL JOINT BRACKET

5211121

$62,99 Unit Price incl. VAT

BUTTON RAMP

5430766

5450873

$11,54 Unit Price incl. VAT

SOCKET BOLT

7512284

$2,09 Unit Price incl. VAT

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

BOLT(10)

7515458

7512492

$2,09 Unit Price incl. VAT

O RING

5410458

9999999

Not Available

BEARING A ARM

3576509

9999999

Not Available

BUSHING A-ARM

3563604

9999999

Not Available

WASHER

7555774

9999999

Not Available

A-FRAME RH

1580029067

Not Available

A-FRAME LH

1580028067

Not Available

SHAFT;A ARM

5020477

9999999

Not Available

COTTER PIN

7661404

$9,44 Unit Price incl. VAT

BUSHING

7555781

9999999

Not Available

BUSHING STRG. LOWER

5430895

9999999

Not Available

BUSHING

7556401

9999999

Not Available

RIVET; (MONOBOLT)

7661620

7661637

$2,09 Unit Price incl. VAT

SCREW

7512307

$7,34 Unit Price incl. VAT

BRKT;IGN.PANEL

5220965

9999999

Not Available

NYLOK NUT

7542122

$2,09 Unit Price incl. VAT

GRIP; HANDLEBAR

5431030

5433834-070

$52,49 Unit Price incl. VAT

BOLT

7512265

9999999

Not Available

TIE ROD

5020478

9999999

Not Available

ROD END; RH

7060138

9999999

Not Available

ROD END

7060147

9999999

Not Available

NUT; RH; 10 MM.

7546901

9999999

Not Available

NUT LH 10 MM.

7546902

9999999

Not Available

KIT BALL JOINT

2200290

9999999

Not Available

DECALORIDE SWITCH

7072390

9999999

Not Available

DECAL THROTTLE(ENG.)

7072724

9999999

Not Available

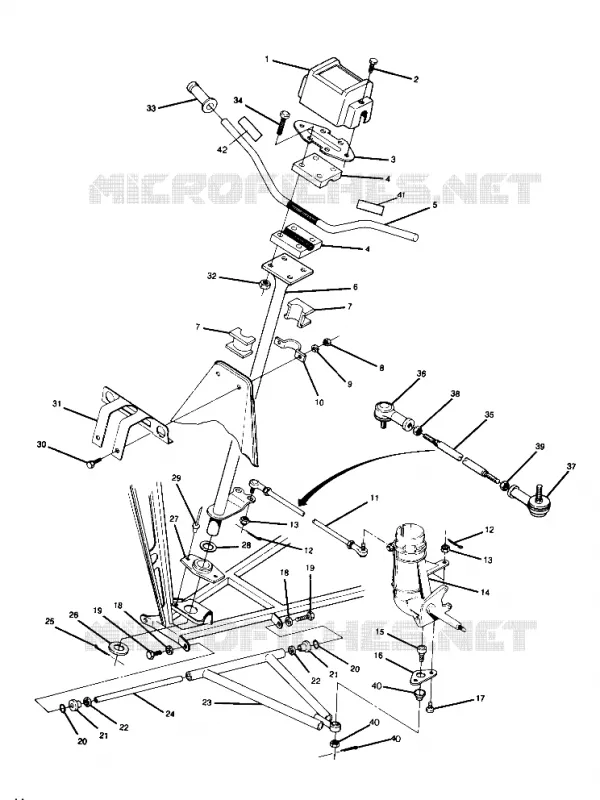

Find the detailed STEERING ASSEMBLY 250 2X4 POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
