1
Engine displacement
550
2
Year
2010
3
Trim
SPORTSMAN EPS 550 INTL - A10ZX55FX/FF
4
Parts Catalog
WIRE HARNESS
5
Parts Diagram
Parts Catalog
TAIL LAMPS
by
IGNITION SYSTEM
WIRE HARNESS
1
1
1
1
1
2
3
4
5
5
6
6
7
8
9
9
10
11
12
12
13
14
15
16
1
THROTTLE POSITION SENSOR HARNESS KIT
2878498
$220,49 Unit Price incl. VAT
1
HARNESS KIT; HANDLEBAR SWITCH
2877772
9999999
Not Available
1
HARNESS KIT; HANDLEBAR SWITCH
2877771
$257,24 Unit Price incl. VAT
1
HANDLEBAR SWITCH HARNESS KIT
2877773
$262,49 Unit Price incl. VAT
1
HARNESS-MAIN SINGLE INT L
2411312
9999999
Not Available
2
RELAY-SPST SERIES 303 SEALED
4011283
4016819
$68,24 Unit Price incl. VAT
3
FUSE PARK 20 AMP (10)
2434017
4012811
$15,74 Unit Price incl. VAT
4
FUSE 10 AMP
2434016
$10,49 Unit Price incl. VAT
5
DIODE-6AMP 1/4 3/16 TERM
2411035
$104,99 Unit Price incl. VAT
6
RESISTOR MODULE HARNESS KIT
2204890
$257,24 Unit Price incl. VAT
7
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
8
EPS REPAIR RELAY KIT
2204853
$152,24 Unit Price incl. VAT
9
SEALED CIRCUIT BREAKER 8 AMP
2411228
9999999
Not Available
10
FASTNER-PUSH-ON CLIP;.250
7670125
$11,54 Unit Price incl. VAT
11
BRKT-FUSE BLOCK
5253502
9999999
Not Available
12
FUSIBLE LINK KIT; 1.0 MM
2202670
$68,24 Unit Price incl. VAT
12
FUSIBLE LINK KIT; 0.8 MM
2202607
$73,49 Unit Price incl. VAT
13
MAIN FUSE; 30 AMP
2434015
$15,74 Unit Price incl. VAT
14
LABEL-FUSE BOX
7175635
9999999
Not Available
15
DIAGNOSTIC COVER WITH CLIP
4012170
4083556
$15,00 Unit Price incl. VAT
16
HOSE CLAMP
7080807
$17,84 Unit Price incl. VAT

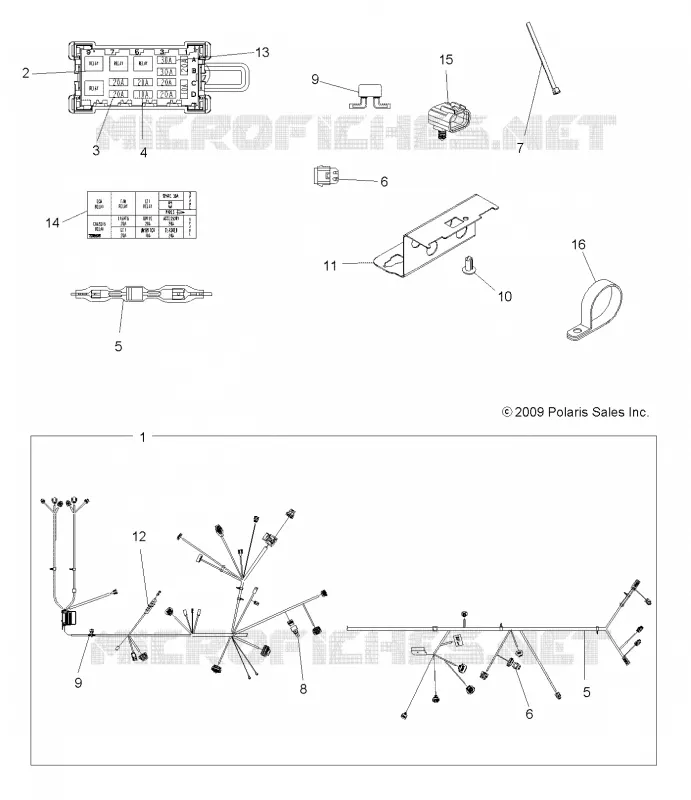

Find the detailed WIRE HARNESS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
