BODYWORK for POLARIS 550 INDY 144 from 2022

BODYWORK

1

STUD 1/4TH TURN

7662246

$18,89 Unit Price incl. VAT

1

1/4 TURN RETAINER; STEEL; 6 MM

7710807

$1,56 Unit Price incl. VAT

2

U CLIP

7670042

$3,14 Unit Price incl. VAT

2

SIDE SCREEN PANEL; RIGHT; GLOSS BLACK

5438348070

Not Available

2

PANEL-SIDE RH HDPE WHITE

5439283599

Not Available

3

SIDE PANEL KIT; RIGHT; FOAM

2634940

$167,99 Unit Price incl. VAT

3

SIDE PANEL; UPPER; RIGHT; FOAM

5813947

$167,99 Unit Price incl. VAT

4

HDPE FENDER; RIGHT

5439838070

Not Available

5

STRAP-RUBBER 79MM

5457665

$10,49 Unit Price incl. VAT

6

SCR-TXTH-M5X0.8X15 T40 ZPB

7519113

$3,14 Unit Price incl. VAT

7

RIVET

7621467

$2,09 Unit Price incl. VAT

8

SIDE SCREEN PANEL; LEFT; GLOSS BLACK

5438347070

Not Available

8

U CLIP

7670042

$3,14 Unit Price incl. VAT

9

AIR OUT SIDE PANEL; LEFT

5450102599

Not Available

9

FOAM-SIDE PANEL W/VENT;LH

5813946

$73,49 Unit Price incl. VAT

9

SIDE PANEL FOAM ASSEMBLY WITH VENT; LEFT

2634973

$89,24 Unit Price incl. VAT

9

FOAM-SIDE PANEL LH

5813497

$26,24 Unit Price incl. VAT

10

FENDER; LEFT HAND; GLOSS BLACK

5439837070

Not Available

11

CATCH HOLE PLUG

5410582

$15,74 Unit Price incl. VAT

12

WASHER

7556044

$7,34 Unit Price incl. VAT

13

EXHAUST OUTLET BOOT; 550

5414474

$62,99 Unit Price incl. VAT

14

EXHAUST DEFLECTOR; RMK

5254057

$62,99 Unit Price incl. VAT

15

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

16

VENT-SIDE PANEL;BLK

5450321070

Not Available

17

SCR-TXTH-M5X0.8X25 T40 ZPB

7520280

$6,29 Unit Price incl. VAT

18

WASHER

7556034

$4,19 Unit Price incl. VAT

19

DART CLIP

7670067

$7,34 Unit Price incl. VAT

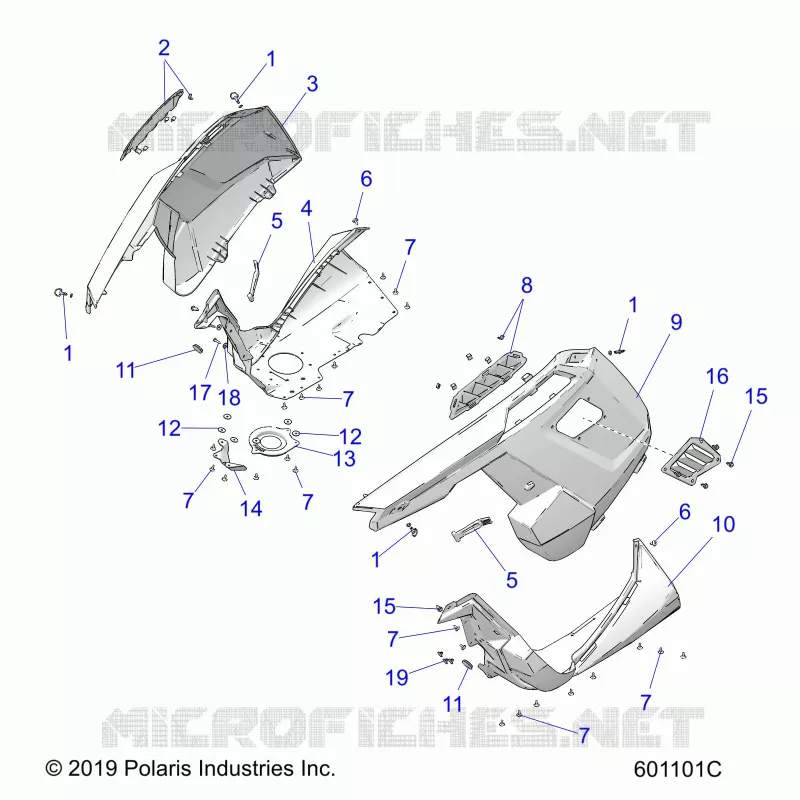

Find the detailed BODYWORK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
