ELECTRICAL/TAILLIGHT for POLARIS A04CH42AQ SPORTSMAN 400 - A04CH42AQ/AR/AS/AT/AV from 2004

ELECTRICAL/TAILLIGHT

1

MAIN HARNESS SPORTSMAN 400/500

2461192

9999999

Not Available

1

FUSIBLE LINK KIT

2202147

9999999

Not Available

2

RESISTOR MODULE HARNESS KIT

2204890

$257,24 Unit Price incl. VAT

3

ASM-TAILLIGHT 12V SERIES FIL

2410320

9999999

Not Available

4

TAIL LIGHT LENS

4032046

$62,99 Unit Price incl. VAT

5

SCREW

4032029

$9,44 Unit Price incl. VAT

6

BULB (10)

4030043

$12,59 Unit Price incl. VAT

7

GASKET

4032045

$7,34 Unit Price incl. VAT

8

BACKING TAILLIGHT

4032064

9999999

Not Available

9

PUSH-ON NUT

7670054

$2,09 Unit Price incl. VAT

10

HEX NUT

7542105

$7,34 Unit Price incl. VAT

11

SPRING LOCK WASHER

7552801

$3,14 Unit Price incl. VAT

12

WASHER

7571602

$9,44 Unit Price incl. VAT

13

SCREW

7512027

$2,09 Unit Price incl. VAT

14

BATTERY PAD

5810290

5810290-CO

$13,64 Unit Price incl. VAT

15

CABLE BATT/SOLENOID RED

4010094

9999999

Not Available

16

KIT-BATTERY BOLT (SHORT)

2200361

9999999

Not Available

17

CABLE BATT/ENG. BLK.

4010095

9999999

Not Available

18

BATTERY STRAP HOOK

7010032

9999999

Not Available

19

BATTERY HOLD DOWN STRAP

5412499

5418182

$9,44 Unit Price incl. VAT

19

STRAP BATTERY HOLDDOWN

5410424

5418182

$9,44 Unit Price incl. VAT

20

14AH BATTERY; SEALED AND CHARGED

4010774

$178,49 Unit Price incl. VAT

21

FUSIBLE LINK KIT

2202147

9999999

Not Available

22

CABLE; SOL/STARTER

4010093

$89,24 Unit Price incl. VAT

23

SCREW(10)

7512018

$6,29 Unit Price incl. VAT

24

PAD

5810455

$6,29 Unit Price incl. VAT

25

MODULE-LOAD SHED;LR 64

4010970

9999999

Not Available

26

BRKT-CDI DIGITAL LONG

5246747

9999999

Not Available

27

SCREW

7512024

$9,44 Unit Price incl. VAT

28

CONTROLLER MODULE-FAN;CIR;REG

4010937

2203348

$241,49 Unit Price incl. VAT

29

SCREW

7512024

$9,44 Unit Price incl. VAT

30

NUT NYLOK 10-24 Y

7541925

$1,56 Unit Price incl. VAT

31

ROSEBUD CLIP

4020139

$9,44 Unit Price incl. VAT

32

ROSEBUD CLIP

4020149

$12,59 Unit Price incl. VAT

33

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

34

CABLE TIE MOUNT; .25

7080965

$13,64 Unit Price incl. VAT

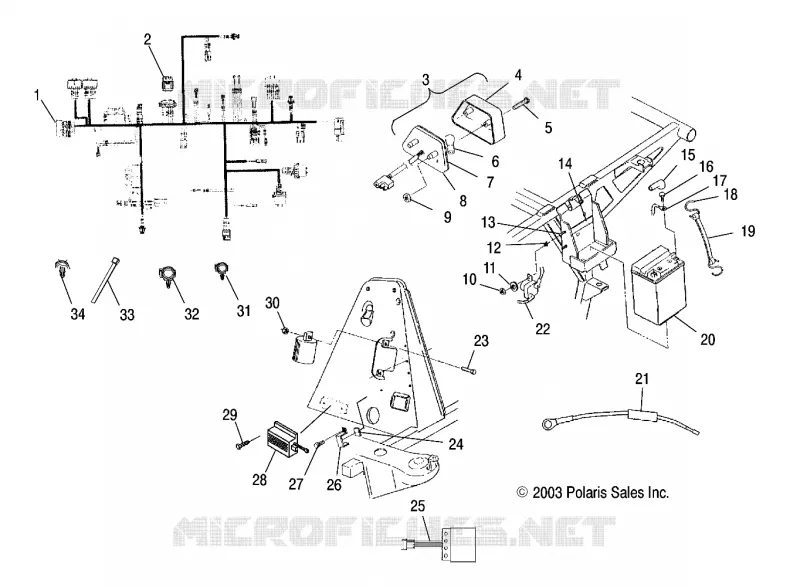

Find the detailed ELECTRICAL/TAILLIGHT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
