1
Engine displacement
500
2
Year
2001
3
Trim
500 XC
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
EXHAUST
by
CARBURETOR
ENGINE MOUNTING
1
2
3
4
5
6
7
8
9
10
10
10
10
11
12
12
13
13
13
14
14
15
15
16
16
16
16
16
16
16
16
17
17
17
18
18
18
19
19
19
19
20
21
22
23
23
23
23
23
24
25
26
27
28
1
SCREW M14X1.5X215
7517501
7518412
$52,49 Unit Price incl. VAT
2
WASHER
7556003
$11,54 Unit Price incl. VAT
3
WASHER CLUTCH RET.
5131872
5132441
$41,99 Unit Price incl. VAT
4
SPARK PLUG
3070190
$7,34 Unit Price incl. VAT
5
SHT.BLK KIT S50-44-PO (S5044POA2 2042)
2201660
Not Available
6
DECAL-FUEL SHUT OFF
7078317
Not Available
7
HANDLE RECOIL
5431499
9999999
Not Available
8
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
9
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
10
STRAP-ENGINE MOUNTS44RH
5244952
9999999
Not Available
10
STRAP-ENGINE MOUNTS44LH
5244951
9999999
Not Available
11
MOUNT-ENGINE 3/8-16 50 DUR
3021290
9999999
Not Available
12
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
13
BOLT
7512539
$7,34 Unit Price incl. VAT
14
ENGINE MOUNT
3021206
9999999
Not Available
15
SCR-3/8-16X1-P30-SPEC-Y
7517854
$10,49 Unit Price incl. VAT
16
WELD-ENG MOUNT BRKT;LH
1013397
9999999
Not Available
16
BRKT-ENGINE MOUNT;RH;FORMED
5245044
9999999
Not Available
17
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
18
FLEX LOCK; NUT
7547008
$11,54 Unit Price incl. VAT
19
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
20
DESC NOT_AVAILABLE
836005215
Not Available
21
FUEL LINE; 600 CM
8450040600
Not Available
22
PUMPFUEL1 OUTLET
2520135
9999999
Not Available
23
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
24
FUEL LINE; 1/4 ID
84500031525
Not Available
25
LINE; FUEL;600CM;SVC
8350018600
Not Available
26
FUEL VALVE PLASTIC 90 DEGREES 1/4 HOSE
7052249
$52,49 Unit Price incl. VAT
27
FUEL LINE ETHER RED 5/16# Substituted by 8350017-160
8350017600
Not Available
28
THROTTLE CABLE
7080867
$57,95 Unit Price incl. VAT

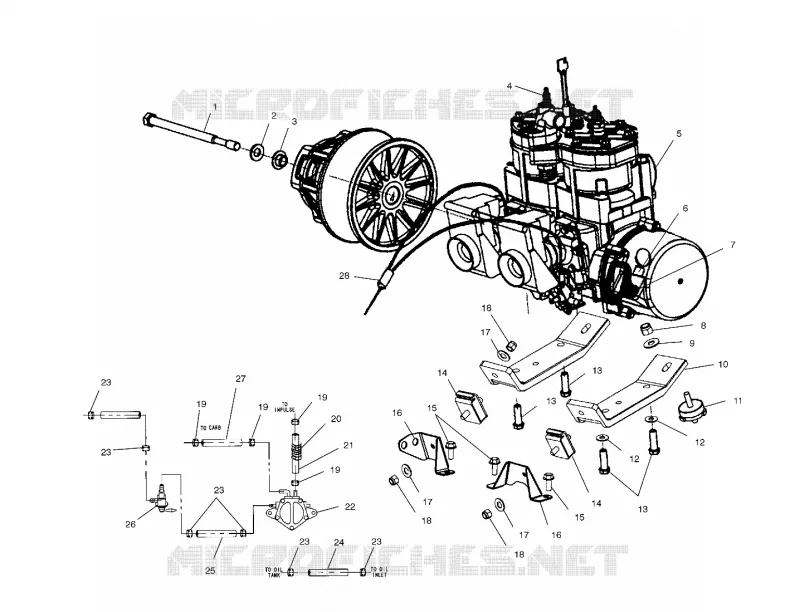

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
