Parts Catalog
FRONT TRACK SHOCK (CLEAR)
5
Parts Diagram
Parts Catalog
FRONT WISHBONES
by
REAR TRACK SHOCK (7044566)
FRONT TRACK SHOCK (CLEAR)
-
3
4
5
6
7
8
8
9
9
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
-
SHOCK-F/T W/E SHORT CLEAR ANOD
7044574
9999999
Not Available
2
STUD; CLICKER (400613)
1800352
$57,74 Unit Price incl. VAT
3
CLICKER KNOB
1800460
9999999
Not Available
4
BODY RES 2IN CLEAR (1120334)
1800523
9999999
Not Available
5
RING-SNAP
1800159
$10,49 Unit Price incl. VAT
6
SCREW 10X5/8 BTN SS (500603)
1800357
$6,29 Unit Price incl. VAT
7
SPRING RETAINER
1800046
$68,24 Unit Price incl. VAT
8
SLEEVE; 1.15L
1800405
$62,99 Unit Price incl. VAT
9
BUSHING
1800406
$9,44 Unit Price incl. VAT
10
O-RING (WER-400614)
1800501
$13,64 Unit Price incl. VAT
11
ASM IFP PISTON 1.75BLD 0624204
1800739
$68,24 Unit Price incl. VAT
12
O-RING
1800184
$10,49 Unit Price incl. VAT
12
BRKT-SEAT GROMMET
5261865
$20,99 Unit Price incl. VAT
13
BODY O-RING
1800030
$3,66 Unit Price incl. VAT
14
BALL-D-TENT(10)
1800127
$12,59 Unit Price incl. VAT
15
SPRING-D-TENT(10)
1800128
$20,99 Unit Price incl. VAT
16
BODY FT 5.90L CLR 1400105-AC
1800787
9999999
Not Available
17
SEAL HEAD ASSEMBLY
1800788
$220,49 Unit Price incl. VAT
18
SHAFT LOOP
1800408
9999999
Not Available
19
SHAFT; .50 X 6.73
1800789
9999999
Not Available
20
CRIMP NUT 3/8 IN
1800031
$7,34 Unit Price incl. VAT
21
BUMP STOP; 1.58 X .73
1800649
$68,24 Unit Price incl. VAT
22
ICE SCRAPER;.50SHAFT 1600033
1800790
$62,99 Unit Price incl. VAT
23
PISTON CONVEX
1800001
9999999
Not Available
24
TEFLON WEAR BAND
1800297
$62,99 Unit Price incl. VAT
25
WASHER
1800204
9999999
Not Available
26
O-RING BODY
1800027
$3,66 Unit Price incl. VAT
27
ASM END CAP 1.750AV 1024207
1800740
9999999
Not Available
28
ASM. CLICKER PISTON SA-414602
1800791
9999999
Not Available
29
3/8 AN WASHER (10)
1800050
$7,34 Unit Price incl. VAT
30
SHIELD-SHOCK W/E
5452841
$52,49 Unit Price incl. VAT
31
COMPRESSION SPRING 95/280#; MATTE BLACK
7043957458
Not Available
32
SPRING RETAINER; SLOTTED
5020618
$36,74 Unit Price incl. VAT

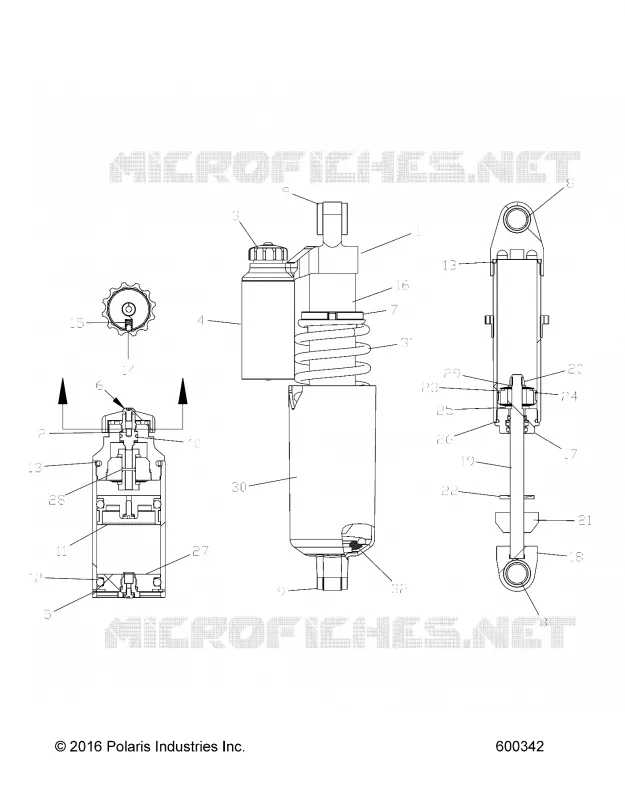

Find the detailed FRONT TRACK SHOCK (CLEAR) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
