1
Engine displacement
500
2
Year
1996
3
Trim
SWEDISH SPORTSMAN 500 - S969244
4
Parts Catalog
CONTROLS
5
Parts Diagram
Parts Catalog
FRONT BRAKE SPORTSMAN 500 W969244 (4936093609B007)
by
CONTROLS
CONTROLS
1
SCREW BUTTON HEAD
2010079
9999999
Not Available
2
DECAL THROTTLE(ENG.)
7072724
9999999
Not Available
3
CAP
2010080
9999999
Not Available
4
PACKING THROTTLE
2010081
9999999
Not Available
5
THROTTLE CONTROL ASM
2010158
9999999
Not Available
6
SWITCH ASM;DEMAND DRIVE
4110166
9999999
Not Available
7
BULB DEMAND-DRIVE IND.
4030047
9999999
Not Available
8
HOLDER
2010078
9999999
Not Available
9
SCREW SEMS
2010077
9999999
Not Available
10
BOLT; HEX.
2010076
9999999
Not Available
11
PLATE
2010075
9999999
Not Available
12
SWITCH
4110203
9999999
Not Available
13
CABLE; THROTTLE
7080617
9999999
Not Available

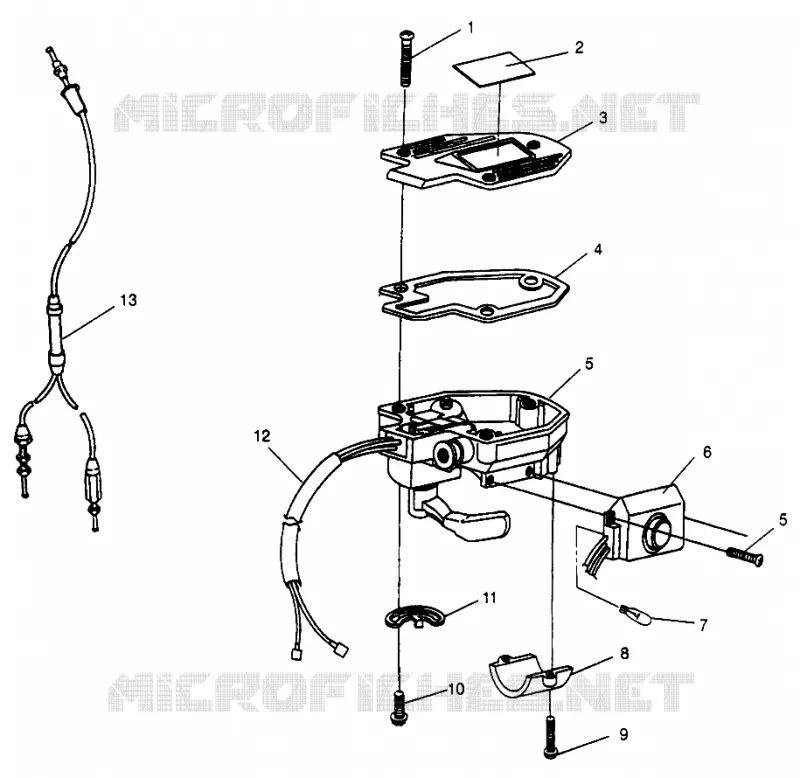

Find the detailed CONTROLS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
