Engine displacement
850
2
Year
2009
3
Trim
SPORTSMAN XP 850 INTL - A09ZN85FL/8CFL
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
by
BATTERY
COOLING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
8
9
9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
ASM-HOSE RADIATOR ENG OUT 25MM
1240407
9990000
Not Available
2
ASM-HOSE-RADIATOR ENG IN 25MM
1240449
5414391
$104,99 Unit Price incl. VAT
3
BOTTLE ASSEMBLY; COOLANT RECOVERY
1240406
$141,74 Unit Price incl. VAT
4
SPORTSMAN XP RADIATOR SHROUD
5437627
2415279
$467,24 Unit Price incl. VAT
5
GROMMET AND INSERT ASSEMBLY
5413509
$30,23 Unit Price incl. VAT
6
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
7
BOLT-M6X1.0X30 HXHD FLG BLK
7518530
$7,34 Unit Price incl. VAT
8
PRESSURE CAP; 13 PSI
1240466
$104,99 Unit Price incl. VAT
9
RADIATOR
1240404
$871,49 Unit Price incl. VAT
10
RADIATOR MOUNT GROMMET; LOWER
5413510
$30,23 Unit Price incl. VAT
11
SCREW-M6X15 THRD FRM
7518918
9999999
Not Available
12
CLIP-SHROUD FAN
5437628
9999999
Not Available
13
CLAMP-HOSE
7081520
9999999
Not Available
14
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
15
GASKET
5810279
$4,19 Unit Price incl. VAT
16
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
17
BOTTLE-COOLANT RECOVERY
5437257
1240406
$141,74 Unit Price incl. VAT
18
RADIATOR FAN SHROUD ASM SPORTSMAN XP
2411578
2415279
$467,24 Unit Price incl. VAT
19
CLAMP-HOSE
7081521
7081192
$14,69 Unit Price incl. VAT
20
COOLANT LINE; 27 CM
845012827
Not Available
21
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
22
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
23
BOLT-M6X1.0X15 HXFLG TAP/R-OD
7518513
9999999
Not Available
24
CLAMP-HOSE 1.312 VINYL COATED
7080851
9999999
Not Available

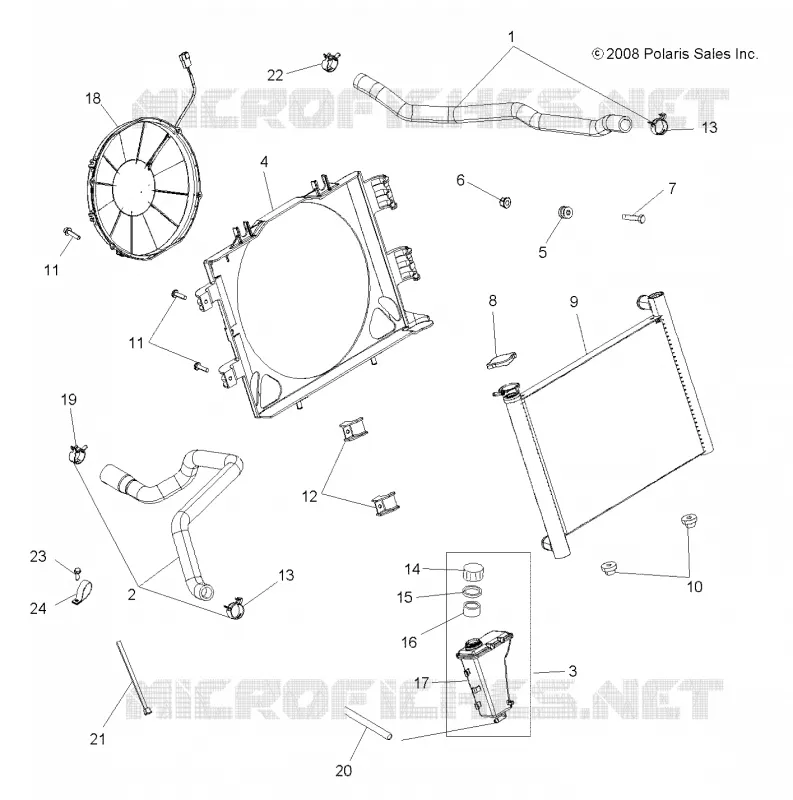

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
