FRONT WHEEL AND BRAKE ASSEMBLY. (4910981098030A)

1

AXLE-WHEEL FRONT [No Longer Available]

1525033

Not Available

2

COLLAR [No Longer Available]

1525046

Not Available

3

NUT [No Longer Available]

1525043

Not Available

4

WASHER SPRING [No Longer Available]

1844026

Not Available

5

WASHER PLAIN [No Longer Available]

1525045

Not Available

6

TIRE FR (3-WHEEL) [No Longer Available]

5410407

Not Available

7

RIM FRONT [No Longer Available]

1525018

Not Available

8

LEVER CAMSHAFT 1 [No Longer Available]

1525030

Not Available

9

BOLT [No Longer Available]

1525020

Not Available

10

NUT [No Longer Available]

1525021

Not Available

11

PLATE INDICATOR [No Longer Available]

1525031

Not Available

12

PIN COTTER [No Longer Available]

1525035

Not Available

14

WASHER PLATE [No Longer Available]

1525037

Not Available

15

PLATE BRAKE SHOE [No Longer Available]

1525028

Not Available

16

O RING [No Longer Available]

1525032

Not Available

17

CAMSHAFT [No Longer Available]

1525029

Not Available

18

SPRING TENSION

1525008

9999999

Not Available

19

BRAKE SHOE COMPL.

1525007

9999999

Not Available

20

BOLT [No Longer Available]

1525040

Not Available

21

DRUM BRAKE [No Longer Available]

1525027

Not Available

22

SEAL OIL

1525004

9999999

Not Available

23

BEARING

1525003

9999999

Not Available

24

HUB FRONT [No Longer Available]

1525038

Not Available

25

RIM VALVE

1525017

$12,59 Unit Price incl. VAT

26

SPACER-BEARING [No Longer Available]

1525039

Not Available

27

COVER HUB DUST [No Longer Available]

1525036

Not Available

28

WASHER-SPRING [No Longer Available]

1525041

Not Available

29

WASHER PLATE [No Longer Available]

1525042

Not Available

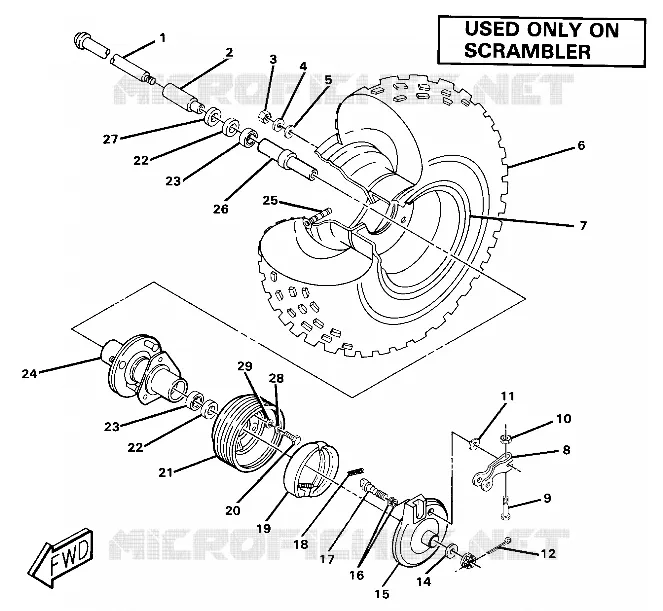

Find the detailed FRONT WHEEL AND BRAKE ASSEMBLY. (4910981098030A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
