1
Engine displacement
550
2
Year
2010
3
Trim
SPORTSMAN XP 550 - A10ZN55AL/AQ/AX
4
Parts Catalog
REAR SUSPENSION
5
Parts Diagram
Parts Catalog
MANUALS INFORMATION
by
FRONT SHOCK
REAR SUSPENSION
1
2
2
2
2
2
16
16
16
4
4
5
5
5
6
6
7
8
8
9
10
11
12
13
14
14
15
16
1
1
1
2
2
16
4
4
4
4
5
6
6
7
7
8
8
9
10
11
12
13
14
15
15
16
1
HEX HEAD FLANGE BOLT 10MM X 1.5MM X140MM
7518467
$10,49 Unit Price incl. VAT
2
HEX FLANGE NUT; 10 MM X 1.5 MM
7547313
$2,09 Unit Price incl. VAT
3
BUSHING-CONTROL ARM;1.285
5436832
5439874
$4,19 Unit Price incl. VAT
4
CONTROL ARM WELD; REAR; LEFT
1017216067
Not Available
4
CONTROL ARM WELD; REAR; UPPER; RIGHT
1017217067
Not Available
5
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
6
A-ARM SHAFT
5135270
$26,24 Unit Price incl. VAT
7
BOLT 10 MM X 1.5 MM X 85
7518466
$9,44 Unit Price incl. VAT
8
WELD-LCA REAR LH BLK
1017154067
Not Available
8
WELD-LCA REAR RH BLK
1017155067
Not Available
9
HEX HEAD FLANGE BOLT; 1.5 MM X 130 MM
7518675
$10,49 Unit Price incl. VAT
10
SHAFT-A-ARM OUTER
5135501
5137590
$16,79 Unit Price incl. VAT
11
LOWER CONTROL ARM A ARM SHAFT
5136473
5145086
$68,24 Unit Price incl. VAT
12
CONTROL ARM BUSHING; LOWER; .75 IN
5437651
$12,59 Unit Price incl. VAT
13
TUBE-PIVOT 210.27MM
5136468
5137594
$16,79 Unit Price incl. VAT
14
A-ARM BUSHING; LONG; 102.36 MM
5436973
$9,44 Unit Price incl. VAT
15
HEX HEAD FLANGE BOLT 10MM X 1.5MM X230MM
7518472
$11,54 Unit Price incl. VAT
16
BUSHING-CONTROL ARM;1.285
5436832
5439874
$4,19 Unit Price incl. VAT

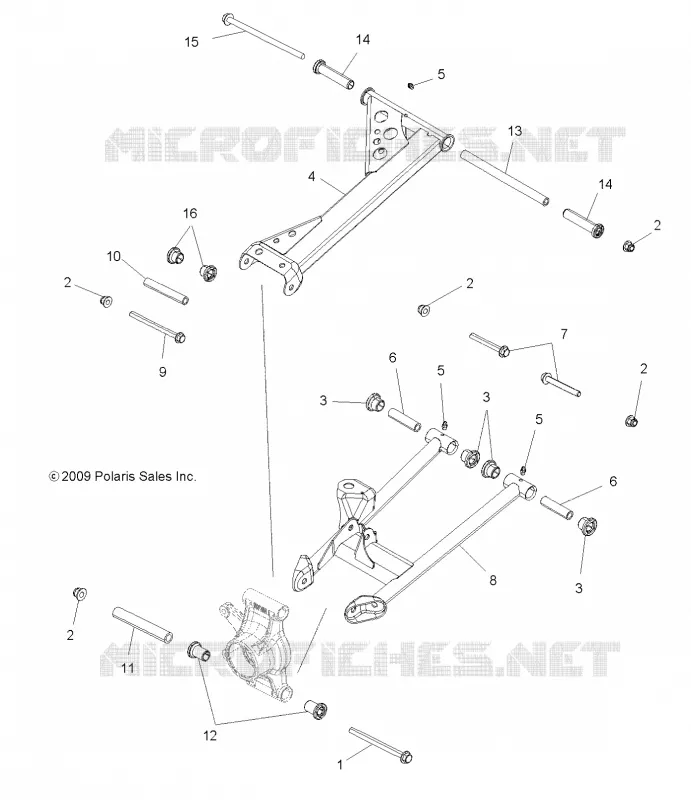

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
