RIGHT GEARCASE BRAKE MOUNTING UPDATED 5/90 (4917731773031A)
5
Parts Diagram
Parts Catalog
RIGHT HAND CHAIN COVER ASSEMBLY (4917731773030A)
by
SHIFT LINKAGE ASSEMBLY UPDATED 5/90 (4917731773038A)
RIGHT GEARCASE BRAKE MOUNTING UPDATED 5/90 (4917731773031A)
1
2
3
3
4
4
5
5
6
6
6
6
7
7
8
9
9
10
10
11
11
12
12
13
13
14
15
11
17
18
19
20
20
21
21
22
22
23
24
25
26
27
28
29
1
2
3
3
4
4
5
5
6
6
6
6
7
7
8
9
9
10
10
11
11
12
12
13
13
14
15
11
17
18
19
20
20
21
21
22
22
23
24
25
26
27
28
29
1
2
3
4
5
6
7
7
7
7
8
9
10
11
12
12
13
13
1
WASHER
7555764
9999999
Not Available
1
COVER BRAKE DISC Substituted by 5222563-067
5240117
Not Available
2
DISC BRAKE
1910021
9999999
Not Available
2
JAM NUT
5020468
9999999
Not Available
3
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
3
BOLT
7512673
$5,76 Unit Price incl. VAT
4
CALIPER ASMR.BRAKE
1910046
9999999
Not Available
4
HUB KIT
2200341
9999999
Not Available
5
TRANSMISSION(4X4)
1341066
9990000
Not Available
5
PUSHNUT BOLT
7670081
9999999
Not Available
6
TIRE R(25X12-10) Substituted by 5411408
5410566
Not Available
6
TIRE-25X11-10__MB0
5410948
9999999
Not Available
6
BOLT LOCK PLATE
5220958
9999999
Not Available
7
SHOULDER BOLT
7512701
9999999
Not Available
7
RIM VALVE
1525017
$12,59 Unit Price incl. VAT
7
BOLT SHOULDER
7512702
9999999
Not Available
8
NUT
7542714
9999999
Not Available
8
DECAL(CPSC) BRAKE SHIELD Substituted by 7075339
7072790
Not Available
9
WASHER
7555745
9999999
Not Available
9
BOLT
7515345
9999999
Not Available
10
CONE WASHER
7555796
$14,69 Unit Price incl. VAT
10
BOLT
7515472
$4,19 Unit Price incl. VAT
11
NUT LOCK
7542403
9999999
Not Available
11
CASTLE NUT
7543005
9999999
Not Available
12
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
12
COTTER PIN
7661404
$9,44 Unit Price incl. VAT
13
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
13
COVER DUST HUB
5410404
5413427
$52,49 Unit Price incl. VAT
14
CONNECTOR LINK
3225024
9999999
Not Available
15
CHAIN; DRIVE; 84P
3224047
3221193-084
$272,99 Unit Price incl. VAT
16
NUT LOCK
7542403
9999999
Not Available
17
SPROCKET; 34T
3222050
9999999
Not Available
18
SPROCKET HUB ASM.
1520170
9999999
Not Available
19
STUD 3/8-24 X 1.12
7515513
9999999
Not Available
20
O RING 1 5/16(10)
5410415
9999999
Not Available
21
AXLE SEAL; REAR
3610013
9999999
Not Available
22
BALL BEARING
3515501
$47,24 Unit Price incl. VAT
23
TUBE BEARING SPACER
5010204
9999999
Not Available
24
HOUSING AXLE
5130663
9999999
Not Available
25
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
26
SPACER BEARING
5010206
9999999
Not Available
27
SNAP RING
7710405
9999999
Not Available
28
AXLE REAR
5020789
9999999
Not Available
29
RIM REAR
1520183067
Not Available

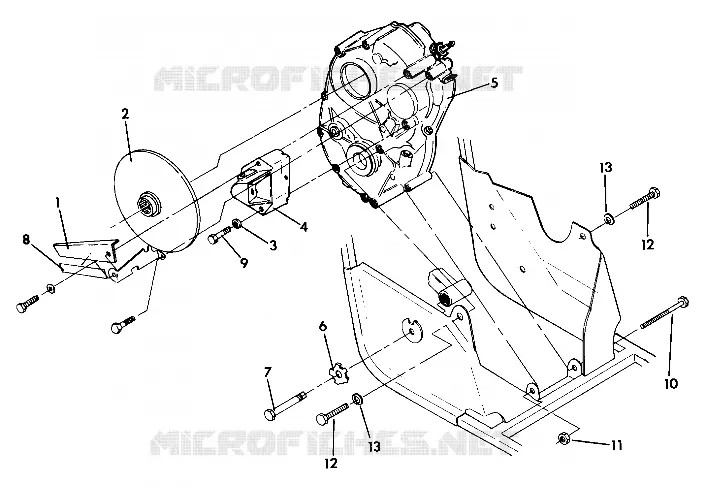

Find the detailed RIGHT GEARCASE BRAKE MOUNTING UPDATED 5/90 (4917731773031A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
