1
Engine displacement
550
2
Year
2004
3
Trim
550 TRAIL TOURING
4
Parts Catalog
EXHAUST SYSTEM
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH
by
ENGINE MOUNTING
EXHAUST SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
3
3
3
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
1
WELD-BRKT CHASSIS/RESONATOR;BK
1261296029
Not Available
2
EXHAUST SOCKET SEAL
3610047
$62,99 Unit Price incl. VAT
3
SPRING
7041687
$12,59 Unit Price incl. VAT
4
RESONATOR WELD; BLACK
1261130029
Not Available
5
WASHER
7555904
$1,56 Unit Price incl. VAT
6
EXHAUST BOOT OUTLET
5411684
9999999
Not Available
7
RIVET
7621467
$2,09 Unit Price incl. VAT
8
GASKET EXHAUST
3085714
9999999
Not Available
9
MANIFOLD BLACK (HI-TEMP)
1260981029
Not Available
10
HEX SOCKET SCREW
7517555
$15,74 Unit Price incl. VAT
11
HEX SOCKET SCREW; 3/8; 16 X 1 1/4
7517935
$4,19 Unit Price incl. VAT
12
FLANGED NUT; 3/8-16
7547180
$4,19 Unit Price incl. VAT
13
CHASSIS/PIPE BRACKET
5245498
9999999
Not Available
14
WASHER
7556004
$13,64 Unit Price incl. VAT
15
VIBRATION DAMPENER WITH RIBS
5411576
$13,64 Unit Price incl. VAT
16
WELD-TUNED PIPE;BLK
1261228029
Not Available
17
SPRING
7042029
$10,49 Unit Price incl. VAT
18
RIVET
7661637
$2,09 Unit Price incl. VAT

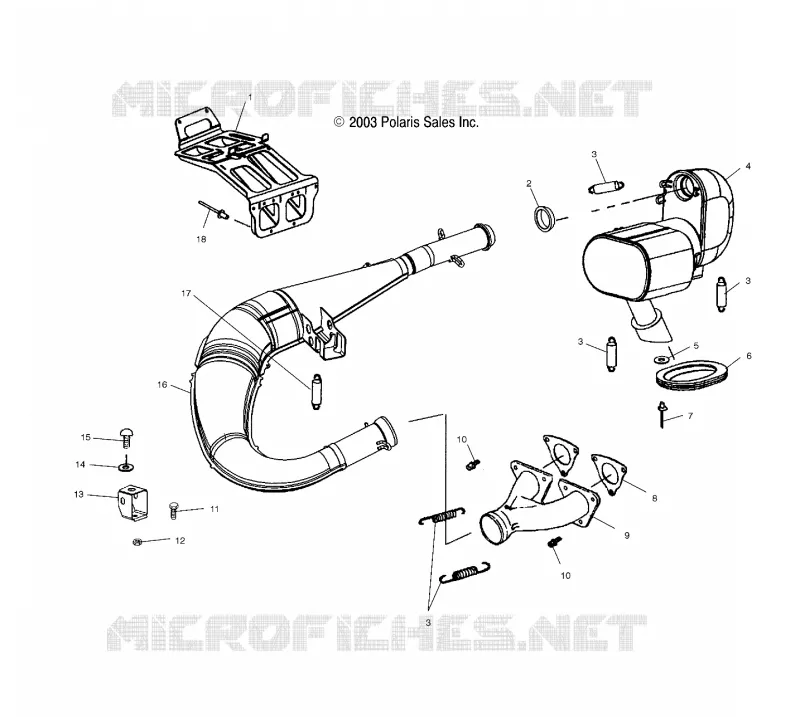

Find the detailed EXHAUST SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
