1
Engine displacement
autre
2
Year
1994
3
Trim
XLT - 0940767
4
Parts Catalog

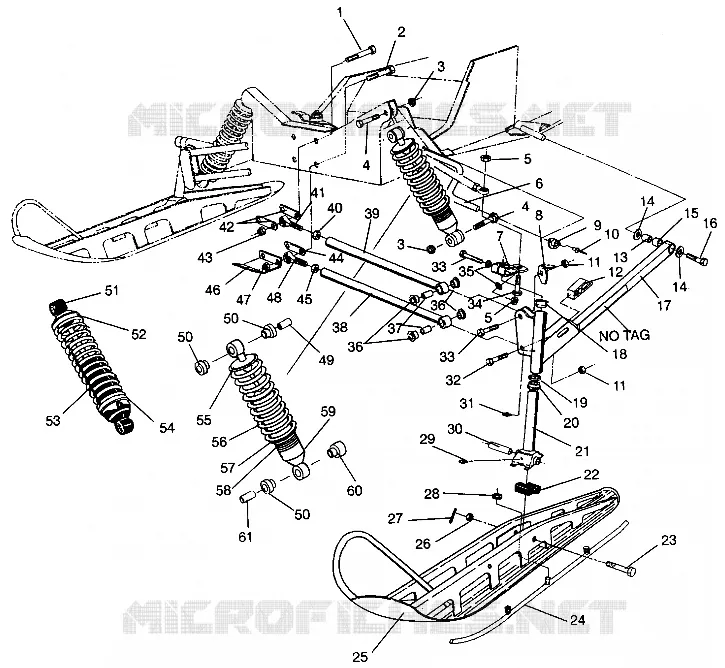

FRONT SUSPENSION AND SKI XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502011A)
5
Parts Diagram
Parts Catalog
HOOD
by
CHAINCASE ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502017A)
FRONT SUSPENSION AND SKI XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502011A)
1
2
3
3
4
4
5
5
6
6
6
6
6
6
6
6
6
7
8
8
8
8
9
9
9
9
10
11
11
12
12
12
12
13
14
14
15
16
17
17
17
17
18
19
20
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
36
37
38
38
38
38
39
39
39
39
40
41
42
43
44
45
46
47
48
49
50
50
50
51
52
53
54
55
56
57
58
59
59
59
59
60
61
1
2
3
3
4
4
5
5
6
6
6
6
6
6
6
6
6
7
8
8
8
8
9
9
9
9
10
11
11
12
12
12
12
13
14
14
15
16
17
17
17
17
18
19
20
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
36
37
38
38
38
38
39
39
39
39
40
41
42
43
44
45
46
47
48
49
50
50
50
51
52
53
54
55
56
57
58
59
59
59
59
60
61
1
2
3
3
4
4
5
5
6
6
6
6
6
6
6
6
6
7
8
8
8
8
9
9
9
9
10
11
11
12
12
12
12
13
14
14
15
16
17
17
17
17
18
19
20
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
36
37
38
38
38
38
39
39
39
39
40
41
42
43
44
45
46
47
48
49
50
50
50
51
52
53
54
55
56
57
58
59
59
59
59
60
61
1
BOLT
7512551
9999999
Not Available
2
BOLT
7512656
9999999
Not Available
3
NUT; NYLOC
7542453
7542439
$2,09 Unit Price incl. VAT
4
BOLT(10)
7515515
9999999
Not Available
5
NUT; FLEXLOC B
7542456
9999999
Not Available
6
BAR SWAY BLACK
5224237067
Not Available
6
BAR SWAY 9/16 BLK.
5224476067
Not Available
6
BAR; SWAY; (BLK.)
5224240067
Not Available
7
STEERING ARM
5220326067
Not Available
8
STOP STRNG RH BLK.
5220238067
Not Available
8
STOP STRNG LH BLK.
5220237067
Not Available
9
BUSHING-SWAYBAR
5410383
9999999
Not Available
9
SWAY BAR BUSHING
5410386
9999999
Not Available
10
RIVET
7621433
$2,09 Unit Price incl. VAT
11
NUT; FLEXLOC
7542452
7542411
$6,29 Unit Price incl. VAT
12
SLIDE (FR.SUSP.)
5410385
9999999
Not Available
12
SLIDE-SWAYBAR
5410384
9999999
Not Available
13
PIVOT-TRAILING ARM
5410382
9999999
Not Available
14
WASHER
7555721
$2,09 Unit Price incl. VAT
15
TUBE TRAILING ARM
5010187
9999999
Not Available
16
BOLT
7512557
9999999
Not Available
17
ARMTRLGLHBLK.
1822053067
Not Available
17
ARMTRLGRHBLK.
1822052067
Not Available
18
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
19
BUSHING
7556509
$3,14 Unit Price incl. VAT
20
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
21
SPINDLE BLK.
6230073067
Not Available
21
SPINDLE BLK HARDENED
6230075067
Not Available
22
STOP-RUBBER
5521094
9999999
Not Available
23
SCREW
7515462
9999999
Not Available
24
SKAG PR.3 CARBIDE(STEEL SKI)
2870693
$99,74 Unit Price incl. VAT
25
SKI WELD BLK
1820332067
Not Available
26
NUT; CASTLE
7542457
7542438
$3,14 Unit Price incl. VAT
27
PIN; COTTER
7661209
7661205
$1,56 Unit Price incl. VAT
28
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
29
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
30
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
31
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
32
BOLT
7515492
7515540
$9,44 Unit Price incl. VAT
33
BOLT
7515491
7515433
$3,14 Unit Price incl. VAT
34
SUBSTITUTED BY 7512404
7515490
$7,34 Unit Price incl. VAT
35
WASHER
7555851
7555832
$4,19 Unit Price incl. VAT
36
BUSH; RADIUS ROD PIVOT; OUT
5431486
9999999
Not Available
37
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
38
ROD RAD.LOW.
1822123067
Not Available
38
ROD RAD.LOW.(STORM)
1822102067
Not Available
39
ROD RAD.UPPER(STORM)
1822099067
Not Available
39
ROD RAD.UP.
1822121067
Not Available
40
NUT JAM(10)
7542520
9999999
Not Available
41
ROD END; RH
7060155
9999999
Not Available
42
STRAP SPACER TOP
5211344
$13,64 Unit Price incl. VAT
43
NUT FLEXLOCK
7542503
9999999
Not Available
44
STRAP SPACER BOTTOM
5211345
9999999
Not Available
45
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
46
BRACE PAN
5223997067
Not Available
47
NUT FLEXOC;
7542703
9999999
Not Available
48
ROD END;RH
7060156
7061071
$99,74 Unit Price incl. VAT
49
BUSHING 1.16 IN
5020613
9999999
Not Available
50
BUSHING SHOCK .220
5431540
9999999
Not Available
51
SHOCKFR.SUSP.
7041285
9999999
Not Available
52
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
53
COMPRESSION SPRING
7041261067
Not Available
54
RETAINER SPRING
5210953
$11,54 Unit Price incl. VAT
55
SPRING RETAINER; SLOTTED
5020618
$36,74 Unit Price incl. VAT
56
SPRING (BLK.) IFS COMP.
7041252067
Not Available
57
RING RETAINING(10)
7710424
9999999
Not Available
58
RETAINER; SPRING BODY
5020617
9999999
Not Available
59
SHOCK GAS RH (IFS-IFP)
7041292
9999999
Not Available
59
SHOCK GAS LH (IFS-IFP) (SP)
7041291
Not Available
60
BUSHING SHOCK .400 (SP)
5431543
Not Available
61
BUSHING (1.34 IN.)
5020612
9999999
Not Available

Find the detailed FRONT SUSPENSION AND SKI XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502011A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for XLT - 0940767

SEAT GAS TANK ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502003A)

SEAT GAS TANK ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502003A)

for XLT - 0940767 from 1994

CONSOLE XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502004A)

CONSOLE XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502004A)

for XLT - 0940767 from 1994

NOSEPAN ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502005A)

NOSEPAN ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502005A)

for XLT - 0940767 from 1994

NOSEPAN ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502006A)

NOSEPAN ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502006A)

for XLT - 0940767 from 1994

STEERING

STEERING

for XLT - 0940767 from 1994

STEERING ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502014A)

STEERING ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502014A)

for XLT - 0940767 from 1994

COOLING SYSTEM XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502015A)

COOLING SYSTEM XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502015A)

for XLT - 0940767 from 1994

BRAKE XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502016A)

BRAKE XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502016A)

for XLT - 0940767 from 1994

REAR TORQUE ARM XLT 0940767, XLT SP 0930667 XLT SKS 0940567 (4925022502024A)

REAR TORQUE ARM XLT 0940767, XLT SP 0930667 XLT SKS 0940567 (4925022502024A)

for XLT - 0940767 from 1994

DRIVE CLUTCH ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502025A)

DRIVE CLUTCH ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502025A)

for XLT - 0940767 from 1994

ENGINE MOUNTING XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502027A)

ENGINE MOUNTING XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502027A)

for XLT - 0940767 from 1994

EXHAUST SYSTEM XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502028A)

EXHAUST SYSTEM XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502028A)

for XLT - 0940767 from 1994

FOX SHOCK, GAS

FOX SHOCK, GAS

for XLT - 0940767 from 1994

CRANKCASE ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502034A)

CRANKCASE ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502034A)

for XLT - 0940767 from 1994

CYLINDER XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502035A)

CYLINDER XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502035A)

for XLT - 0940767 from 1994

WATER PUMP XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502036A)

WATER PUMP XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502036A)

for XLT - 0940767 from 1994

MAGNETO ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502041A)

MAGNETO ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502041A)

for XLT - 0940767 from 1994

RECOIL STARTER ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502042A)

RECOIL STARTER ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502042A)

for XLT - 0940767 from 1994

DRIVEN CLUTCH ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502C002)

DRIVEN CLUTCH ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502C002)

for XLT - 0940767 from 1994

TUNNEL ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502001A)

TUNNEL ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502001A)

for XLT - 0940767 from 1994

HOOD ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502007A)

HOOD ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502007A)

for XLT - 0940767 from 1994

DECALS XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502009A)

DECALS XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502009A)

for XLT - 0940767 from 1994

HOOD

HOOD

for XLT - 0940767 from 1994

FRONT SUSPENSION AND SKI XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502011A)

FRONT SUSPENSION AND SKI XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502011A)

for XLT - 0940767 from 1994

CHAINCASE ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502017A)

CHAINCASE ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502017A)

for XLT - 0940767 from 1994

DRIVE TRAIN ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502018A)

DRIVE TRAIN ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502018A)

for XLT - 0940767 from 1994

SUSPENSION ASSEMBLY XLT 0940767 XLT SKS 0940567 (4925022502019A)

SUSPENSION ASSEMBLY XLT 0940767 XLT SKS 0940567 (4925022502019A)

for XLT - 0940767 from 1994

SUSPENSION ASSEMBLY XLT SP 0940667 (4925022502021A)

SUSPENSION ASSEMBLY XLT SP 0940667 (4925022502021A)

for XLT - 0940767 from 1994

FRONT TORQUE ARM XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502023A)

FRONT TORQUE ARM XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502023A)

for XLT - 0940767 from 1994

OIL TANK/AIR BOX XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502029A)

OIL TANK/AIR BOX XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502029A)

for XLT - 0940767 from 1994

MASTER CYLINDER XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502030A)

MASTER CYLINDER XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502030A)

for XLT - 0940767 from 1994

FOX SHOCK

FOX SHOCK

for XLT - 0940767 from 1994

FOX SHOCK, GAS

FOX SHOCK, GAS

for XLT - 0940767 from 1994

PISTON CRANKSHAFT XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502037A)

PISTON CRANKSHAFT XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502037A)

for XLT - 0940767 from 1994

CARBURETOR XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502038A)

CARBURETOR XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502038A)

for XLT - 0940767 from 1994

FUEL PUMP XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502039A)

FUEL PUMP XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502039A)

for XLT - 0940767 from 1994

OIL PUMP ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502040A)

OIL PUMP ASSEMBLY XLT 0940767, XLT SP 0940667 XLT SKS 0940567 (4925022502040A)

for XLT - 0940767 from 1994

POLARIS XLT - 0940767 1994

XLT - 0940767

XLT - 0940767

Model : OTHERS

Engine capacity : autre

Year : 1994

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
