BATTERY BOX SL 700 B964066 AND INTL. SL 700 I964066 (4935633563B006)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING SL 700 B964066 AND INTL. SL 700 I964066 (4935633563B001)
by
AIR VENT SL 700 B964066 AND INTL. SL 700 I964066 (4935633563B007)
BATTERY BOX SL 700 B964066 AND INTL. SL 700 I964066 (4935633563B006)
1
COVER BATTERY
5710037
9999999
Not Available
2
CABLE BLK BATT/ENG.
4010080
Not Available
3
BOLT BATT KIT(10)
2200619
9999999
Not Available
4
BATTERY 19AMP(MARINE)
4140009
9999999
Not Available
5
CONNECTOR
7052078
9999999
Not Available
6
GROMMET VENT
5410682
9999999
Not Available
7
CABLE TIE4 INCH
7080483
9999999
Not Available
8
TUBE VENT
5432121
9999999
Not Available
9
BRKT STRAP SHORT
5222739
Not Available
10
BOLT(10)
7512043
9999999
Not Available
11
TRAY BATTERY
5431559
9999999
Not Available
12
HOOK; D;SST/SS;(10)
5224472
9999999
Not Available
13
STRAP RUBBER
5410853
9999999
Not Available

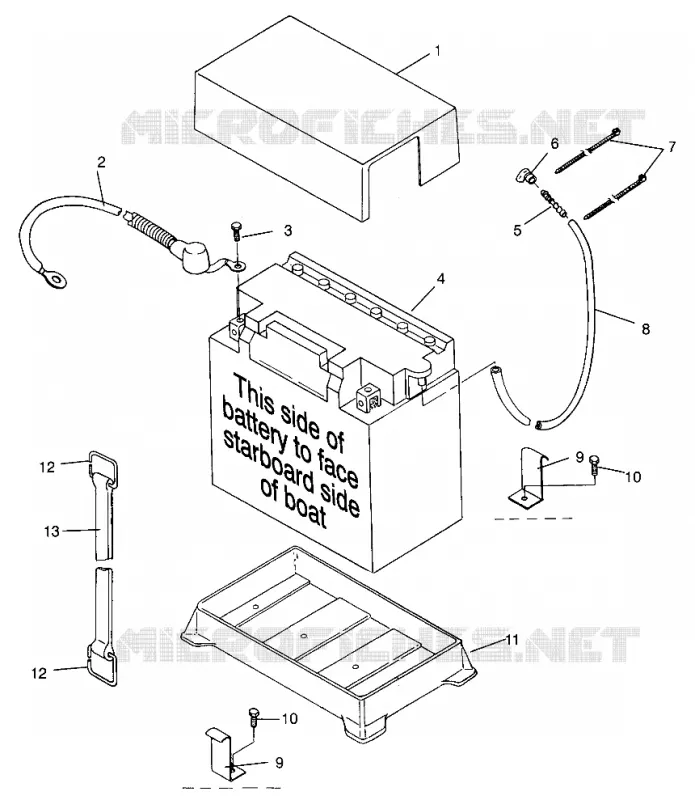

Find the detailed BATTERY BOX SL 700 B964066 AND INTL. SL 700 I964066 (4935633563B006) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
