1
Engine displacement
700
2
Year
2002
3
Trim
700 XC SP M-10 F/O
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
EXHAUST
by
CRANKCASE
ENGINE MOUNTING
1
SCREW M14X1.5X215
7517501
7518412
$52,49 Unit Price incl. VAT
2
WASHER
7556003
$11,54 Unit Price incl. VAT
3
WASHER CLUTCH RET.
5131872
5132441
$41,99 Unit Price incl. VAT
4
KIT-SHT BLK S70-70-02
2201934
9990000
Not Available
5
SPARK PLUG
3070190
$7,34 Unit Price incl. VAT
6
CONDUIT FLEX(.75ID)
552139813
Not Available
7
WASHER(10)
7555944
9999999
Not Available
8
RING-E RET.
7710427
9999999
Not Available
9
HANDLE RECOIL
5431499
9999999
Not Available
10
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
11
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
12
STRAP-ENGINE MOUNT;S80;LH
5245462
9999999
Not Available
12
STRAP-ENGINE MOUNTS80RH
5245475
9999999
Not Available
13
MOUNT-ENGINE 3/8-16 50 DUR
3021290
9999999
Not Available
14
BOLT
7512539
$7,34 Unit Price incl. VAT
15
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
16
FLANGED NUT; 3/8-16
7547180
$4,19 Unit Price incl. VAT
17
MOUNT-ENGINE 3/8-16
3021220
9999999
Not Available
18
BRKT-ENGINE MOUNT;RH;FORMED
5245044
9999999
Not Available
19
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
20
FLEX LOCK; NUT
7547008
$11,54 Unit Price incl. VAT
21
WELD-ENG MOUNT BRKT;LH
1013397
9999999
Not Available
22
SCR-3/8-16X1-P30-SPEC-Y
7517854
$10,49 Unit Price incl. VAT
23
ENGINE MOUNT
3021206
9999999
Not Available
24
THROTTLE CABLE; 40 MM
7080897
9999999
Not Available
25
PUMP-FUEL MIK 62 5/16 XC B/BLK
2520260
9999999
Not Available
26
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
27
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
28
CONVOLUTED TUBING-68236 40 CM
836005840
Not Available
29
FUEL LINE; 1/4 ID
84500031525
Not Available
30
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
31
FUEL LINE ETHER RED 5/16# Substituted by 8350017-160
8350017600
Not Available
32
VLV FUEL SHUTOFF 5/16 ID
7052268
9999999
Not Available
33
TUBING-CONVOLUTED .50ID 25CM
836005225
Not Available
34
FUEL LINE; 600 CM
8450040600
Not Available
35
TUBING-CONVOLUTED .50ID 25CM
836005225
Not Available

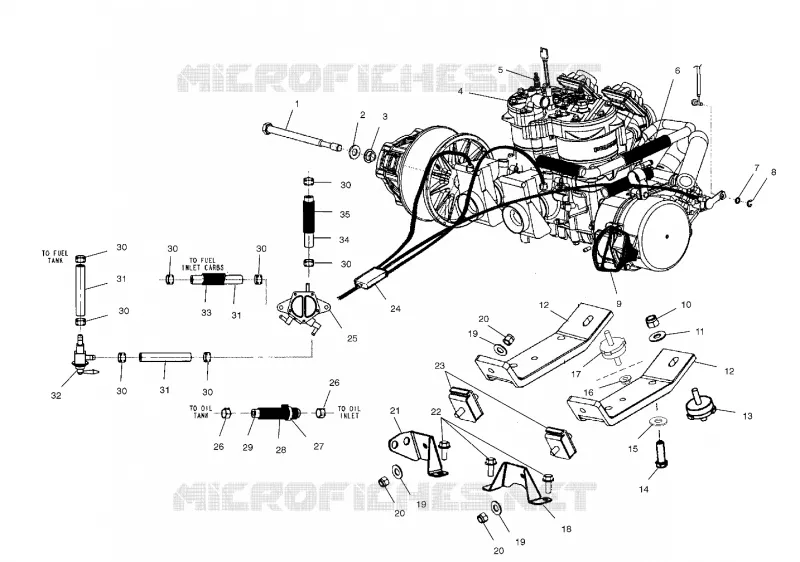

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
