1
Engine displacement
autre
2
Year
2015
3
Trim
2880927 - BRUTUS GRAPPLE KIT
4
Parts Catalog
MOWER FRAME, BELT, PULLEY BLADES
5
Parts Diagram
Parts Catalog
MOWER DRIVE SHAFT
by
MOWER GEARBOX
MOWER FRAME, BELT, PULLEY BLADES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
1
2
2
2
3
4
4
4
5
6
7
8
9
9
9
10
11
12
13
14
15
16
16
17
17
17
17
18
19
20
21
22
23
24
25
25
25
26
27
27
27
28
29
30
31
32
32
32
33
34
34
34
35
35
35
36
36
36
37
37
37
38
38
38
39
39
39
40
40
40
41
42
43
44
45
46
1
MOWER 66 INCH FRONT MOUNT [INCL. 2-41 AND 2-46 FROM FRAME BELT PULLEYE AND BLADE]
3120216
Not Available
2
CAP-SPINDLE
3120376
9999999
Not Available
3
MOWER SPINDLE
3120380
9999999
Not Available
4
PULLEY-MOWER
3120385
9999999
Not Available
5
U-BOLT
3120390
9999999
Not Available
6
MOWER BELT
3120393
$241,49 Unit Price incl. VAT
7
SPRING
3120394
9999999
Not Available
8
PULLEY-IDLER
3120395
9999999
Not Available
9
MOWER BLADE
3120396
$68,24 Unit Price incl. VAT
10
TUBE-TENSIONER
3120397
9999999
Not Available
11
PULLEY-DRIVE
3120386
9999999
Not Available
12
GEARBOX
3120391
9999999
Not Available
13
HUB
3120392
9999999
Not Available
14
BRACKET
3120398
9999999
Not Available
15
BRACKET
3120399
9999999
Not Available
16
BOLT
3120554
9999999
Not Available
17
KEY
3120589
9999999
Not Available
18
MOUNT-TENSIONER
3120400
9999999
Not Available
19
BRACE-TENSIONER
3120401
9999999
Not Available
20
NUT-INDICATOR ASSY
3120410
9999999
Not Available
21
NUT-INDICATOR ASSY
3120411
9999999
Not Available
22
FRAME-MAIN ASSY
3120506
9999999
Not Available
23
DRIVE SHAFT
3120508
$1 401,74 Unit Price incl. VAT
24
JET PILOT #42.5
3130526
$62,99 Unit Price incl. VAT
25
BOLT
3120545
$10,49 Unit Price incl. VAT
26
SNAP RING
3120549
9999999
Not Available
27
SHIELD
TBD
Not Available
28
BOLT
3120566
9999999
Not Available
29
BOLT
3120567
9999999
Not Available
30
SCREW
3120585
$19,94 Unit Price incl. VAT
31
NUT 5
3120607
9999999
Not Available
32
NUT
3120604
9999999
Not Available
33
NUT
3120609
$9,44 Unit Price incl. VAT
34
HUB-SPINDLE
3120381
9999999
Not Available
35
SPACER
3120383
9999999
Not Available
36
BEARING
3120384
9999999
Not Available
37
BOLT
3120387
9999999
Not Available
38
SHAFT-SPINDLE
3120388
9999999
Not Available
39
BEARING
3120416
9999999
Not Available
40
BOLT
3120556
$10,49 Unit Price incl. VAT
41
NUT 5
3120577
9999999
Not Available
42
NUT 5
3120603
$7,34 Unit Price incl. VAT
43
NUT
3120582
9999999
Not Available
44
WASHER
3120220
9999999
Not Available
45
BOLT 5
3120534
9999999
Not Available
46
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

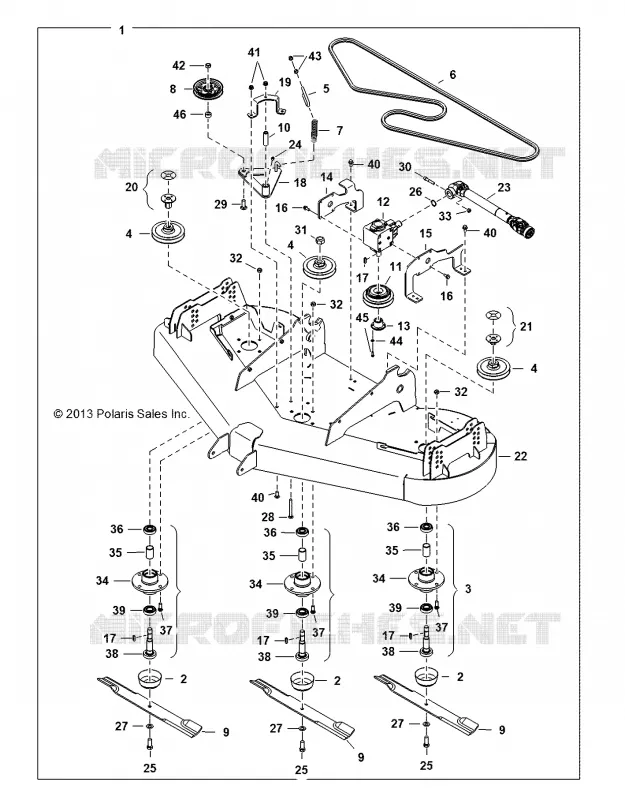

Find the detailed MOWER FRAME, BELT, PULLEY BLADES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
